Iridium LT-4100S (GMDSS), up to 500m antenna cable

8.390,00

Delivery time: 1 - 2 Weeks

Iridium LT-4100S (GMDSS)

Availability: Only 1 left in stock

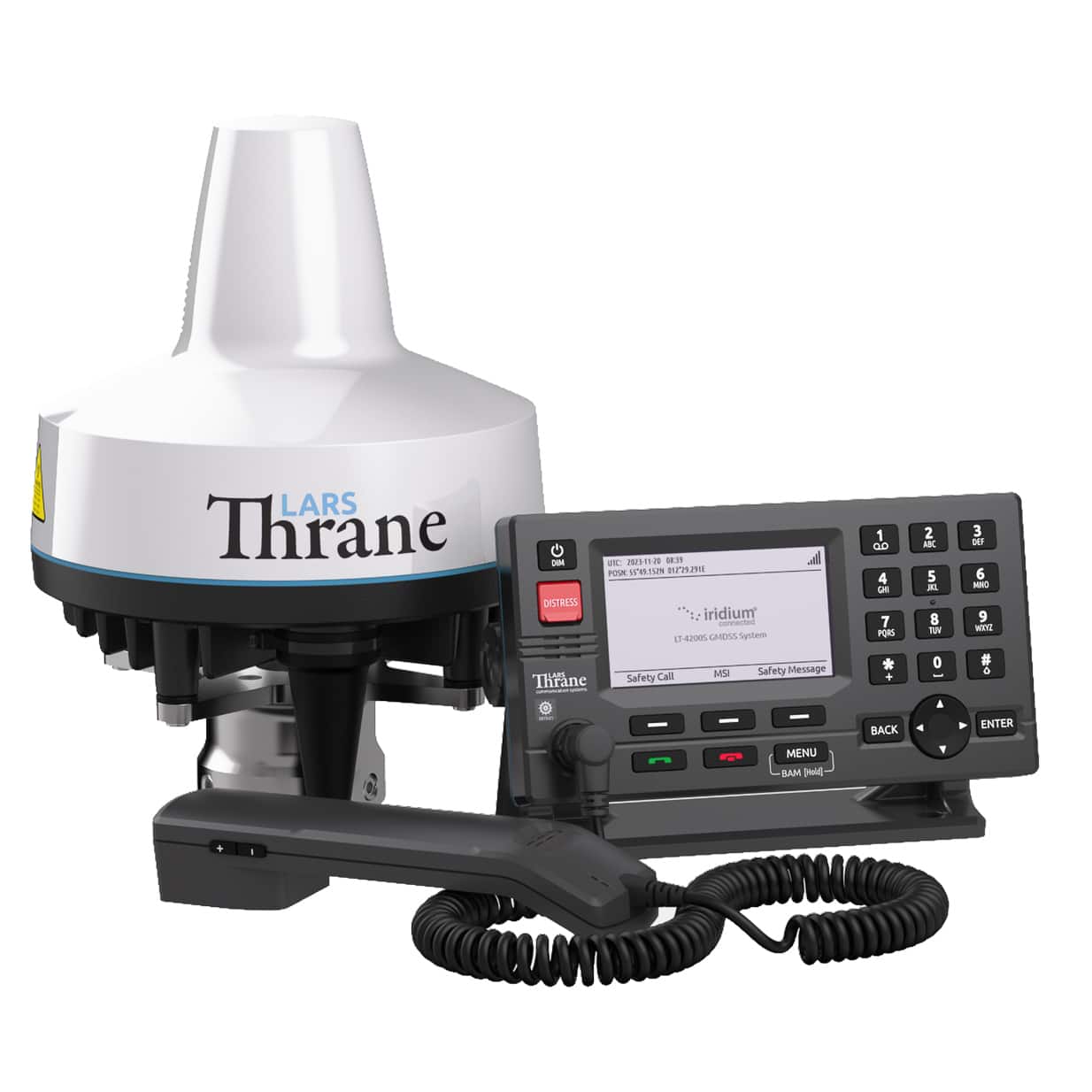

The LT-4100S satellite phone system from Lars Thrane supports Iridium Certus Maritim 100 data service, GMDSS maritime emergency services and is designed for permanent installation on vessels. The robust and high-quality design predestines the device for demanding use at and for long-term emergency communication on sea. LT-4100S offers Distress Alert, Safety Voice, and Maritime Safety Information (MSI) as well as Ship Security Alert System (SSAS) and Long Range Identification & Tracking (LRIT), in addition contemporary options for connecting smartphones or telephone systems. Last but not least, the unusually long maximum cable lengthof 500 m for satellite antennas distinguishes the LT-4100S for flexible installation in a wide variety of situations.

Features

  • 2 SIP voice lines
  • Support external SIP PABX and up to 8 SIP handsets or softphones (SIP app on smartphone)
  • POTS through ATA (Analogue Telephone Adaptor)
  • Data 88 kbps download / 22 kbps upload
  • High quality microphone, speaker, and equalizer for improved audio performance
  • Voice prompt audio feedback
  • Large 4.3” TFT-LCD display, day and night modes
  • Web user interface for configuration and maintenance
  • Firewall and user authentication, port forwarding, remote access (option)
  • Combined SAT / GNSS (GPS) single antenna cable
  • Support external LAN Wi-Fi Access Points
  • Supports Iridium Chat app
  • 2 years warranty

GMDSS key features

  • SOLAS GMDSS Approved (Sea Areas A1, A2, and A3), s. additional accessories LT-3140S
  • Maritime Safety Information (MSI)
  • Ship Security Alert System (SSAS), s. additional accessories LT-3140S
  • Support for external alarm panels
  • Support for GMDSS printer, s. additional accessories LT-3160S
  • Support for Bridge Alert Management (BAM)
  • Provides Long Range Identification and Tracking (LRIT) via foloowing third-party services
    – CLS (lrit.testing@fulcrum-maritime.com)
    – PoleStar (lrittesting@polestarglobal.com)

For telephone usage you need a Iridium Certus GMDSS Postpaid SIM card for a Certus GMDSS contract for sea based usage.

Shore based usage via Iridium Certus Land is definitely not allowed.

Required accessories for LT-4100S

Optional accessories for LT-4100S

Data connection
  • Standard IP 88 kbps download / 22 kbps upload
Interface and connectors
  • 1x RJ45 Ethernet LAN for data, SIP voice calls, service and maintenance
  • 1x RS422 (10 pin) supporting external ringer and radio silence
  • Connector for handset
  • Antenna connectors Terminal N female Antenna N female
Power supply and consumption
  • Input 12 - 24 VDC (2.0 - 1.0 A)
  • Transmit 34 W max. Standby   12 W
Dimensions and weight
  • Control unit Weight 0.67 kg Dimensions 224 x 120 x 70 mm
  • Handset Weight 0.30 kg Dimensions 209 x 53 x 38 mm
  • Antenna Weight 1.39 kg Dimensions Ø 162 mm x 182 mm
Environment
  • Control unit Protection IP32 Operational temp. -15°C to +55°C
  • Handset Protection IP32 Operational temp. -15°C to +55°C
  • Antenna Protection IP67 Operational temp. -40°C to +55°C
  • LT-4110S Control Unit
  • LT-3120 Handset
  • LT-3121 Cradle
  • LT-4130 Antenna Unit (Maritime)
  • Bracket Mount for Control Unit
  • 3m DC power cable (4 pin)
  • User & Installation Manual
  • Unit Test Sheets
  • 2 year warranty
Stock Keeping Unit1940
Weight8,3000 kg
Dimensions50 × 34 × 30 cm
HS-Code85171200
Country of manufactureDenmark
MPN90-104506
Manufacturer information

Manufacturer according to General Product Safety Regulation (EU) 2023/988:
LARS THRANE A/S
Skovlytoften 33
DK-2840 Holte
Denmark
Tel: +45-88301000
email: company@thrane.eu
