Home / Modems, Terminals / Iridium / Thales MissionLINK 700 (Iridium Certus Land)

Thales MissionLINK 700 (Iridium Certus Land)

8.350,00

Delivery time: 1 - 2 working days

Satellite transceiver for mainland use

Thales MissionLINK was developed for land based data communication as 3 simultaneous VoIP connections for the new Iridium NEXT network. The Iridium Certus Land and Maritime service is actually not available in Russia.

Features

  • Standard IP Data up to 704 kbps download and 352 kbps upload
  • Streaming IP Data up to 256 kbps
  • 3 simultaneous voice lines via in-built SIP server
  • Voice mailbox, no call forwarding supported by Iridium Certus
  • WiFi multiuser capability up to 3 devices, Android und iOS Apps
  • Built-in traffic filter blacklist  (domain) / whitelist  (domain) / port blocking
  • Tracking (Location Services) supported by GNSS: GPS, deliverd to any platform
  • VSAT / 4G LTE ready
  • API and command set for secure remote management by Partners
  • Multi language interface
    (English, French, German, Russian, Spanish)
  • 2 year warranty

Scheduled Features

  • PTT ready (Iridium Push-To-Talk)
  • SBD service

For usage of the MissionLINK an Iridium Certus Land SIM card and subscription is required.

Optional accessories

Connection, data transfer
  • Standard IP data rate up to 704 kbps download, 352 kbps upload
  • 3x Voice line

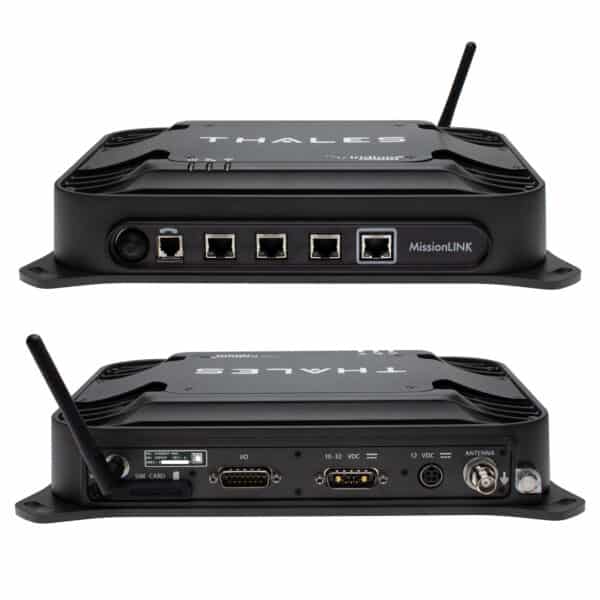

Interfaces
  • 1x RJ-45 Ethernet WAN 3x RJ-45 LAN PoE class 2, up to 6.5 W available at the connected device, supports up to 100m Cat-5 or Cat-6 Ethernet cable
  • 1x RJ-14 POTS
  • WiFi 802.11 b/g
  • GPIO (RS-232, DISTRESS)
  • TNC female antenna connector
  • SMA reverse for WiFi antenna
Power supply
  • Input 11 - 32 VDC
  • 12 VDC, 10A max.
  • Nominal (Standby) 40 W
  • Transmit 56 W
  • Max. 120 W (terminal boot)
  • incl. powering external HGA-2 antenna
Dimensions and weight
  • Weight Terminal    3.2 kg Antenna     2.8 kg
  • Dimensions Terminal     305 x 229 x 76 mm Antenna Ø 356 x 102 mm
Environment
  • Ingress protection Antenna IP66 Terminal IP31
  • Vibration, shock MIL-STD-810G
  • Operating temperature antenna  -30°C to +55°C

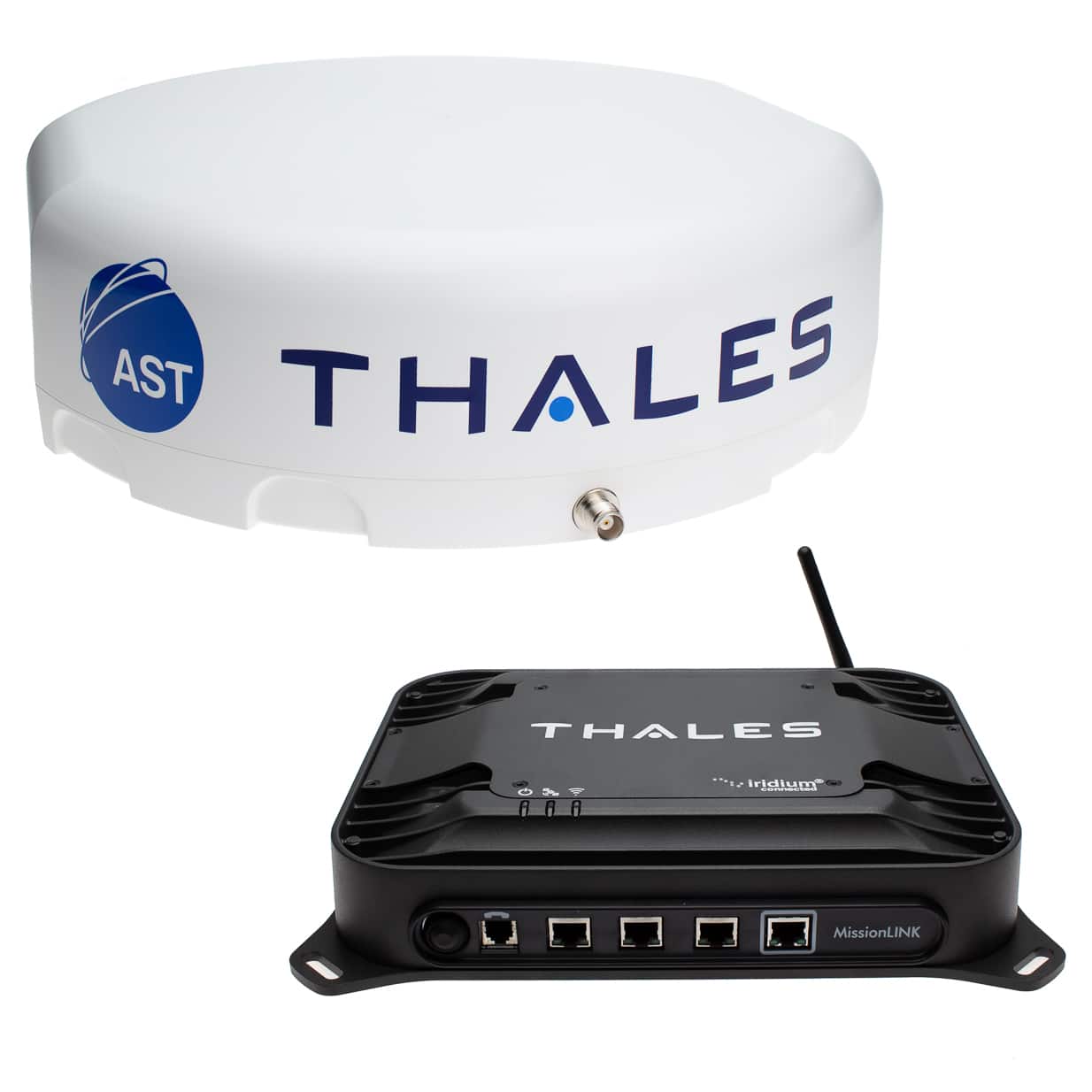

  • Thales MissionLINK Terminal

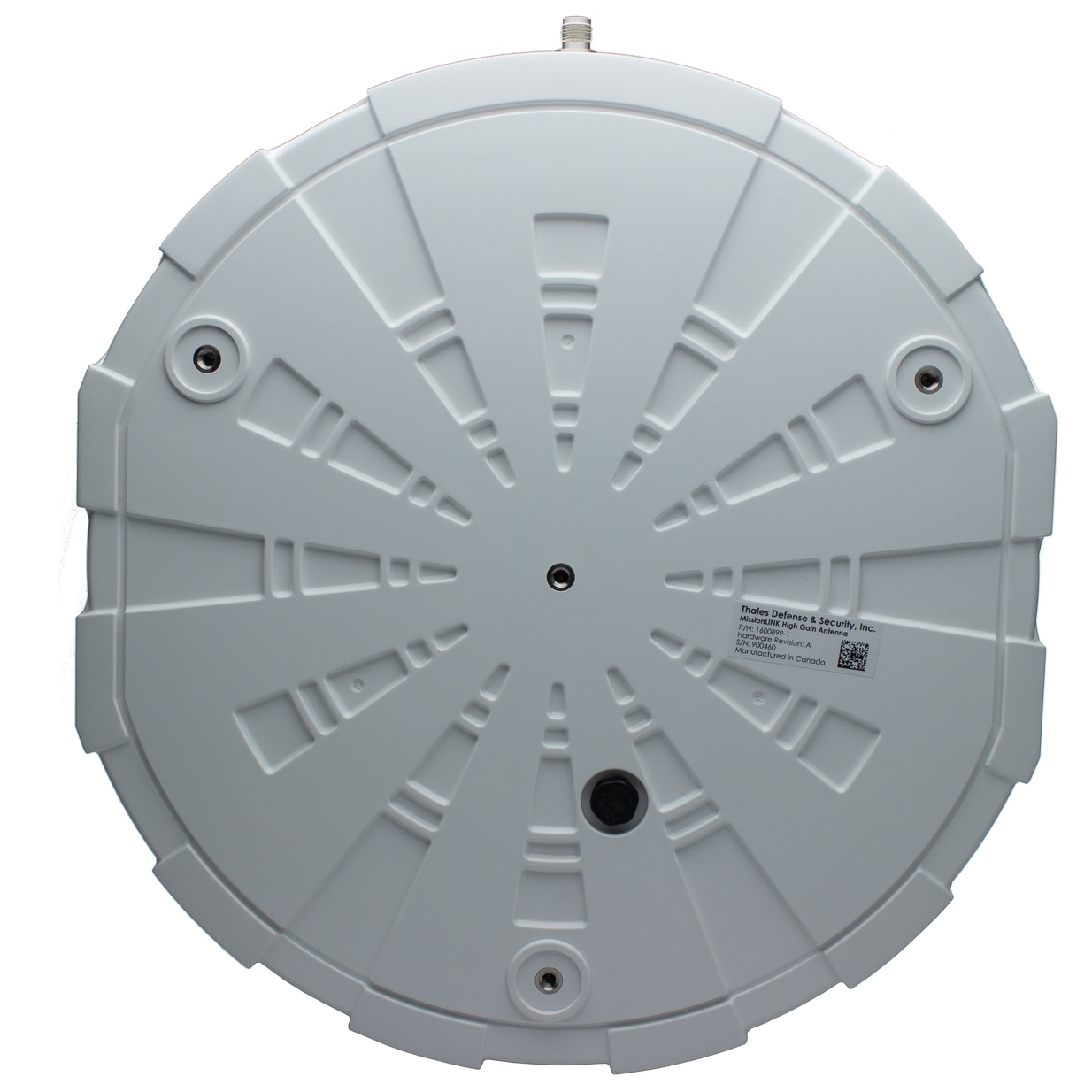

  • Hardware Land Broadband Active Antenna (BAA)

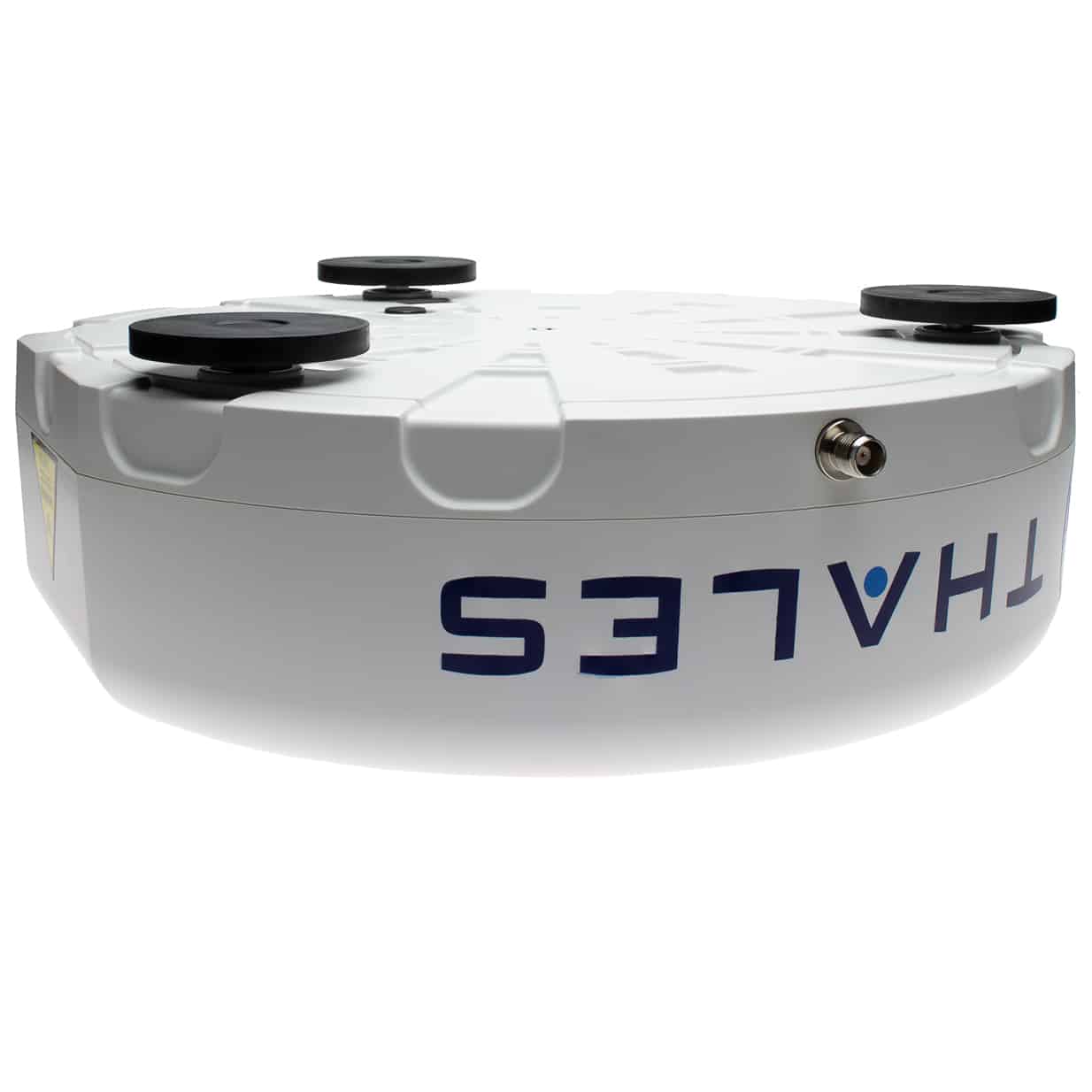

  • Antenna magnetic mount

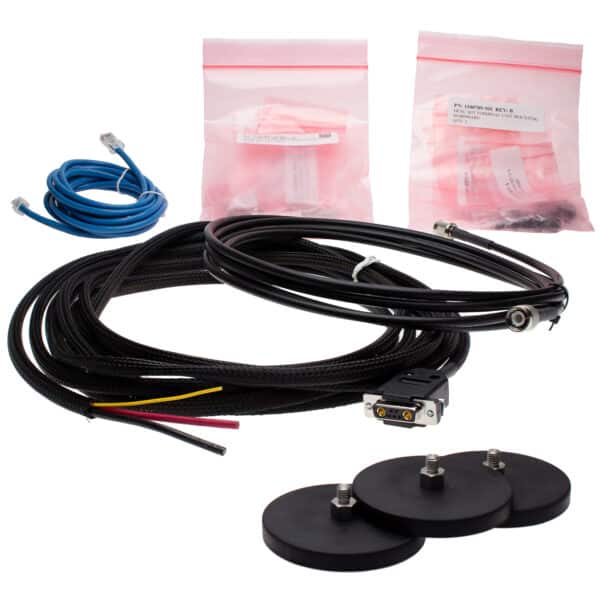

  • Mounting hardware kit for antenna and terminal
  • WiFi Antenna 2.4 GHz Dipole 2dBi Rev Pol SMA 50 OHM
  • 3,5 m antenna cable TNCm-TNCm, LMR-240
  • 3.5 m Ethernet cable Cat-5e Patch RJ45M-RJ-45M Blue
  • 1m DC power cable with flying leads
  • Template for terminal unit mount
  • Template for land antenna mount

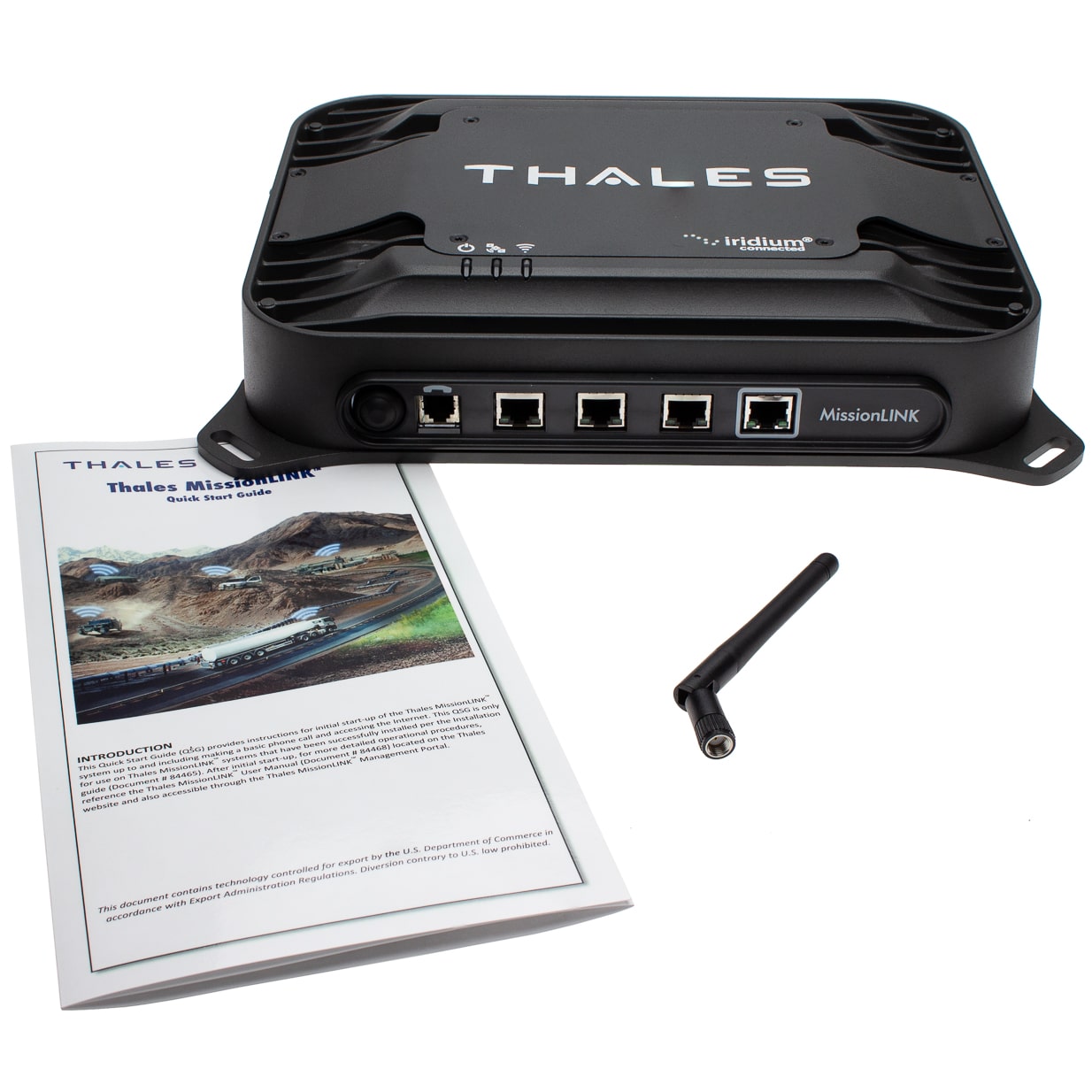

  • MissionLINK Quick Start Guide (QSG)
Stock Keeping Unit2007
Weight10,6300 kg
Dimensions45 × 45 × 38 cm
HS-Code85176200
MPNMF350BV
