Iridium Edge SBD data modem

559,00

Delivery time: 1 - 2 Weeks

SBD modem for small and limited message sizes

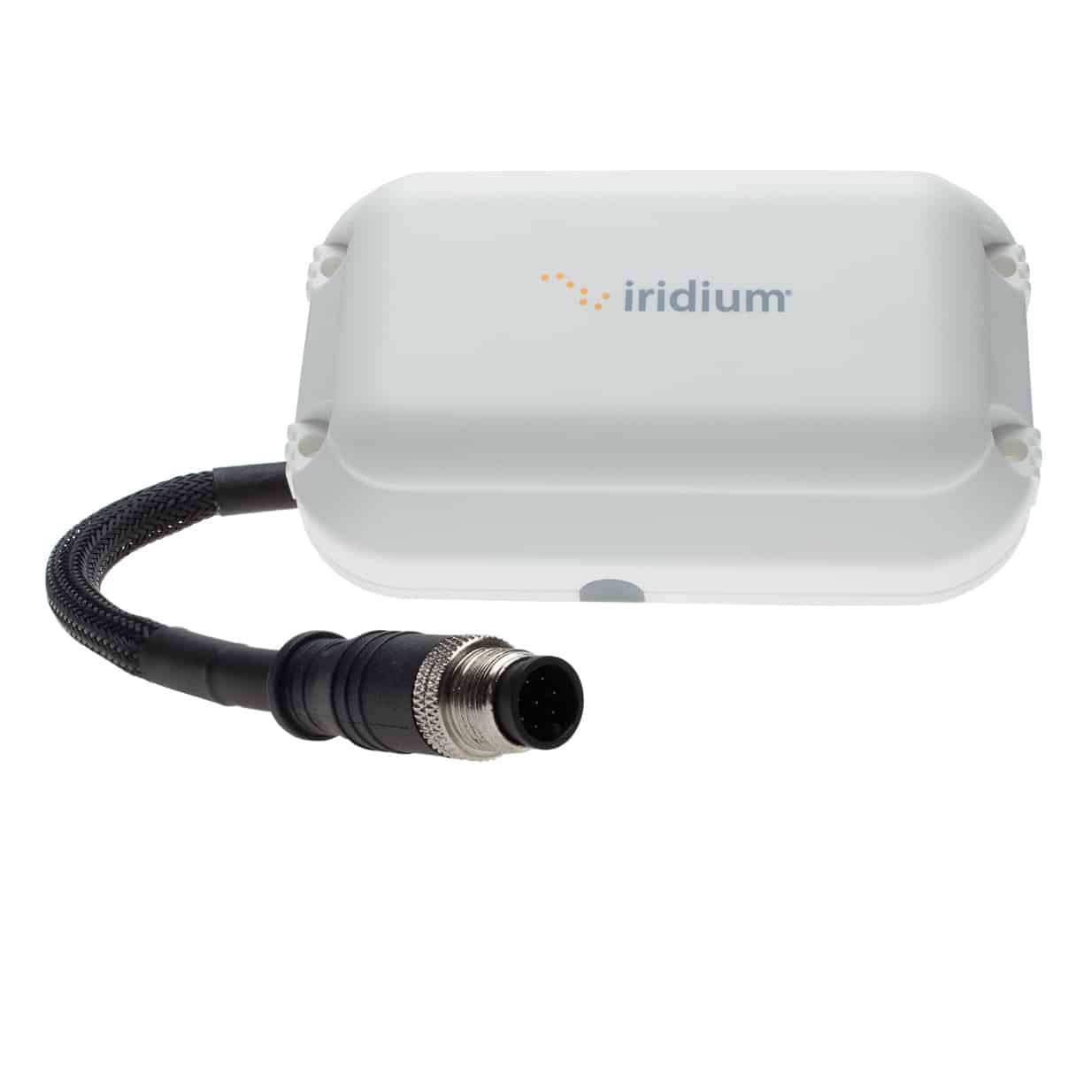

Iridium Edge – 9602N data modem via Iridium’s SBD service

Features

  • RS232 D9 Serial interface
  • Built-In Iridium antenna
  • RS232 compatible AT command set
  • SBD (Short Burst Data service)
  • Tracking

For operating the Iridium 9602N modem you need a SBD postpaid-contract (see documents) too.

Optional accessories for Iridium Edge

  • Plug for self-assembly of data cable for any cable length
  • 5m D9 cable (on demand)

Data

  • Data rate ~100 Byteps
  • Frequency 1616 – 1626.5 MHz
  • maximum data per SBD call
    MO (Transmit): 340 Byte
    MT (Receive):  270 Byte

Interfaces

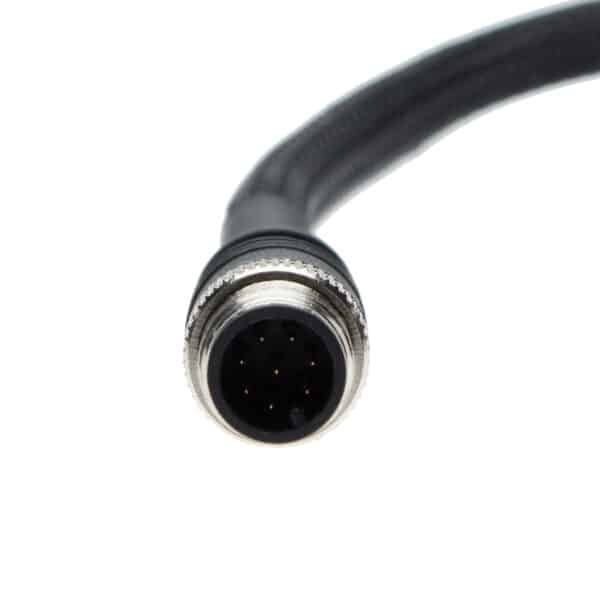

  • RS232 D9 serial, M12-8 pin male, terminated on 20cm pigtail cable
  • On/Off control lines

Power supply

  • Input 9 - 32 VDC
  • Consumption / power
    Standby           250 mA
    Max                  1.6 W


Dimensions and weight

  • Weight 210 g
  • Dimensions  123 x 78 x 30 mm


Environment

  • Operating temp.       -40°C to +85°C
  • Storage temp.          -40°C to +85°C
  • Protection IP67

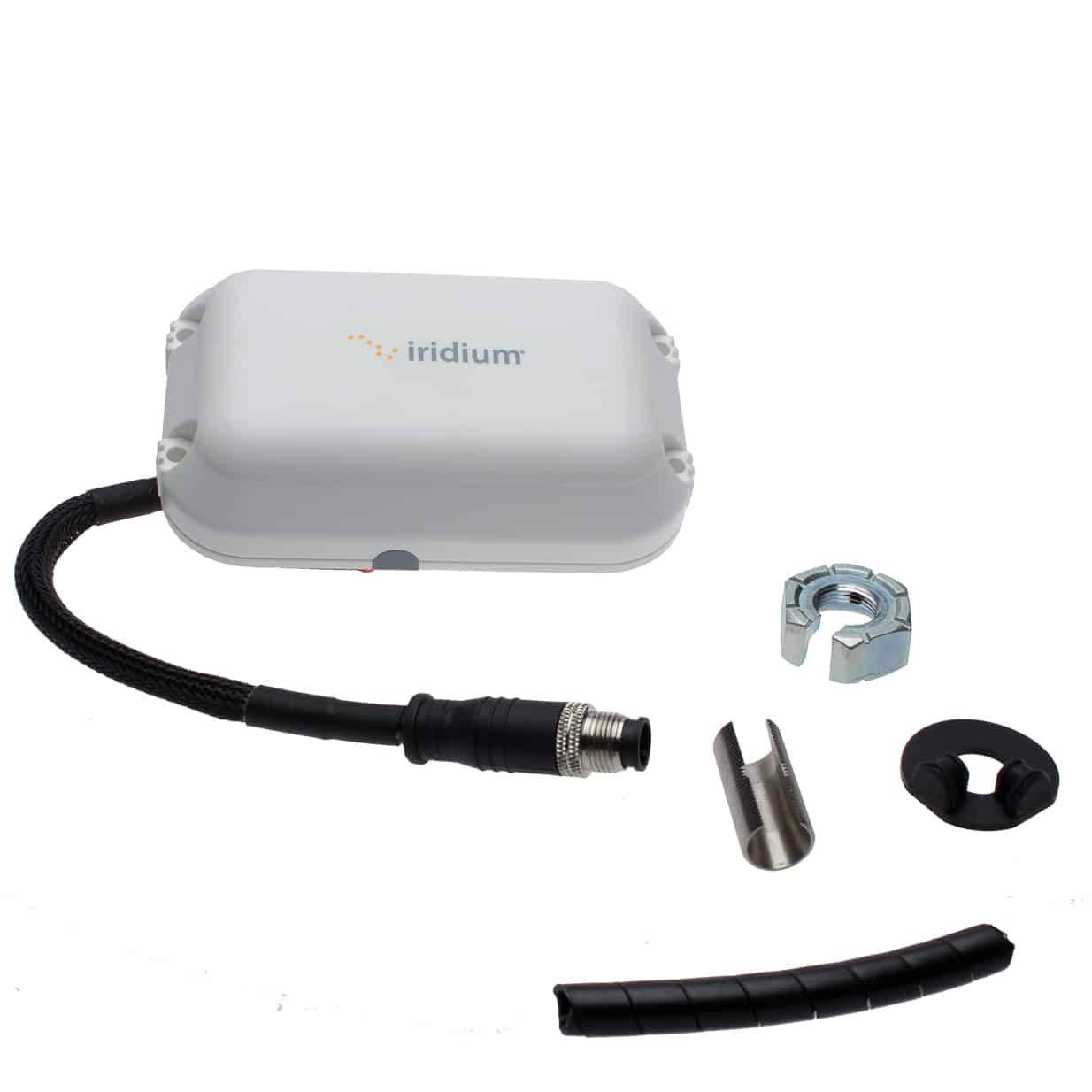

  • Iridium EDGE

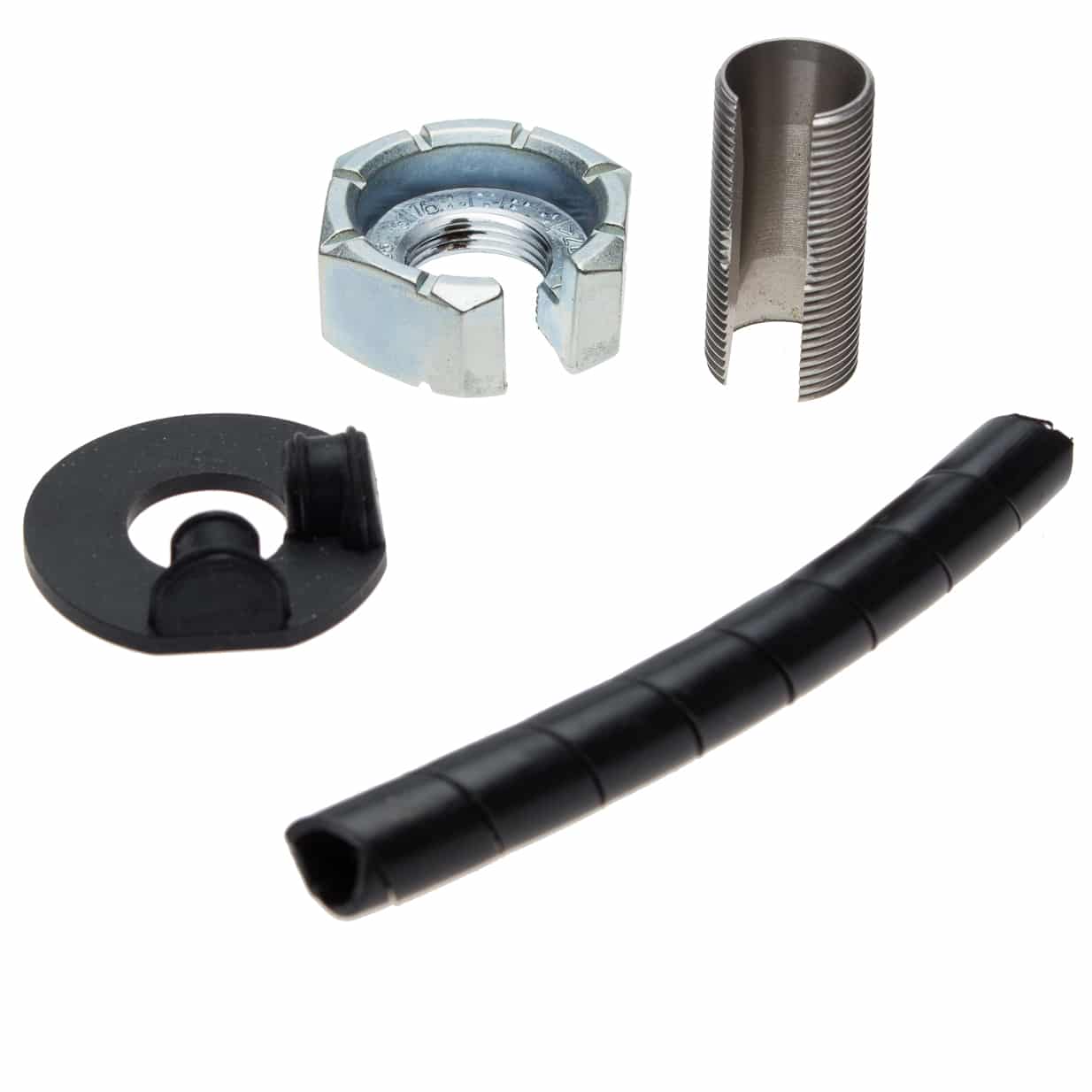

  • Rubber Grommet
  • Spiral Sheath
  • Slotted Screw
  • Slotted Nut
Stock Keeping Unit2006
Weight0,3300 kg
Dimensions20 × 11 × 7 cm
HS-Code85176200
Country of manufactureThailand
MPNEDGE1601
