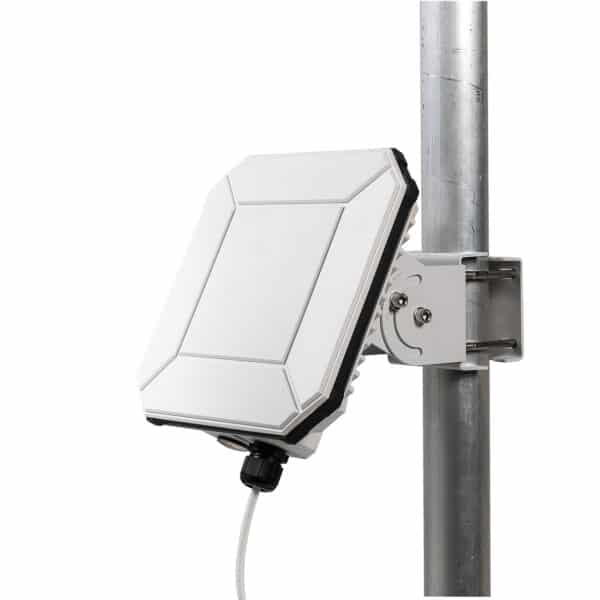

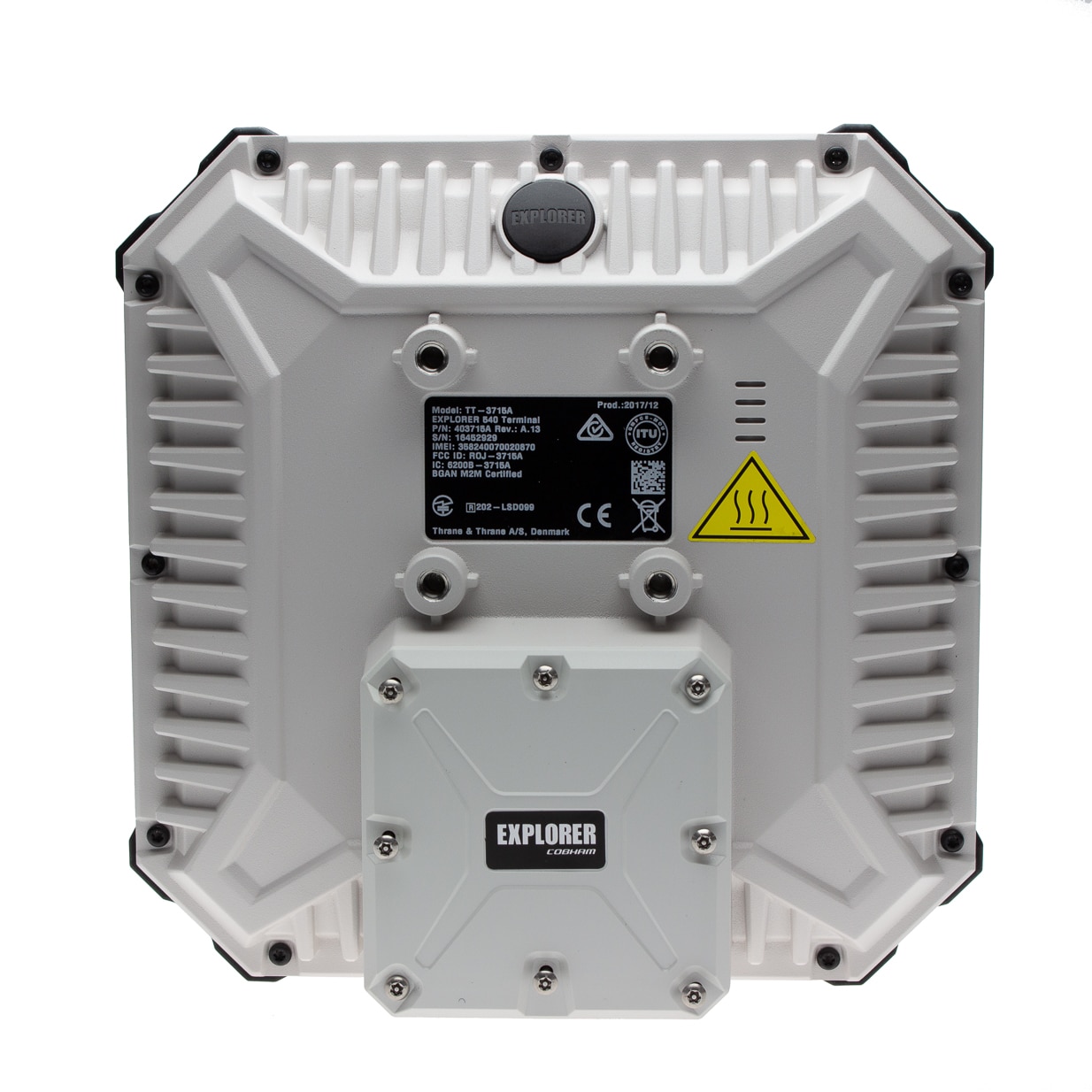

The Cobham EXPLORER 540 IP satellite terminal provides reliable connectivity over the Inmarsat Broadband Global Area Network BGAN M2M (machine to machine)n and BGAN Land /(incl. SIP voice) services and the LTE modem to cellular network (optional). The terminal delivers affordable, global, end-to-end IP data connectivity enabling applications in industry sectors such as environmental monitoring, SmartGrid, pipeline monitoring, compressor monitoring, well site automation, video surveillance, and out-of-band management to primary site communications.
Main features:
- No connection charge, minimum increment 1 kByte
- Web interface and embedded manual
(english, french, german, spanish, russian, japanese, chinese) - Built-in SIP server for up to 16 VoIP phones (BGAN Service only, not compatible with BGAN M2M, DHCP server or fixed IP)
- Integrated IP Watchdog (“always on” network)
- Remote control via SMS or web server via Static Public IP (additional service chargeable)
- Auto-on/auto-context activation
- Power supply PoE up to 100m, DC 12V up to 12m, 24 V up to 200m

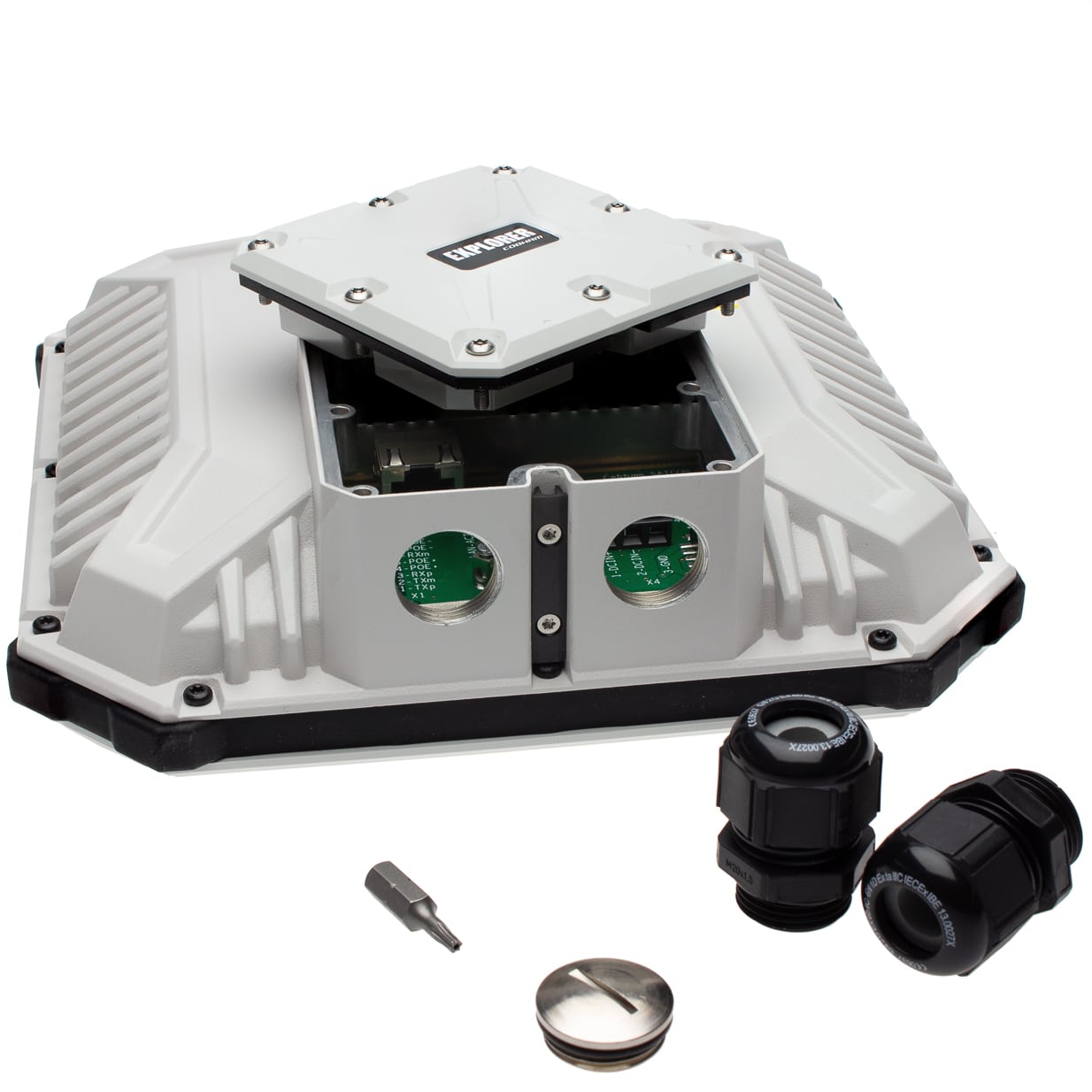

- Sealed cable gland for Ethernet and DC cable entry, to mount on unpatched Ethernet cables
- Automatic failover between BGAN and the cellular network for continuous connectivity (optional)
For usage of the BGAN M2M Terminal you need a BGAN M2M SIM card or BGAN SIM card (incl. SIP phone service)
Additional accessories for EXPLORER 540 (on request)
- PoE+ Ethernet outdoor cable pre-installed on the modem, running to the building entry point/lightning protection
- Standard PoE switch or PoE injector
- EXPLORER 540 LTE Modem – EMEA / AsiaPac Version
- EXPLORER 540 LTE Modem – US Version
- LTE Modem Extension Kit for EXPLORER 540 LTE Modem
