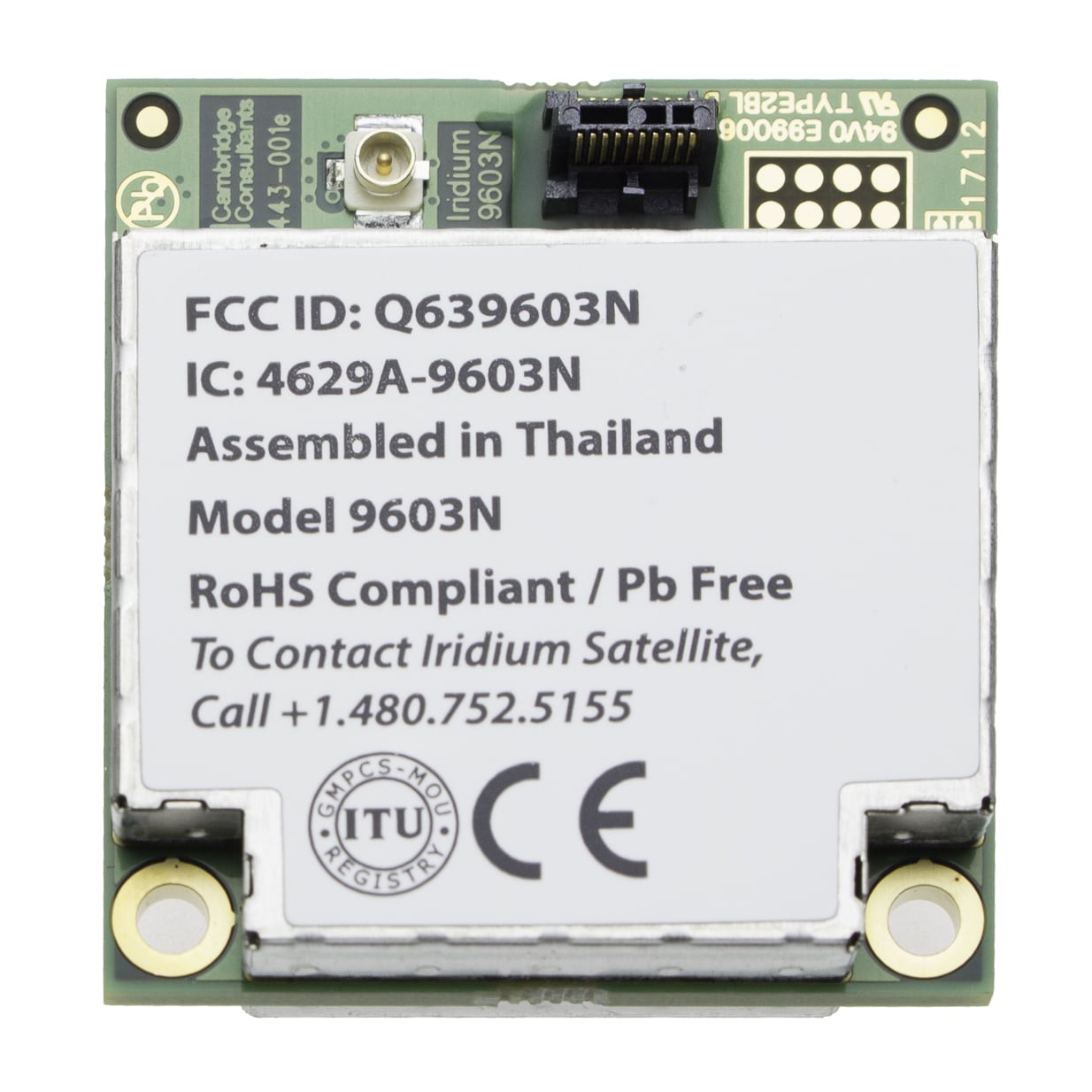

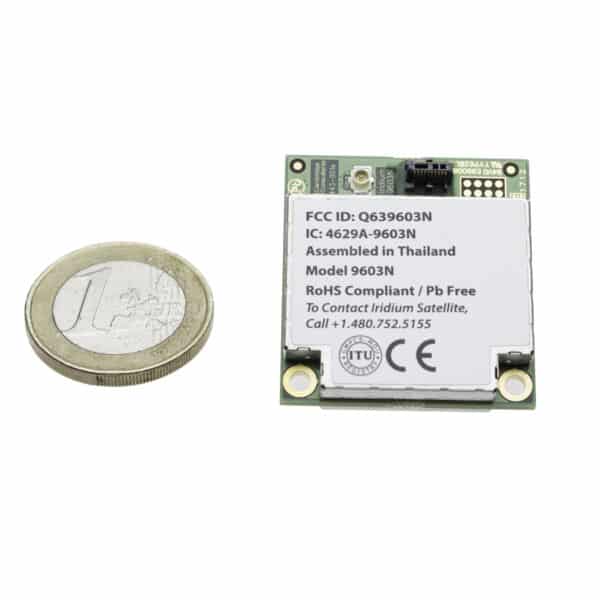

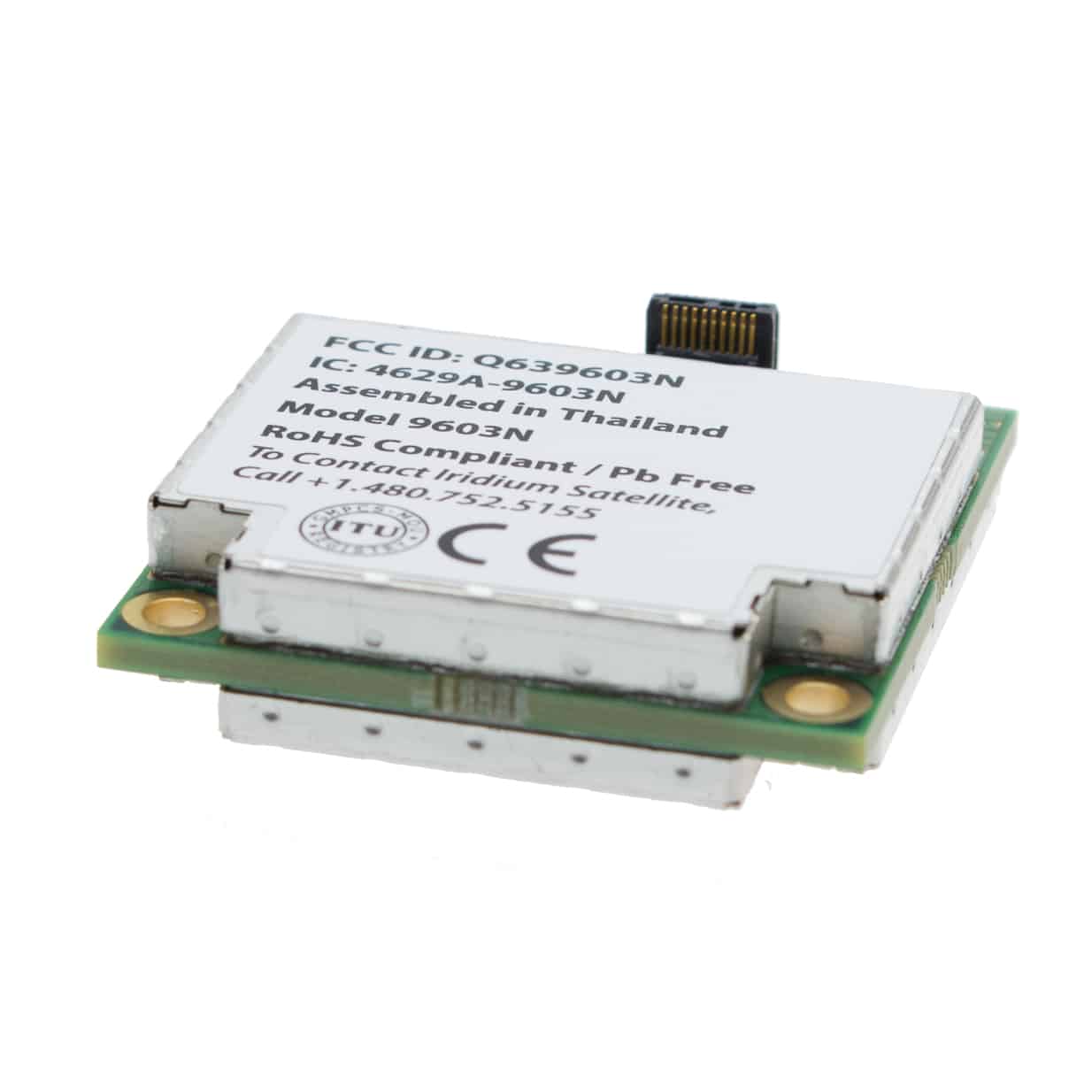

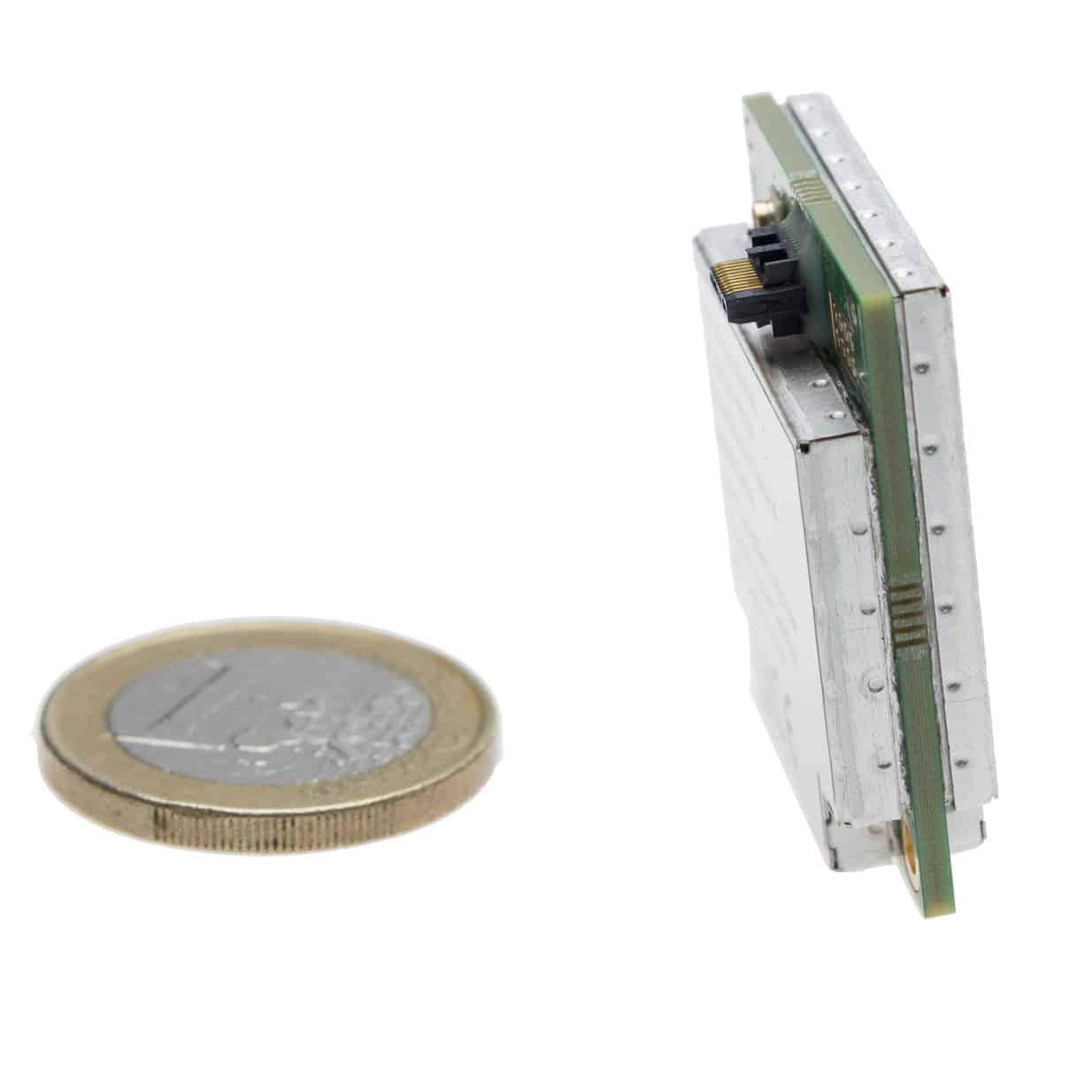

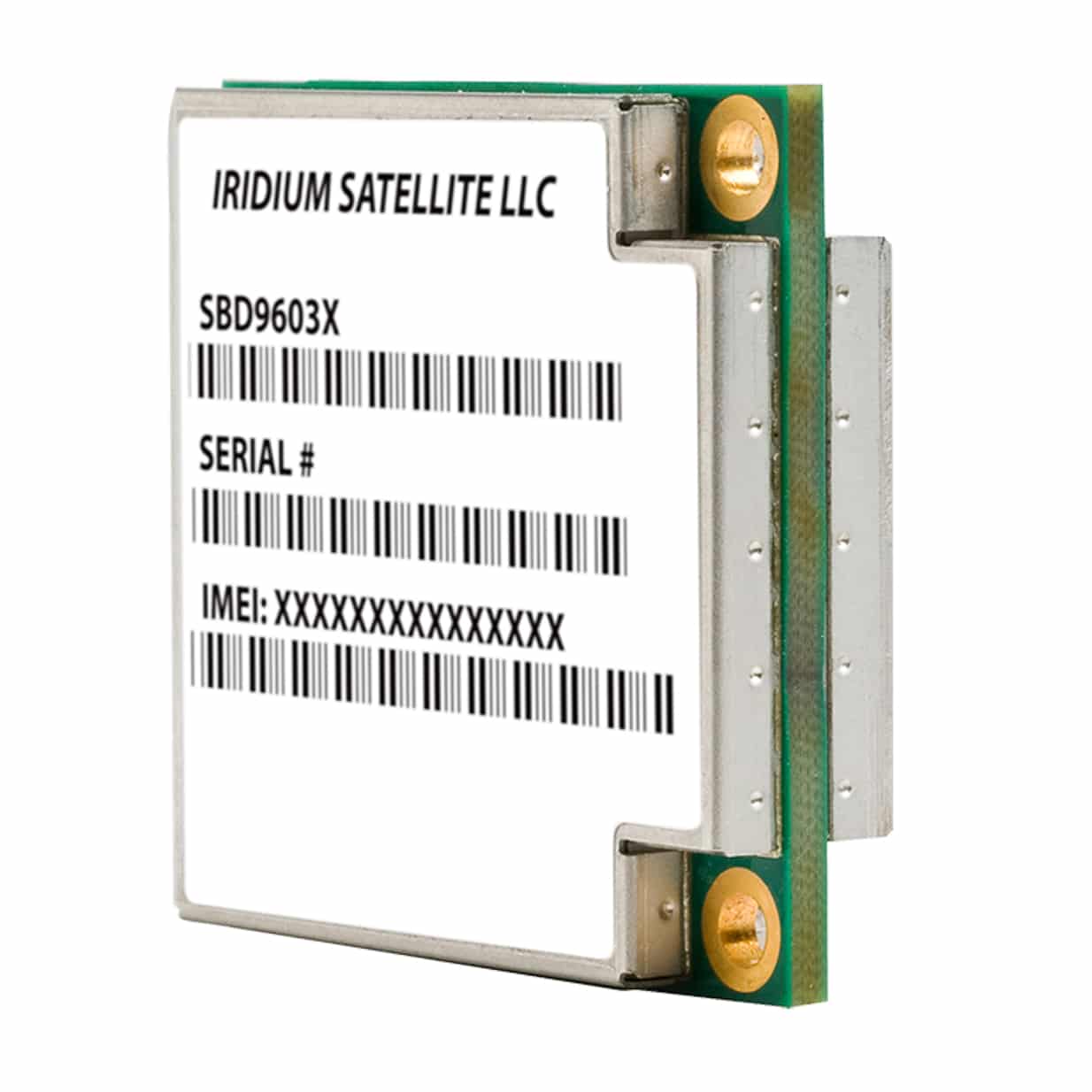

Iridium 9603N

279,00 €

incl. 19% VAT excl. shipping costs

Delivery time: 1 - 2 working days

Core modem for product design

The Iridium 9603N Short Burst Data (SBD) transceiver module is Iridium’s smallest, lightest and most advanced SBD satellite transceiver that provides global SBD connectivity through the world’s furthest reaching network.

  • Length: 31.5 mm
  • Width: 29.6 mm
  • Depth: 8.1 mm
  • Weight: 11.4 g
  • Operating temperature range: -40ºC to +85ºC
  • Operating humidity range: _ 75% RH
  • Storage temperature range: -40ºC to +85ºC
  • Storage humidity range: _ 93 % RH
  • Frequency range: 1616 to 1626.5 MHz
  • Duplexing method: TDD (Time Domain Duplex)
  • Input/output impedance: 50_
  • Multiplexing method: TDMA/FDMA
  • Supply input voltage range: 5.0V +/- .5V DC
  • Supply input voltage ripple: <40mV pp
  • Idle Current (peak): 156mA
  • Idle Current (average): 34mA
  • Transmit Current (peak): 1.3 A
  • Transmit Current (average): 145mA
  • Receive Current (peak): 156mA
  • Receive Current (average): 39mA
  • SBD message transfer - average current: 158mA
  • SBD message transfer - average power: <= 0.8 W
Iridium 9603N
Iridium 9603 (N) Developers Guide
Iridium 9603 (N) Brochure
Stock Keeping Unit490
Weight0,1000 kg
HS-Code85176200
Country of manufactureThailand
MPNSBDG3M2101
