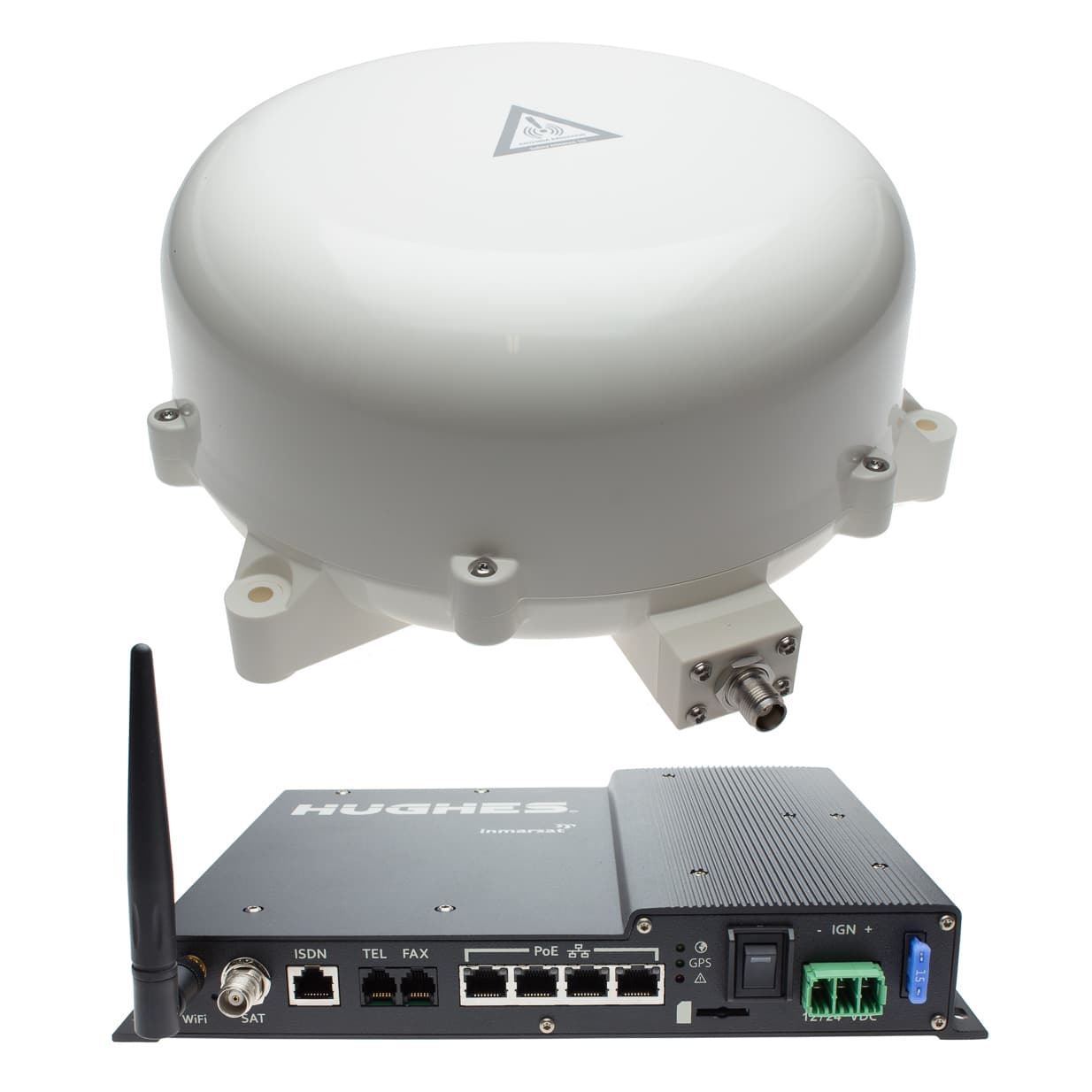

Hughes 9450TW-C11 Inmarsat BGAN Terminal

8.250,00

Delivery time: 3 - 4 Weeks

Satellite terminal for vehicle mount on mainland

Main Features:

  • IP broadband up to 464 kbps
  • Streaming IP: 32, 64,128 kbit/s
  • Simultaneous use of Ethernet and WLAN for IP data plus
    RJ-11 or ISDN for voice
  • antenna in motion
    wind 200 km/h, magnetic mount 160 km/h

For usage of the BGAN Hughes 9450 you need a SIM-card for postpaid-contract (see documents) or  prepaid-voucher too.

Additional accessories for Hughes 9450-C11

  • DC car charger, on demand

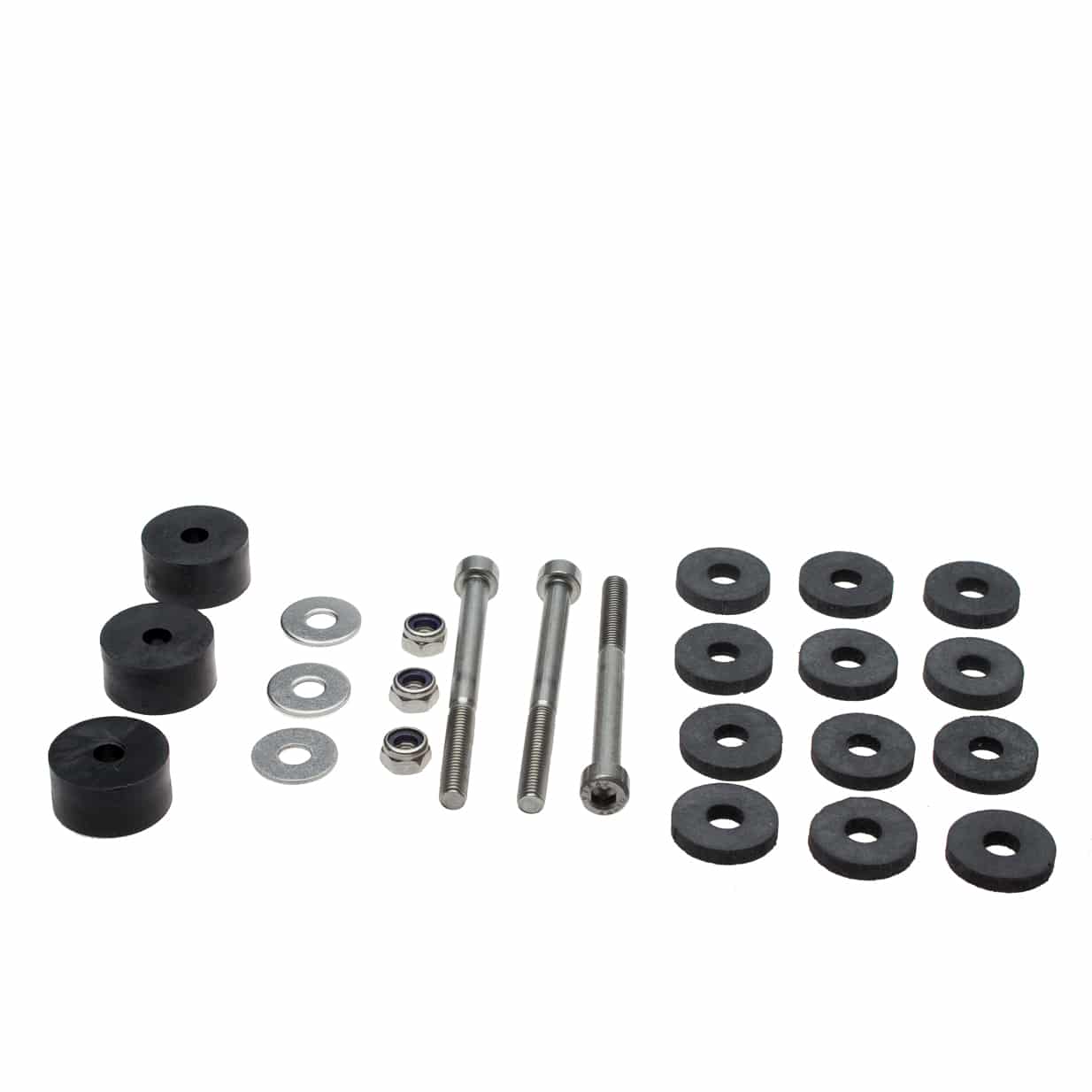

  • Magnetic mount solution for C11 antenna, on demand
Connections
Voice
  • 4 kbit/s AMBE +2
  • 3,1 kHz audio 64 kbps
Data
  • ISDN  64 kbps
  • Standard IP   up to 464 kbps
  • Streaming IP up to 128 kbps
Interfaces
  • 4 x 10/100 Mbps Ethernet RJ45, PoE
  • Wi-Fi
  • 1x ISDN RJ45
  • 2 x RJ-11 phone / fax
  • Antenna Terminal TNC female Antenna TNC female
Power supply
  • DC input 12 / 24 V
  • Consumption (excl. PoE devices) Idle           32 W Transmit   65 W max.
Dimensions and weight
  • Weight Terminal  2.3 kg Antenna  2.0 kg
  • Dimensions Terminal    281 x 234 x  46 mm Antenna         ∅ 252 x 119 mm
Environment
  • Ingress protection Antenna  IP56
  • Operational temp. -25 to +55°C
  • Survival temp.       -40 to +80°C
  • Relative humidity:   95% non-condensing at 40°C

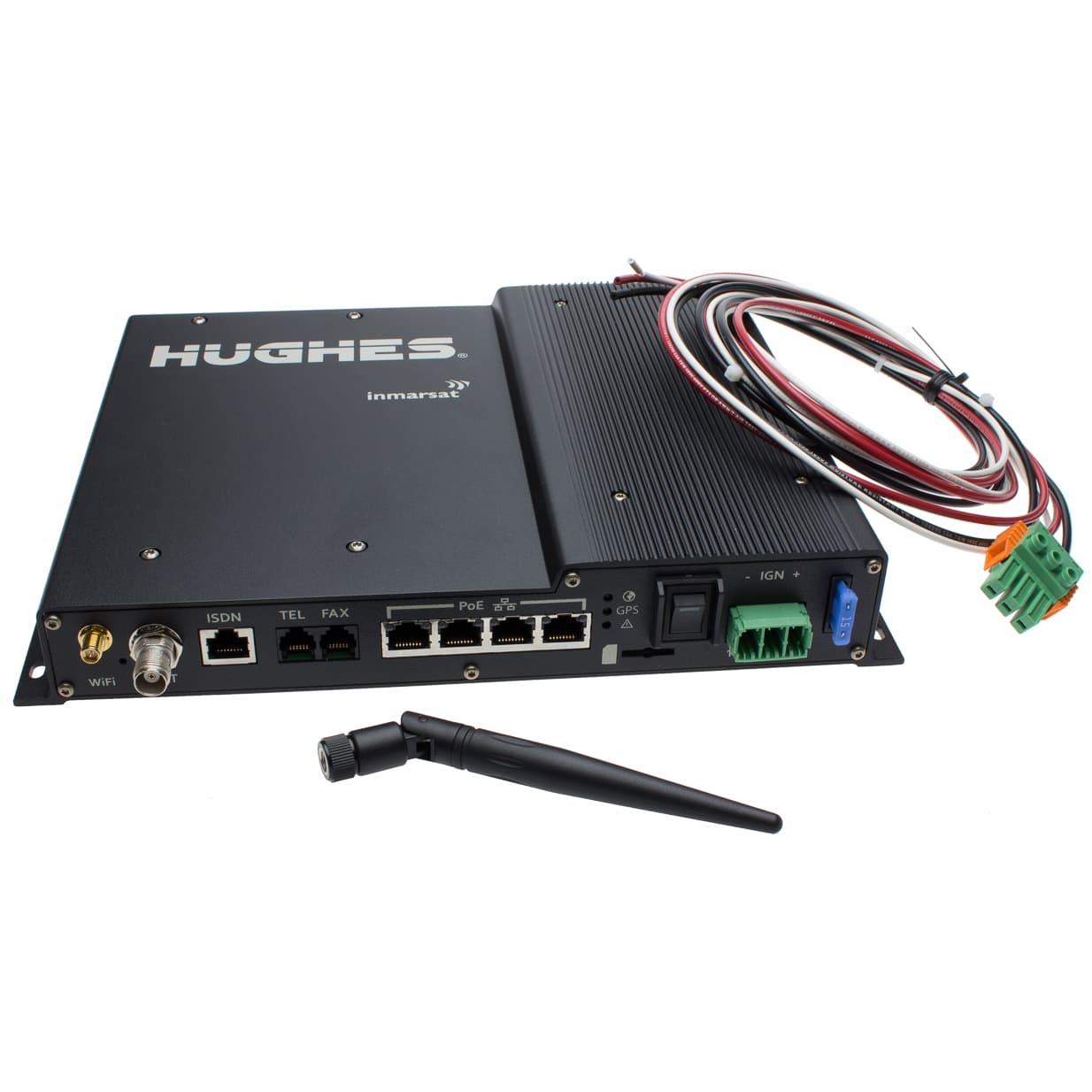

  • Hughes 9450 in motion terminal

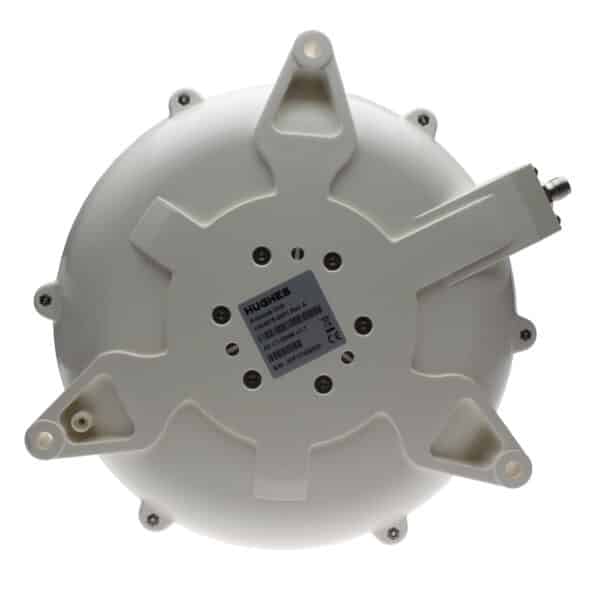

  • C-11 tracking antenna

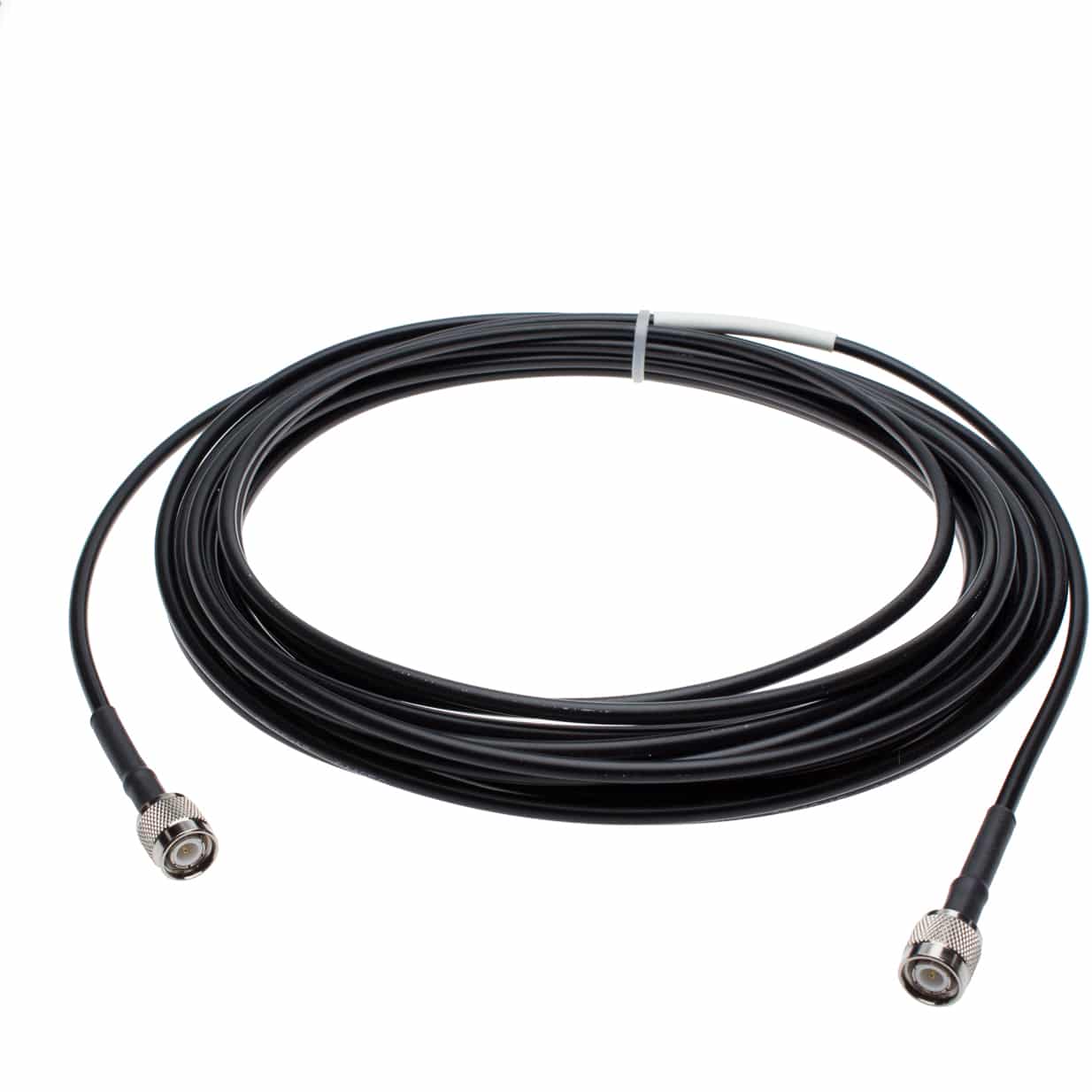

  • 8 m antenna cable
  • DC power cable
  • User Guide and Installation Guide
Stock Keeping Unit482
Weight8,0000 kg
Dimensions40 × 37 × 36 cm
MPN3500497-0021
