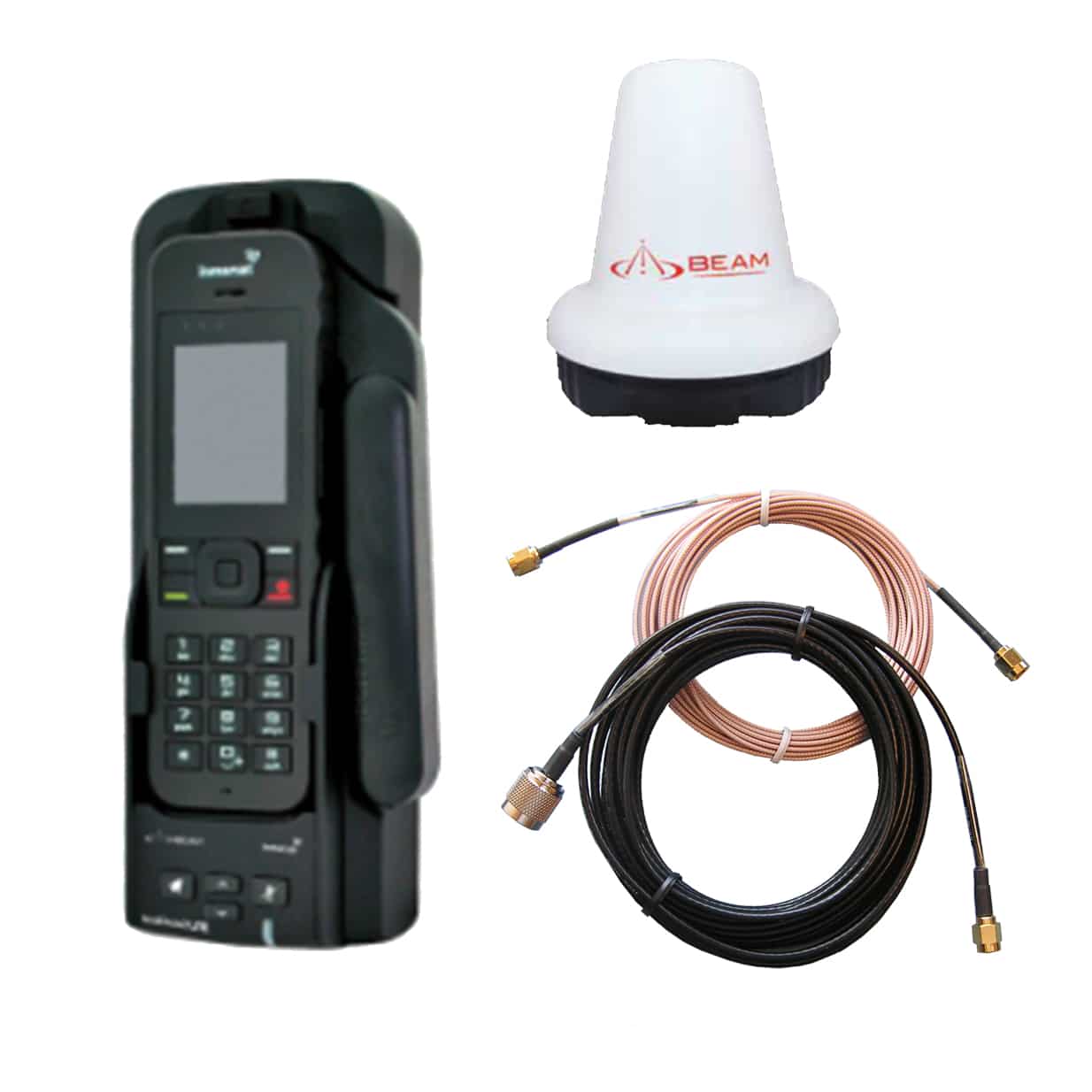

Beam IsatDock2 LITE + passive antenna ISD700 + handset

1.825,00

Delivery time: 2 - 3 Weeks

Beam IsatDock2 LITE + passive antenna + handset + 10 m cable

Beam IsatDock2 LITE + passive Antenna ISD700 + privacy handset + 10m antenna cable

Applications

  • Commercial vehicles
  • Emergency vehicles
  • Buses / Trains
  • Farm house / remote community
  • In building
  • Remote offices / branches
  • Emergency Communications

Features

Design

  • Single action insertion mechanism
  • Single button release
  • Key lockable
  • Universal mounting options
  • Robust GSPS / GPS antenna connection
  • Accessible control buttons

Power

  • 10 – 32V DC Input
  • Optional 110/240V AC Plug pack

Buttons On Dock

  • In-call mute
  • Ring tone selection
  • Bluetooth access via mobile phone
  • In-call volume up/down (for optional privacy handset)
  • Alert loop to position the IsatPhone 2 emergency call on any number of alert buttons along an alert wire (optional)

Accessing Voice Services

  • Bluetooth Accessory via handset
  • IsatPhone Pro Speaker (limited Volume)

Other Key Features

  • Keeps phone always charged
  • Adjustable inbuilt ringer
  • Status LED with adjustable brightness
  • Includes universal RAM bracket

Optional accessories

Power supply
  • 10 – 32V DC
  • 110/240V AC adaptor (optional)
  • Average consumption without phone 130 mA - 1.6 W Standby and charging 360 mA - 4.3 W Transmit and charging 875 mA - 10.5 W Sleep mode 5 mA - 60 mW max.Wert 3,5 A - 42 W
Interfaces
  • Data Port USB Micro
  • Power 12V DC car charger or AC power adaptor
  • Iridium antenna TNC-female
  • GPS antenna Active 3.3V DC, SMA-female
  • RJ9 for privacy handset
Dimensions and weight (Docker)
  • Dimensions 229 x 99 x 76 mm
  • Weight: 560 g
Environment
  • Operating temperature -35C° to +85°C
  • Charging temperature 0 °C to +45°C
  • Storage temperature -20 °C bis +70°C
  • Operating humidity 75 % RH (relative humidity)

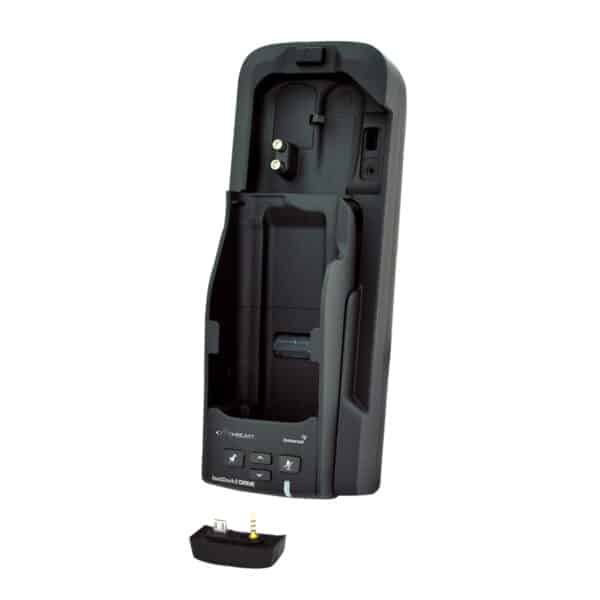

  • IsatDock2 LITE

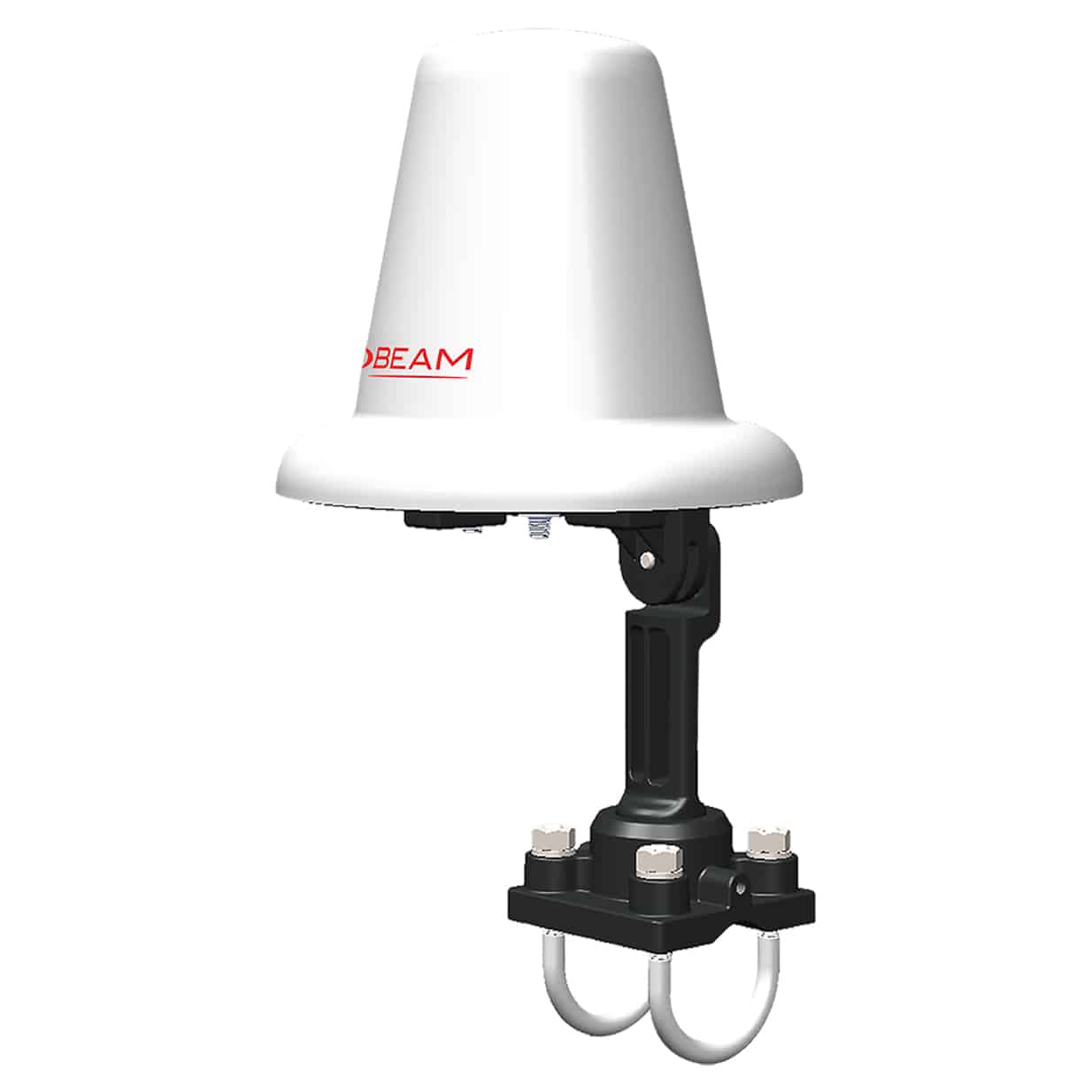

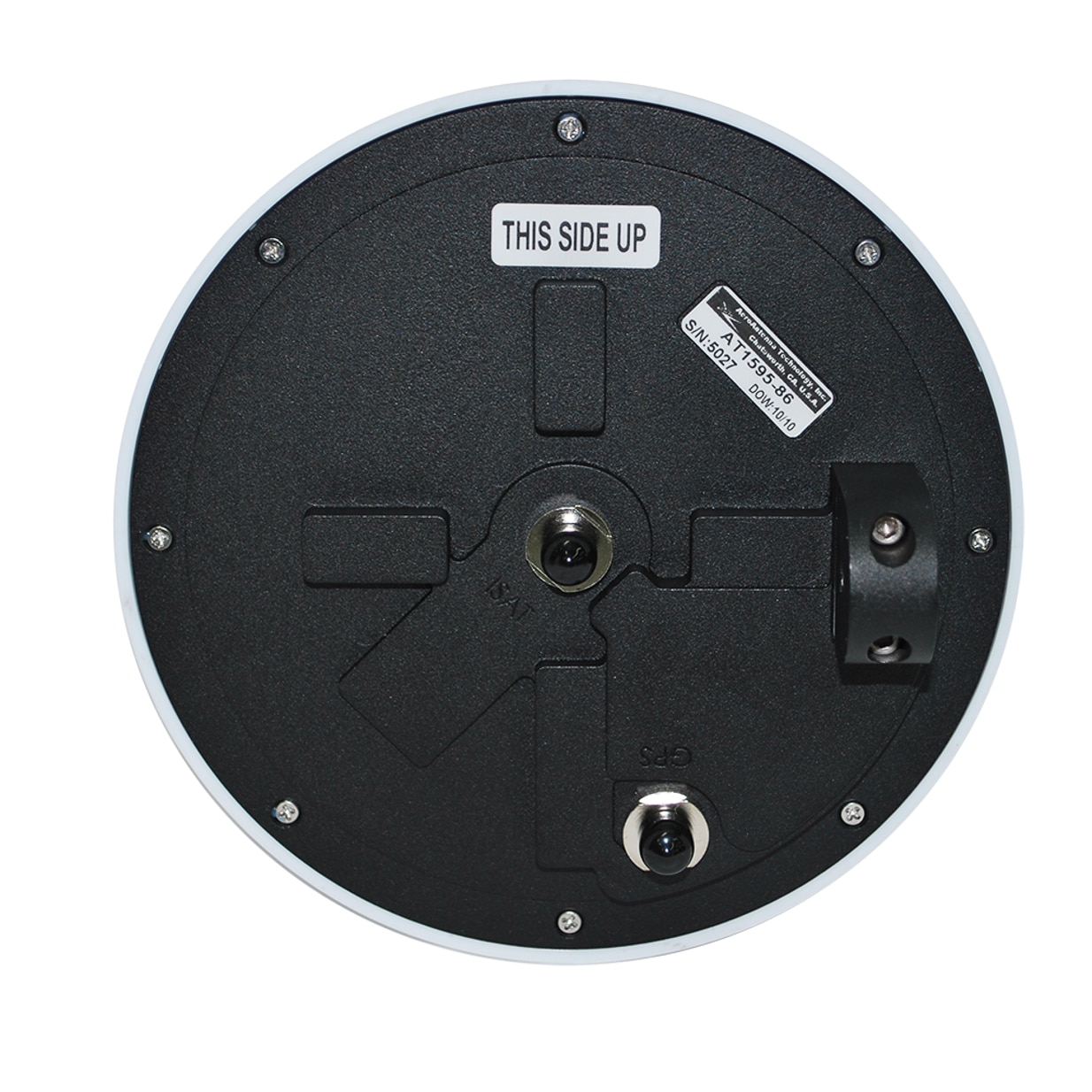

  • Passive antenna ISD700 incl. mast mount kit

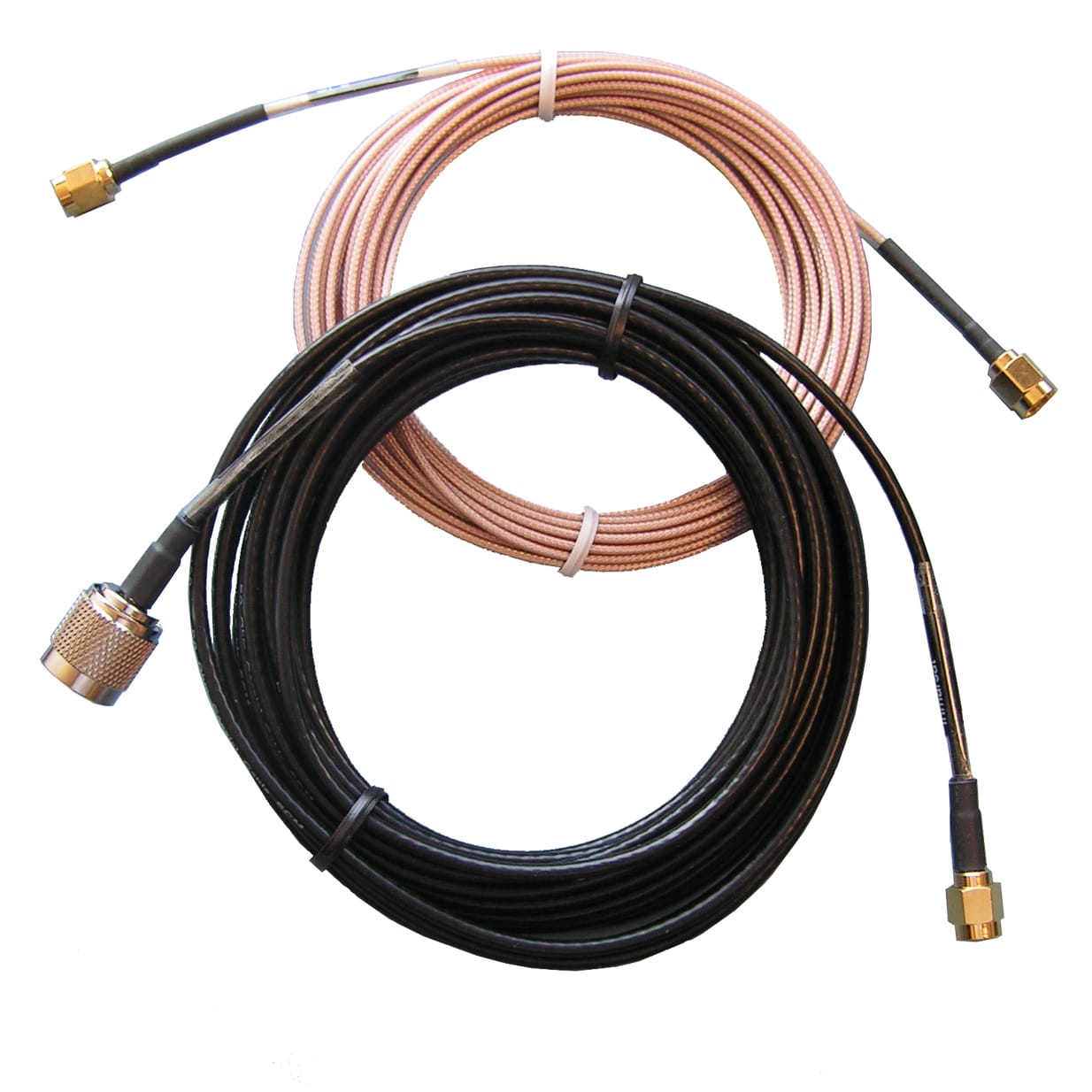

  • 10 m antenna cable (SAT + GPS) for passive antenna

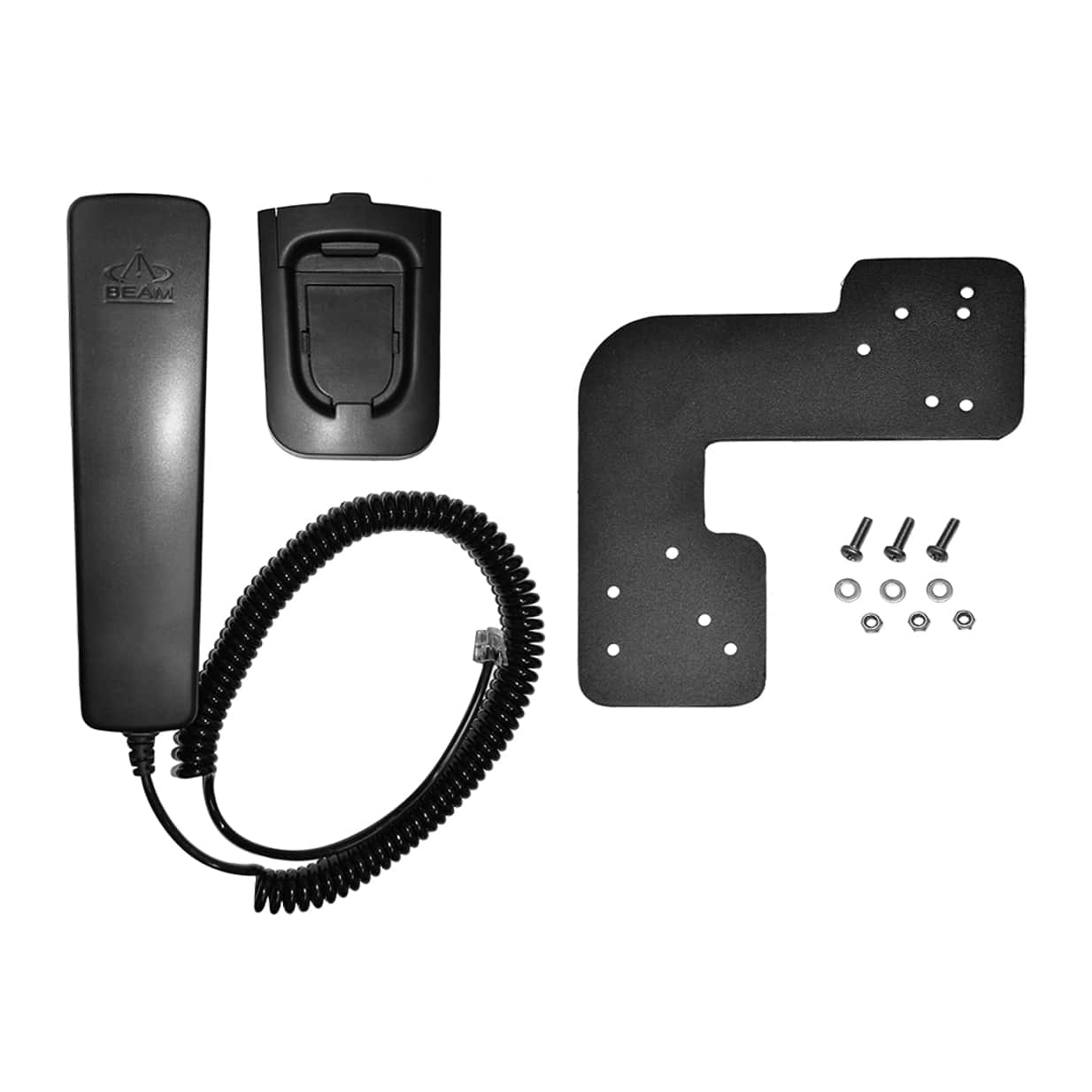

  • Privacy handset ISD955

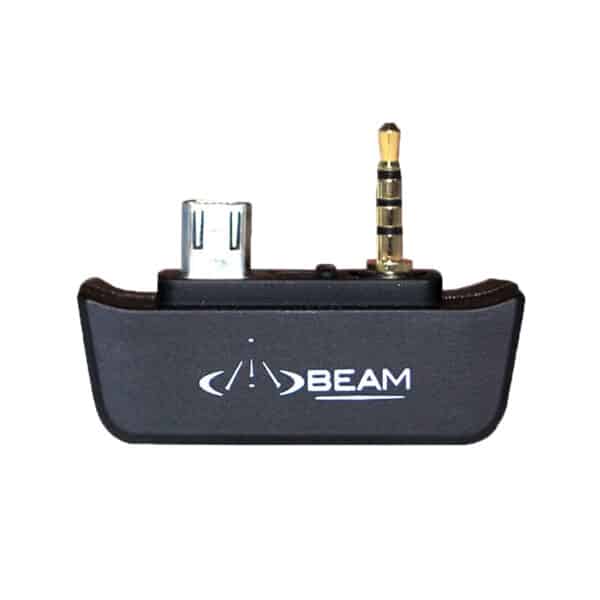

  • 2x IsatDock2 adaptors
  • 10-32V DC power cable 200 cm
  • Universal mounting bracket
  • User Manual & Quick Start Guide
Stock Keeping Unit1505
Weight3,1000 kg
Dimensions40 × 35 × 20 cm
Country of manufactureAustralia
MPNISDLPHPD2
