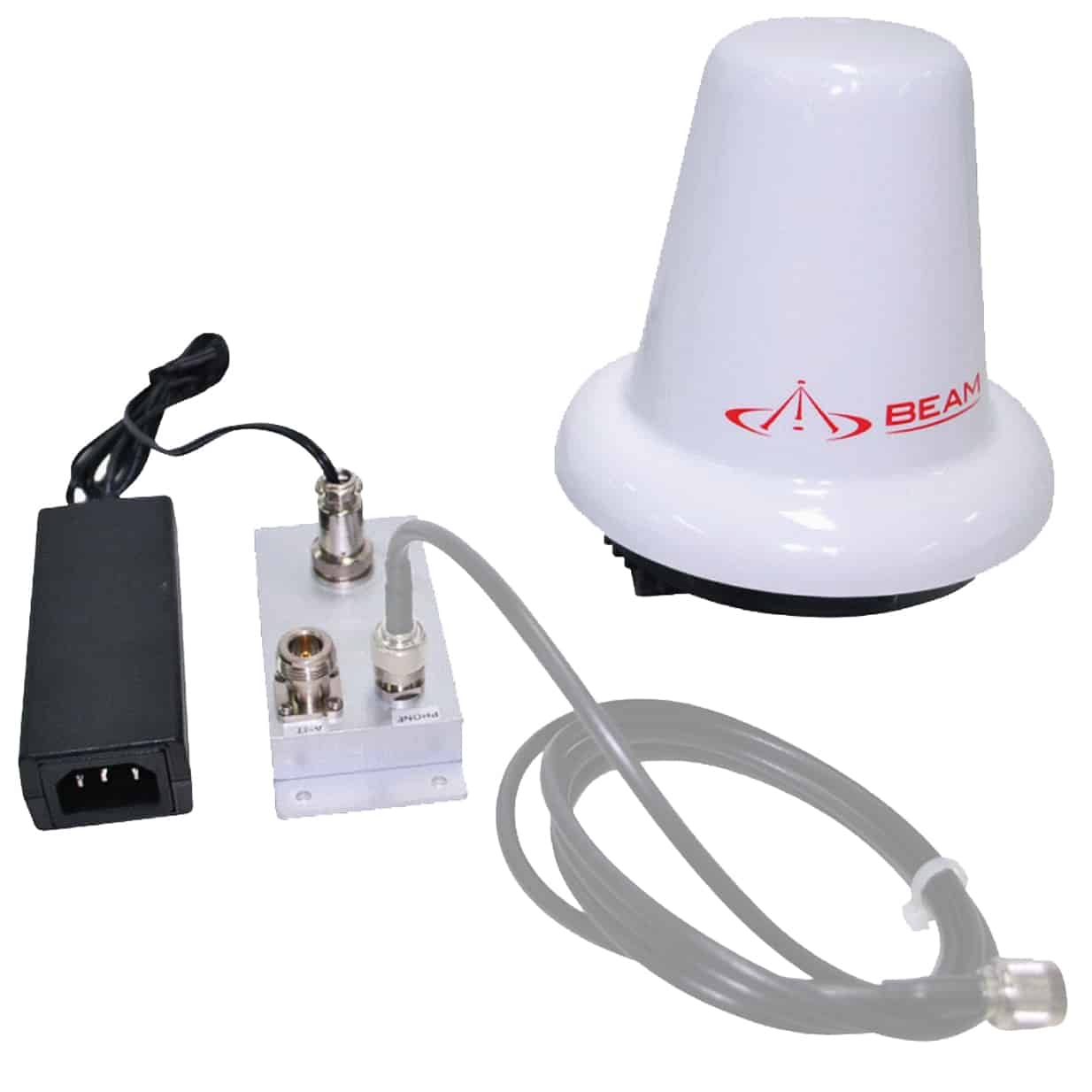

Beam RST740 Iridium active antenna
Features
- High quality enclosure
- Active antenna

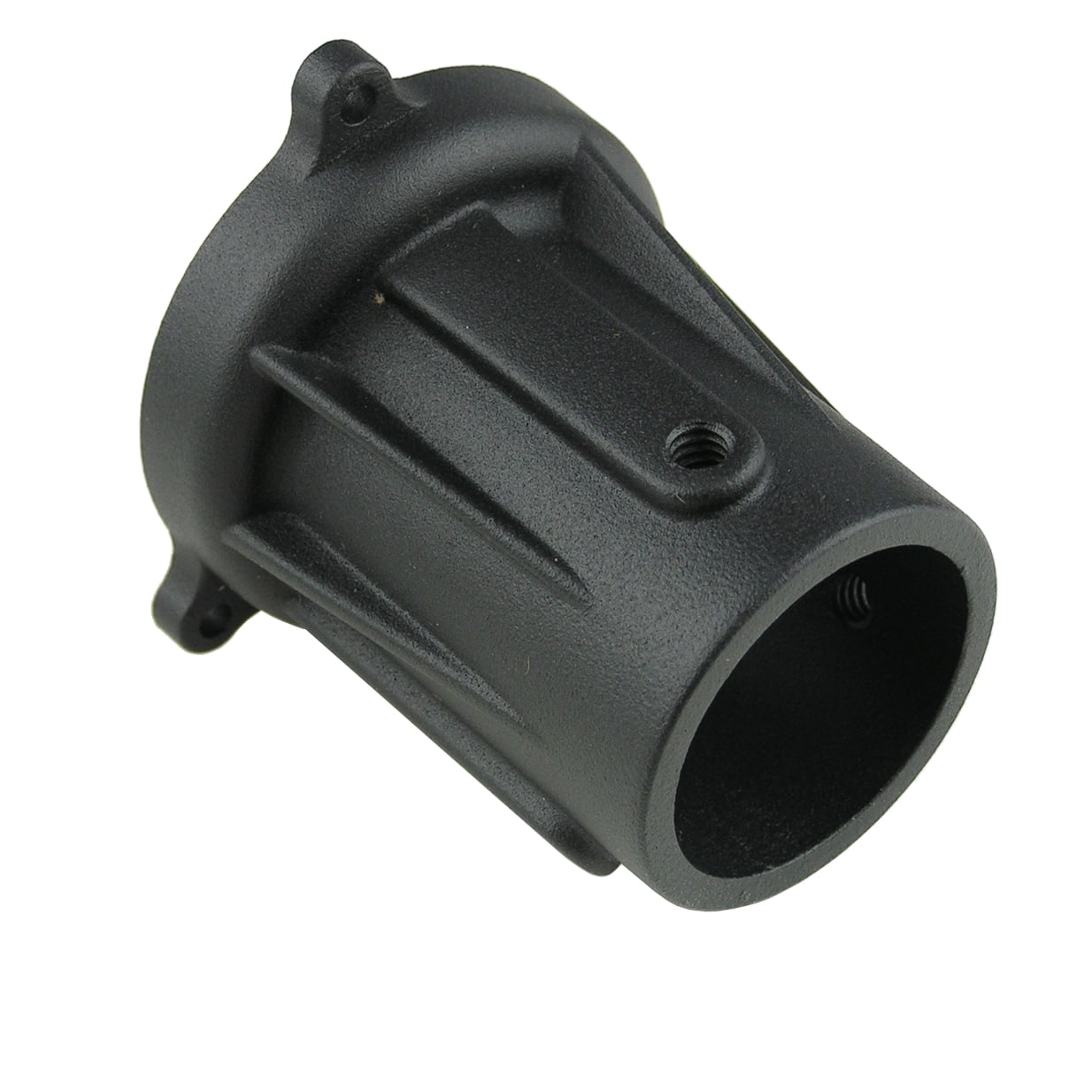

- Pole / Mast mounting (Diameter 36 mm)
- Supports long cable runs up to 104 m
- 9-32 V DC input
Connectors

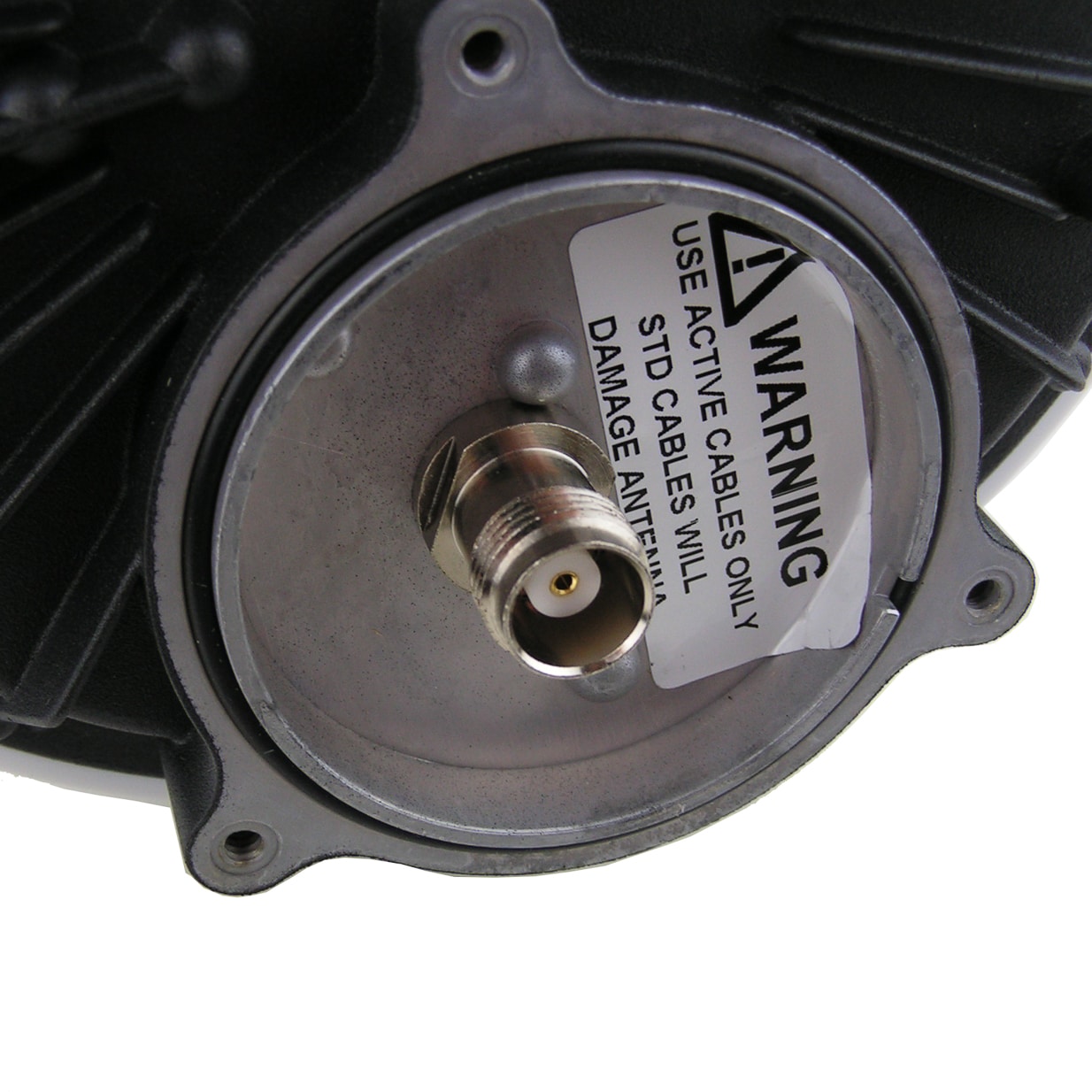

- Antenna connector TNC female

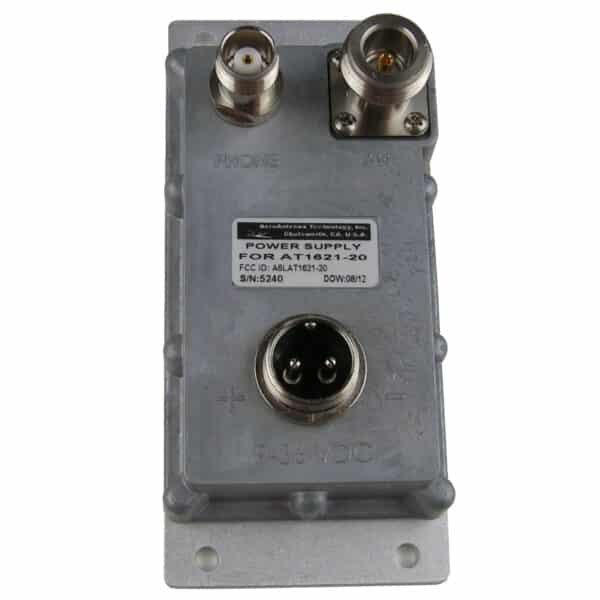

- Bias Box connectors
N female for antenna cable
TNC female for cable to docker / phone
Dimensions and weight
- Dimensions 143.8 mm x Ø142.5 mm
- Weight 0.9 kg
Environment
- Temp range: -40°C to +70°C
Mandatory accessories
- 75 m Iridium antenna cable for active antennas
- 104 m Iridium antenna cable for active antennas
- Individual lengths on request
