Iridium LT-4200L, up to 150m antenna cable

6.890,00

Delivery time: 1 - 2 Weeks

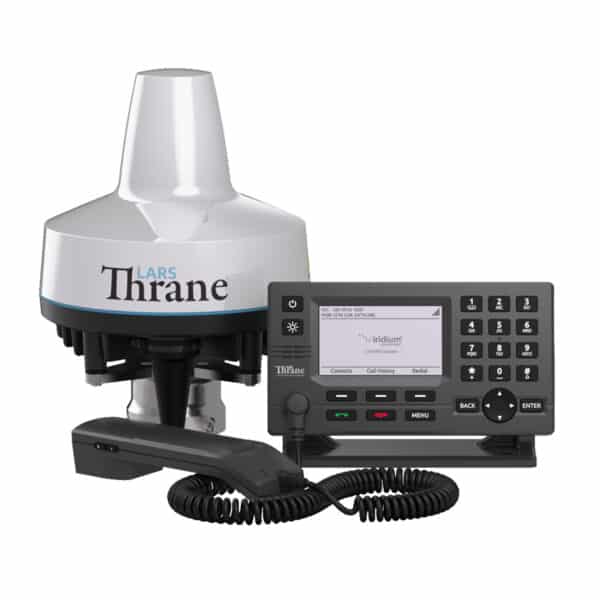

Iridium LT-4200L (Land version)

The LT-4200L satellite phone system from Lars Thrane supports Iridium Certus Land 200 service and is designed for permanent installation on land in buildings or vehicles. The robust and high-quality workmanship predestines the device for demanding use at and for long-term emergency communication on land. The LT-4200L offers contemporary options for connecting smartphones or telephone systems. Last but not least, the unusually long maximum cable lengthof 150 m for satellite antennas distinguishes the LT-4200L for flexible installation in a wide variety of situations.

Features

  • 3 VoIP lines
  • Support external SIP PABX and up to 8 SIP handsets or softphones (SIP app on smartphone)
  • POTS through ATA (Analogue Telephone Adaptor)
  • Data 176 kbps download / upload
  • The LT-4200 will be delivered without Bluetooth until further notice! Bluetooth interface for voice, SMS and data (PAN profiles)
  • High quality microphone, speaker, and equalizer for improved audio performance
  • Voice prompt audio feedback
  • Large 4.3” TFT-LCD display, day and night modes
  • Web user interface for configuration and maintenance
  • Firewall and user authentication, port forwarding, remote access (option)
  • Combined SAT / GNSS (GPS) single antenna cable
  • Supports external LAN Wi-Fi Access Points
  • Supports Iridium Mail app (Android and iOS via RedPort Optimizer WiFi)
  • 2 year warranty

For LT-4200L usage you need a

Iridium Certus Land Postpaid SIM-card for a Certus Land 200 contract for land based usage.
Shore based usage with land antenna over Iridium Certus Maritime service is definitely not provided!

Required accessories for LT-4200L

Optional accessories for LT-4200L

Data connection
  • Standard IP 176 kbps download / 176 kbps upload

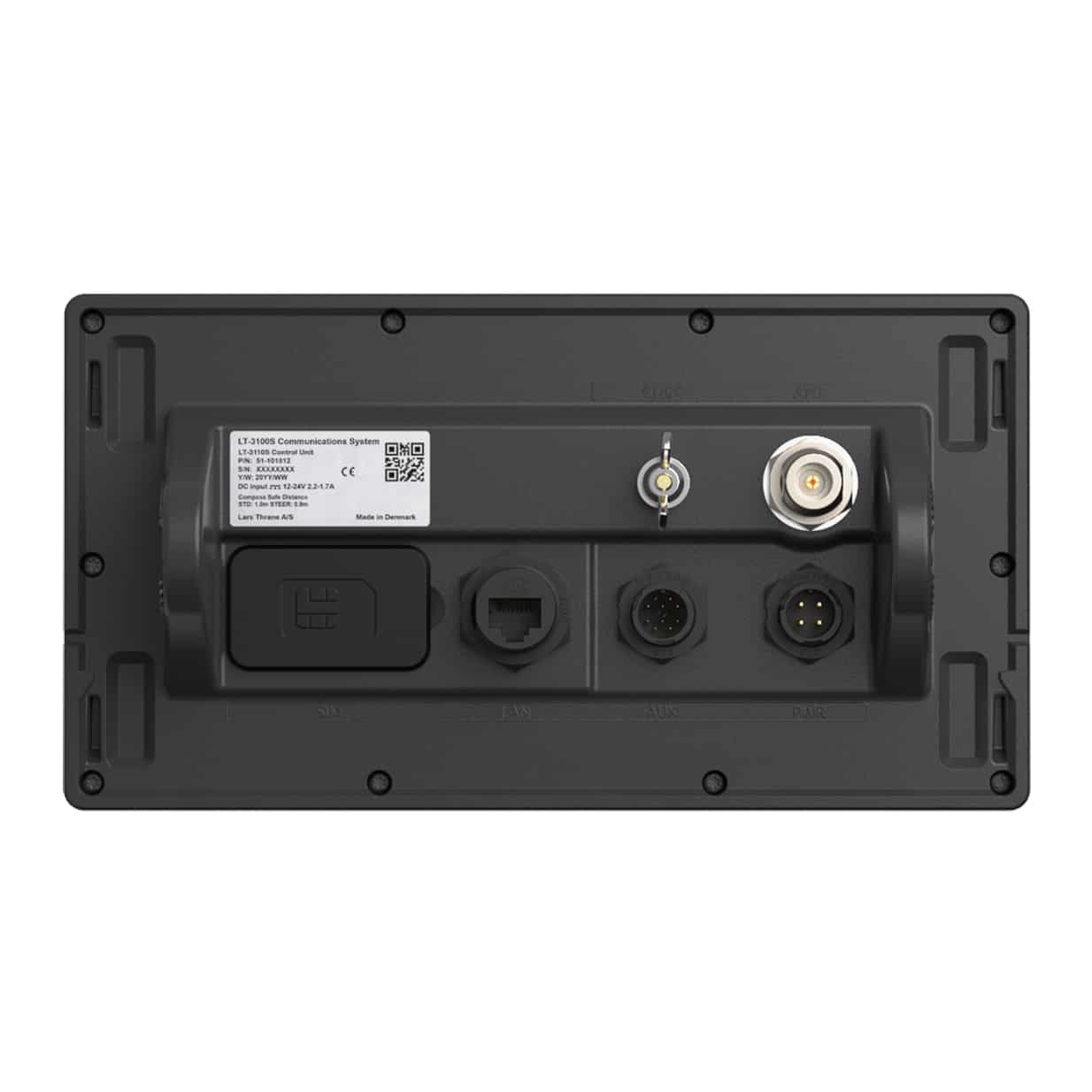

Interface an connectors
  • 1x RJ45 Ethernet LAN for data, SIP voice calls, service and maintenance
  • 1x RS422 (10 pin) supporting external ringer and radio silence
  • Connector for handset
  • Antenna connectors Terminal N female Antenna N female
Power supply and consumption
  • Input 24 VDC (8 A)
  • Transmit 154 W max. Standby 24 W max. Sleep mode 0.1 W max.
Antenna specification
  • Maximum conducted power:  41.7dBm
  • Gain:  2.3 dBi
  • Antenna radiation: Omnidirectional
Dimensions and weight
  • Control unit Weight 0.67 kg Dimensions 224 x 120 x 70 mm
  • Handset Weight 0.30 kg Dimensions 209 x 53 x 38 mm
  • Antenna Weight 3.7 kg Dimensions Ø 224.6 mm x 238.7 mm
Environment
  • Control unit Protection IP32 Operational temp. -15°C to +55°C
  • Handset Protection IP32 Operational temp. -15°C to +55°C
  • Antenna Protection IP67 Operational temp. -40°C to +55°C

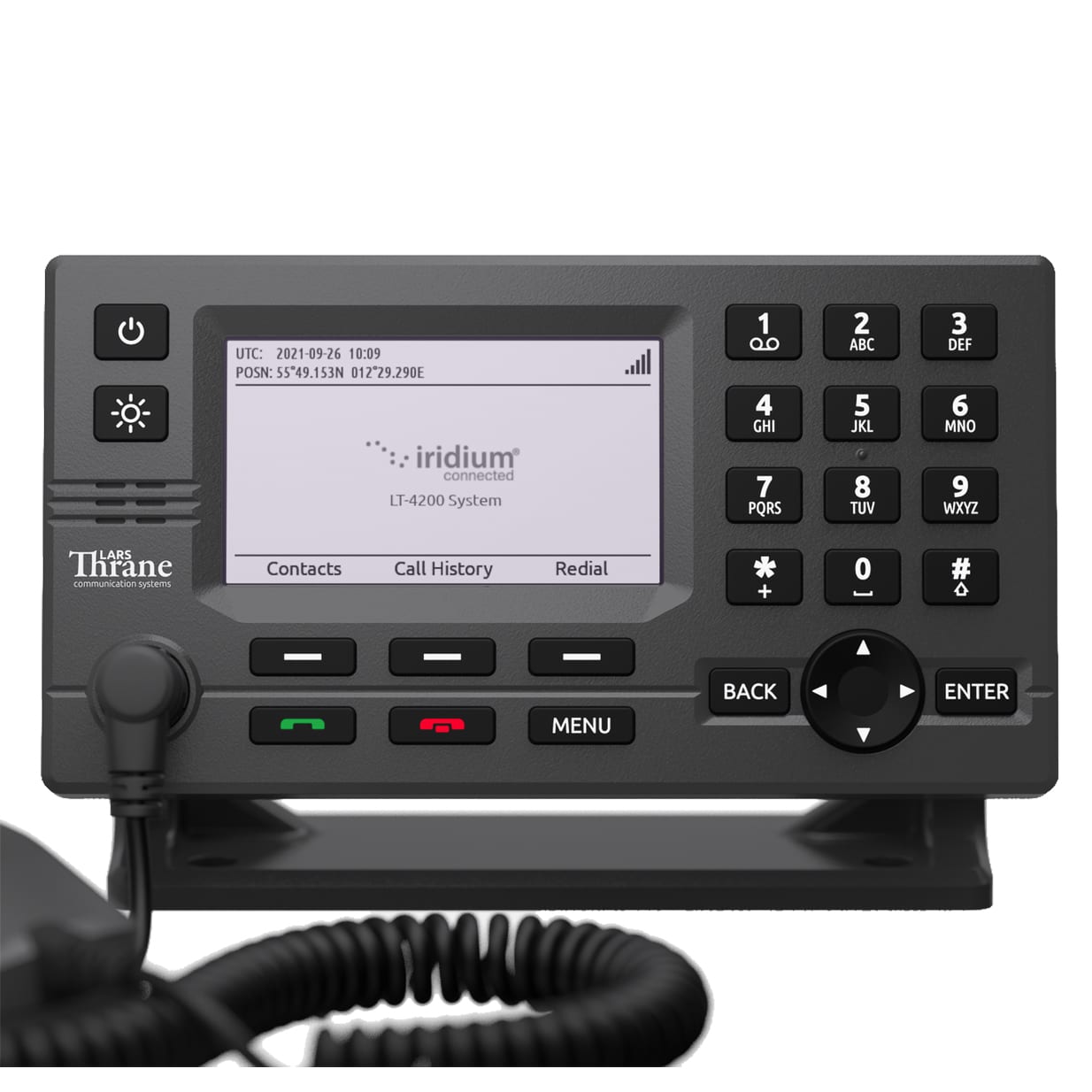

  • LT-4210 Control Unit

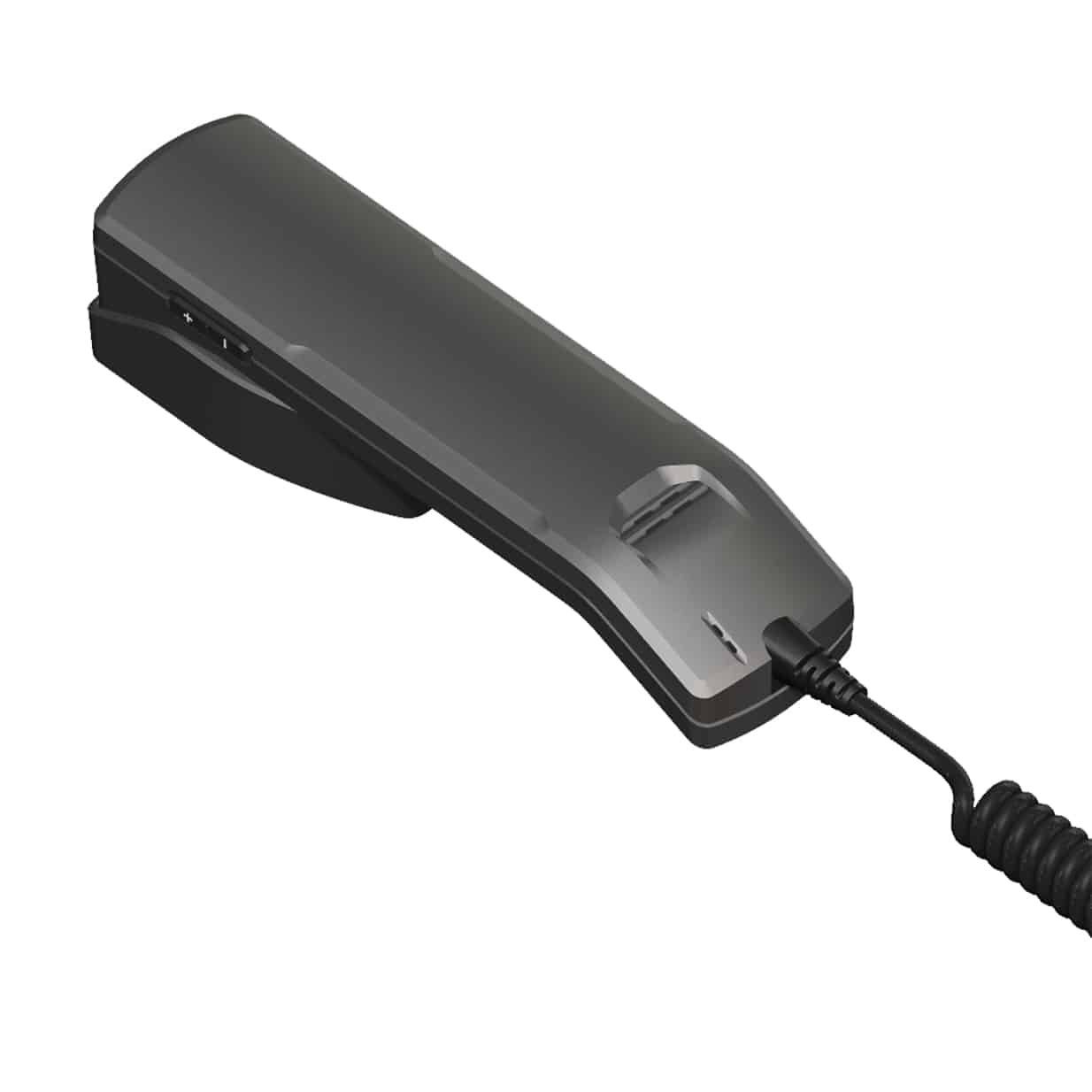

  • LT-3120 Handset
  • LT-3121 Cradle
  • LT-4230L Antenna Unit

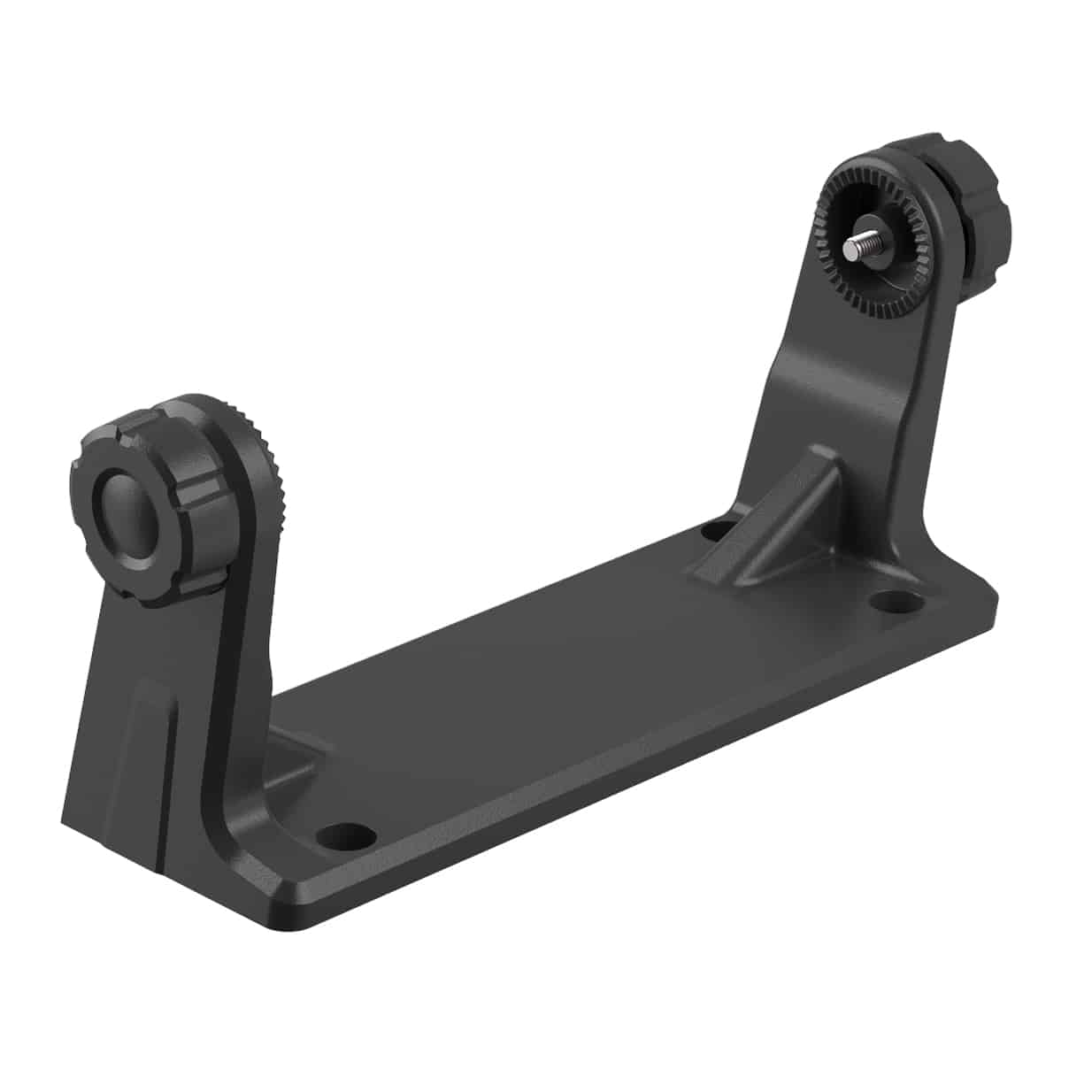

  • Bracket Mount for Control Unit

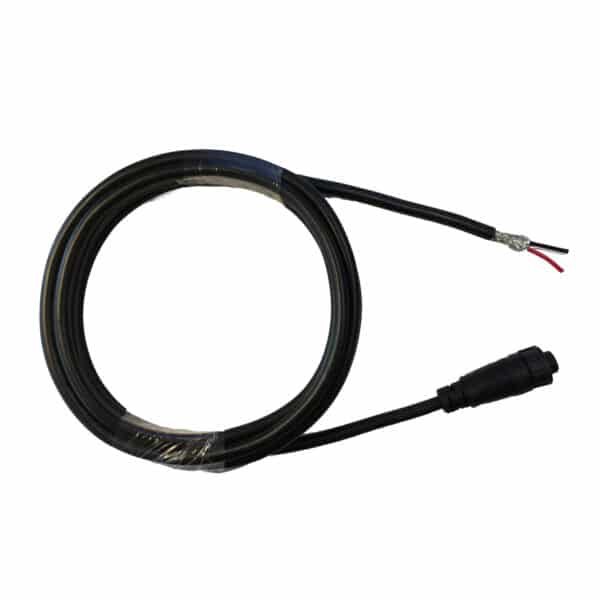

  • 3m DC power cable (4-pin)
  • User & Installation Manual
  • Unit Test Sheets
  • 2 year warranty
Stock Keeping Unit1935
Weight8,3000 kg
Dimensions50 × 34 × 30 cm
HS-Code85171200
Country of manufactureDenmark
MPN90-103324
