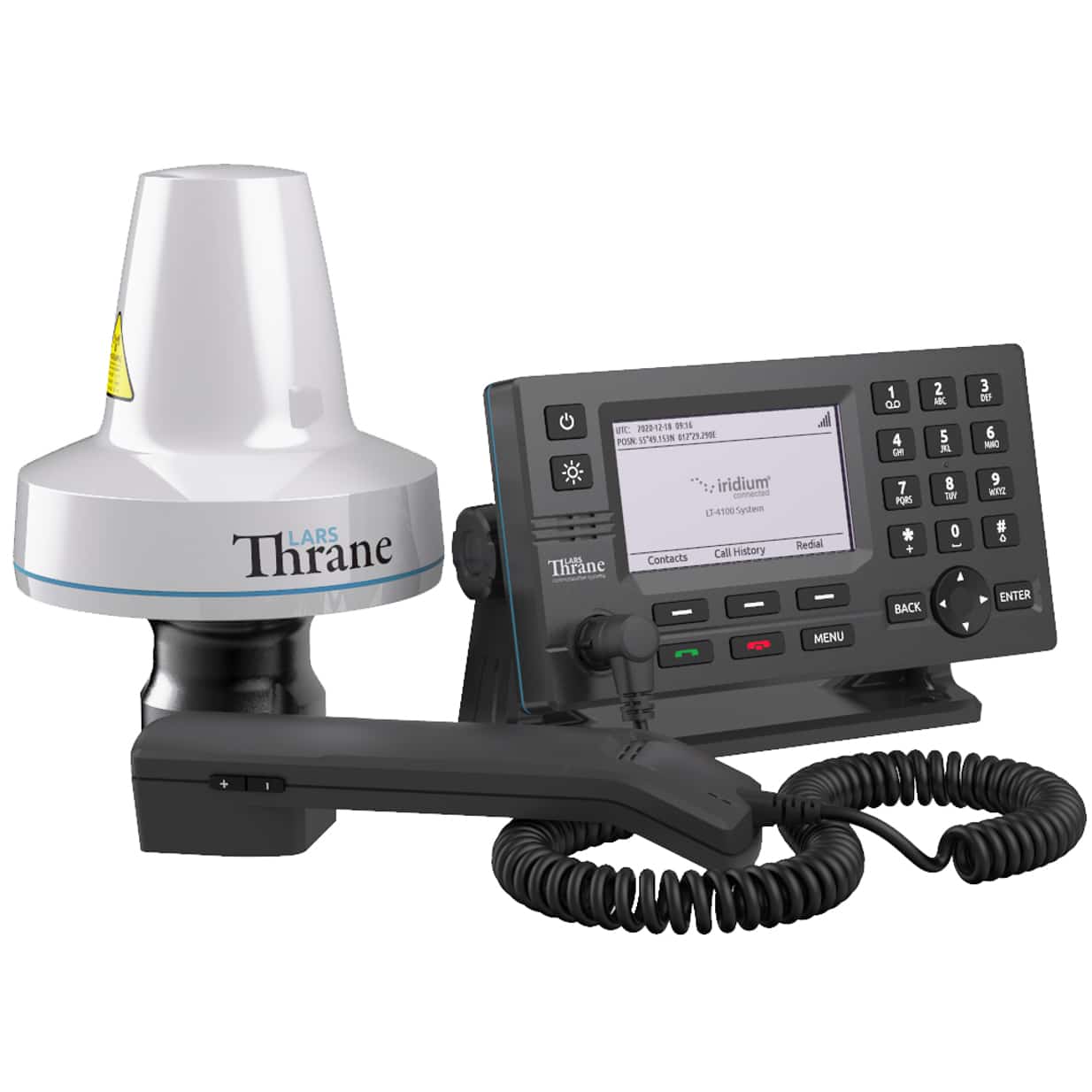

Iridium LT-4100L, up to 500m antenna cable

4.690,00

Delivery time: 1 - 2 Weeks

Iridium LT-4100L, antenna cable length up to 500 m.

The LT-4100L satellite phone system from Lars Thrane supports Iridium Certus 100 data service on main land. The robust and high-quality workmanship predestines the device for demanding use at and for long-term emergency communication. The LT-4100L offers contemporary options for connecting smartphones or telephone systems. Last but not least, the unusually long maximum cable length for passive satellite antennas distinguishes the LT-4100L for flexible installation in a wide variety of situations.

Features

  • 2 voice lines
  • Support external SIP PABX and SIP handsets, smartphones (up to 8)
  • POTS through Analogue Telephone Adaptors (ATA)
  • Data 88 kbps download / 22 kbps upload
  • Support external LAN Wi-Fi Access Points
  • Supports Iridium Mail app (Android and iOS via RedPort Optimizer WiFi)
  • Firewall and user authentication for high level of security
  • Web user interface for configuration and maintenance
  • The LT-4100 will be delivered without Bluetooth until further notice! Bluetooth interface for voice, SMS and data (PAN profiles)
  • High quality microphone, speaker, and equalizer for improved audio performance
  • Voice prompt audio feedback
  • Combined SAT / GNSS (GPS) single antenna cable
  • Large 4.3” TFT-LCD display supporting day and night modes
  • 2 years warranty

For telephone usage you need an Iridium Certus Land Postpaid SIM-card for a Certus Land 100 contract for land based usage.
Use at sea is definitely excluded with the Iridium Certus Land Service.

Required accessories for LT-4100L

Optional accessories for LT-4100L

Data connection
  • Standard IP 88 kbps download / 22 kbps upload
Interface an connectors
  • 1x RJ45 Ethernet LAN for data, SIP voice calls, service and maintenance
  • 1x RS499 (10 pin) supporting external ringer and radio silence
  • Connector for hand set
  • Antenna connectors Terminal N female Antenna N female
Power supply and consumption
  • Input 12-24 VDC (2.2-1.7 A), recommended 24V DC with minimum 2A.
  • Transmit 41W max. Standby 21 W max. Sleep mode 0.1 W max.
Antenna specification
  • Maximum conducted power:  40.0 dBm
  • Gain:  3.0 dBi
  • Antenna radiation: Omnidirectional
Dimensions and weight
  • Control unit Weight 0.67 kg Dimensions 224 x 120 x 70 mm
  • Hand set Weight 0,30 kg Dimensions 209 x 53 x 38 mm
  • Antenna Weight 1.39 kg Dimensions Ø162 mm x 182 mm
Environment
  • Control unit Protection IP32 Operational temp. -15°C to +55°C
  • Handset Protection IP32 Operational temp. -15°C to +55°C
  • Antenna Protection IP67 Operational temp. -40°C to +55°C
  • LT-4110 Control Unit
  • LT-3120 Handset
  • LT-3121 Cradle

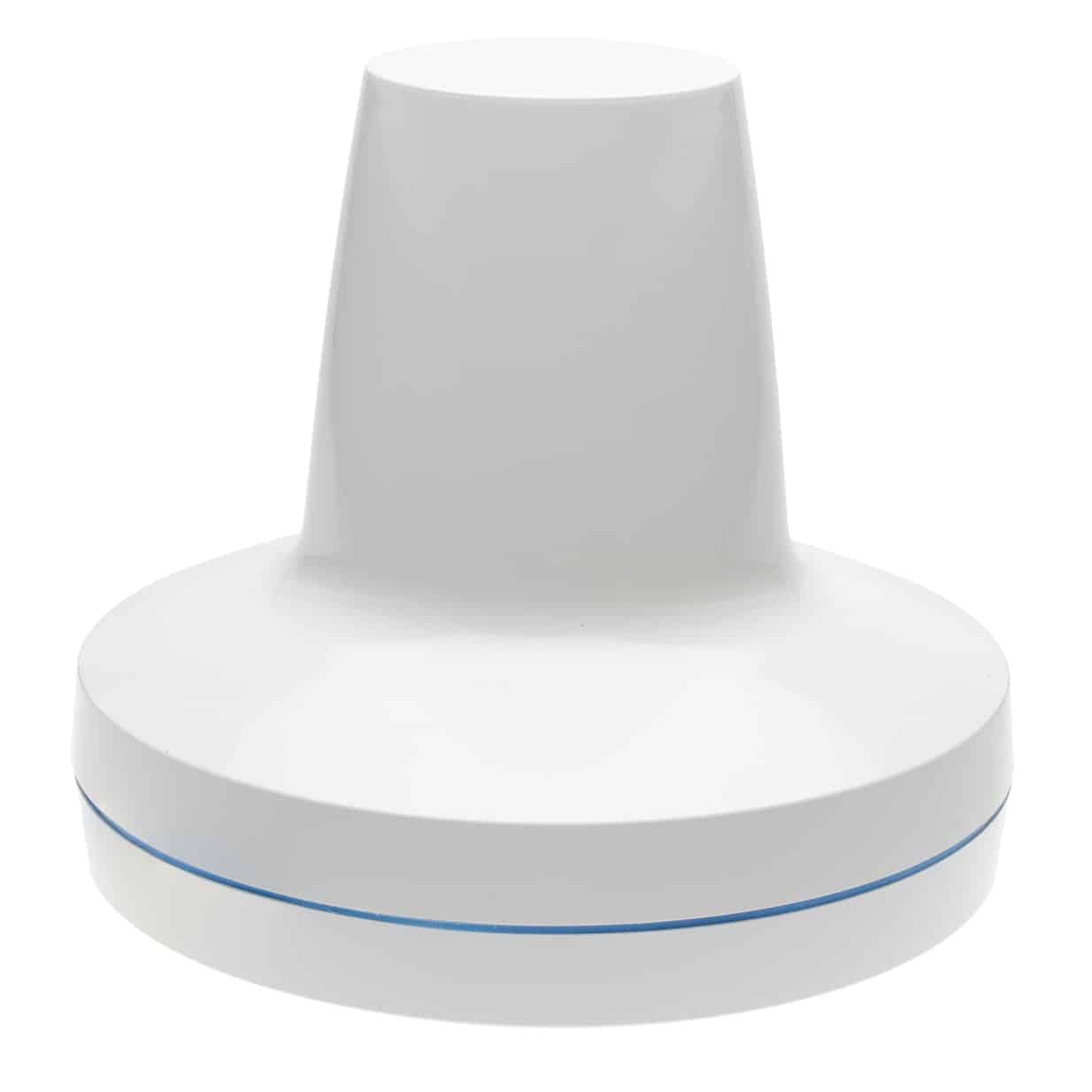

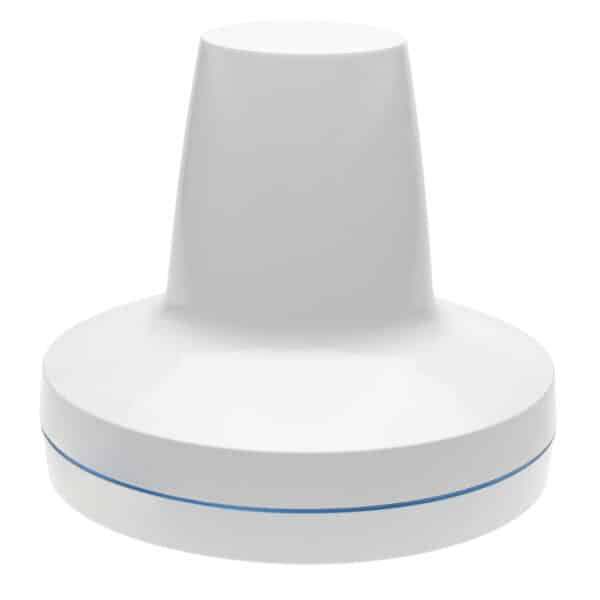

  • LT-4130L Antenna Unit

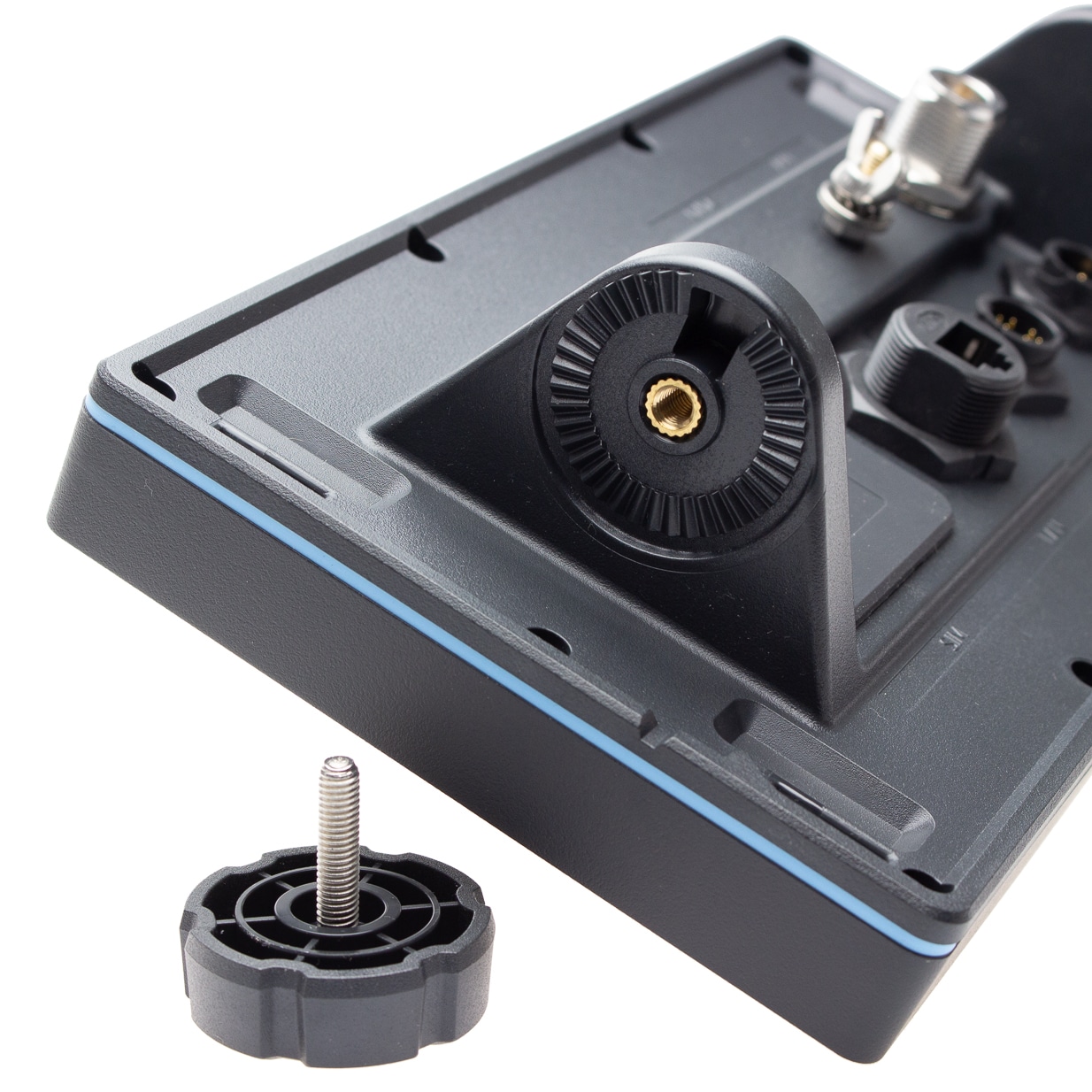

  • Bracket Mount for control Unit

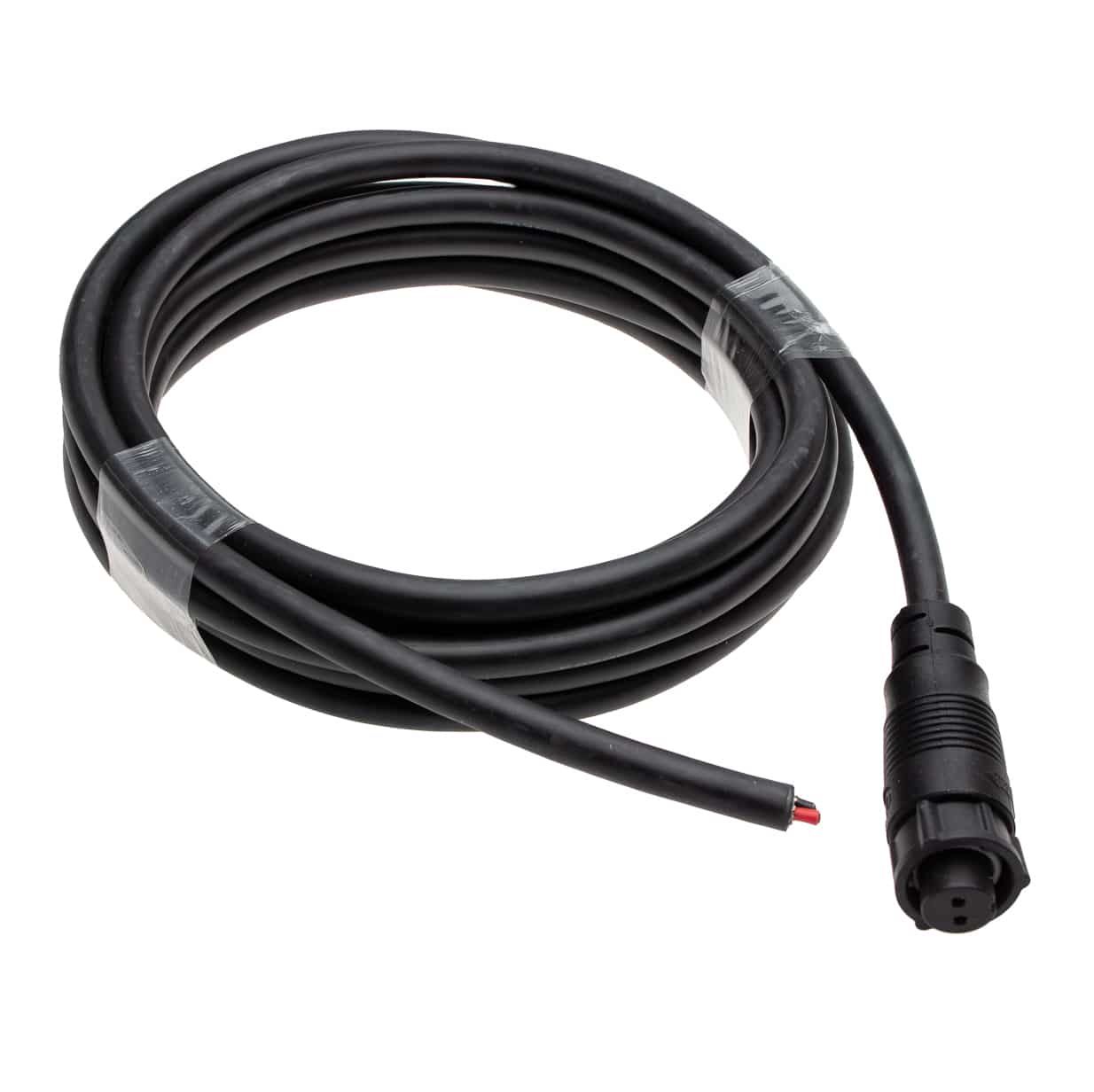

  • 3m Power Cable
  • User & Installation Manual
  • 2 year warranty
Stock Keeping Unit1934
Weight4,1000 kg
Dimensions48 × 25 × 19 cm
HS-Code85171200
Country of manufactureDenmark
MPN90-102825
