Intellian OW10HL Compact Land Fixed

6.750,00

Delivery time: 1 - 2 Weeks

- +

Intellian OneWeb Half Duplex (Compact) system with flat single antenna for fixed stationary use on land (Land Fixed)

Worldwide high-speed Internet via OneWeb satellite system with data speeds of up to 50 Mbps down, 10 Mbps up link. The robust design recommends Intellian OW10HL for professional use in emergency communications for municipalities, NGOs and companies. In Europe and worldwide.

For usage of Intellian OW10HL you need an One Web Land Fixed contract for stationary location on main land – can be found in the Documents tab above.

Mandatory accessories for Intellian OW10HL system

  • CNX-BB User Terminal with AC and DC power supply options
  • CNX-WIFI User Terminal with AC and DC power supply options
  • CNX-RACK User Terminal with AC and DC power supply options
  • Antenna cable up to 250 m depending on your choice of CNX User Terminal and power supply options. Apropriate cable lengths are offered on CNX User Terminal sites.

Optional accessories for Intellian OW10HL System



Data rates (provided by device)
  • Downlink up to 75 Mbps
  • Uplink up to      14 Mbps

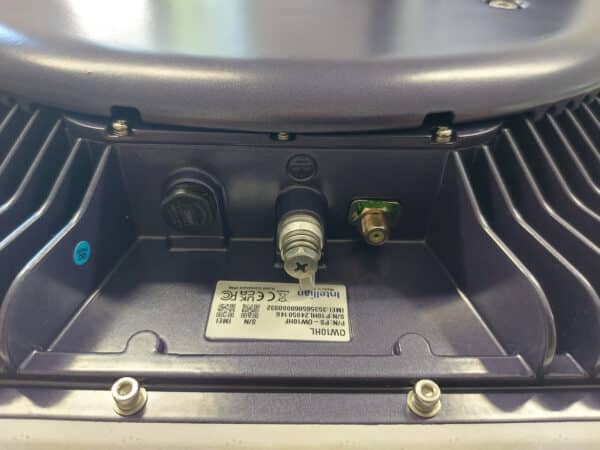

Interfaece, connector
  • F-port (antenna cable)
  • SMA-port (optional external R-GNSS)
Power supply
  • via antenna7 data cable
  • 56 V DC, 165 W, max. 180 W
Dimension and weight
  • Dimension 56 x 45 x 12 cm
  • Weight        12.2 kg
Environment
  • Protection            IP66 conformity
  • operation temp. -40°C to +55°C

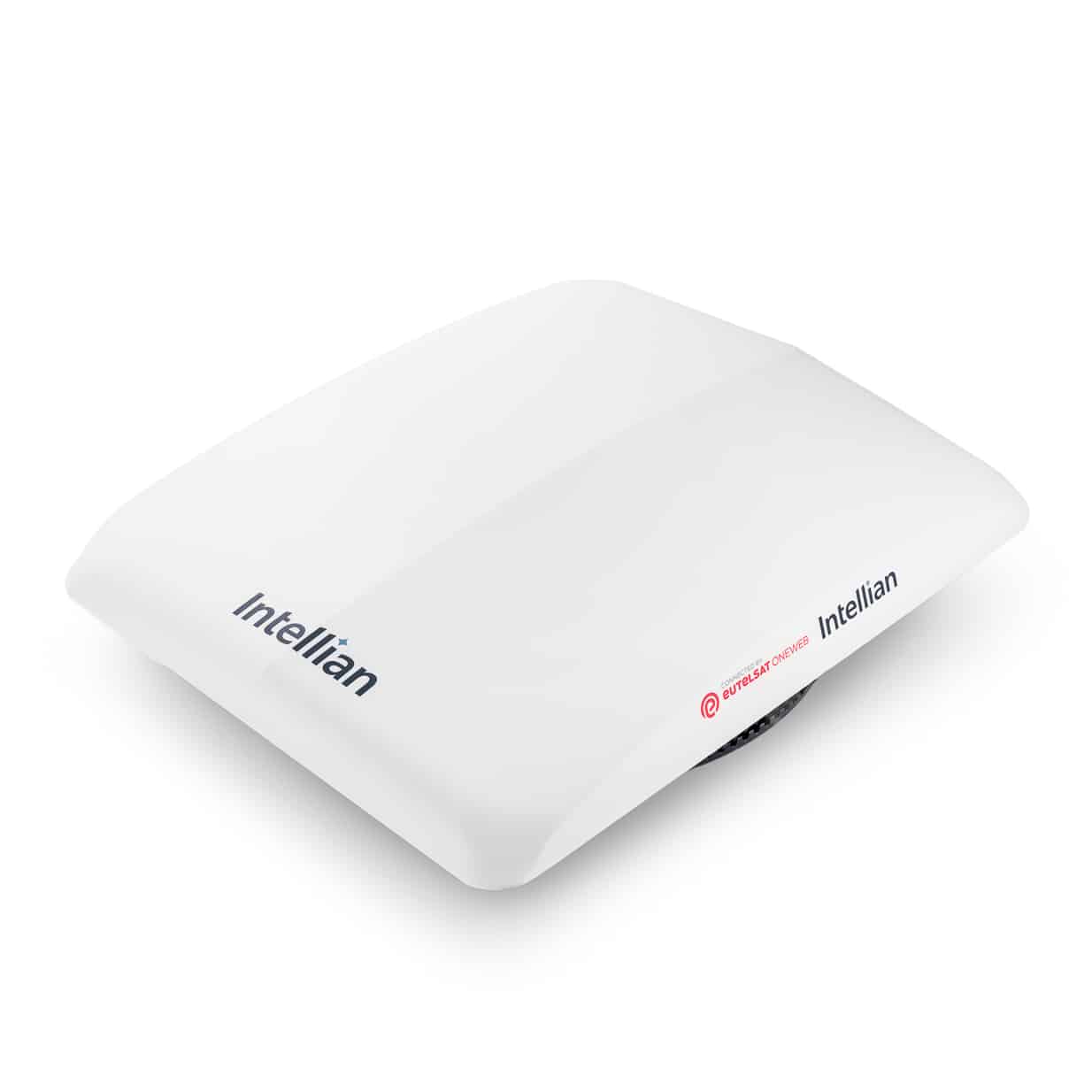

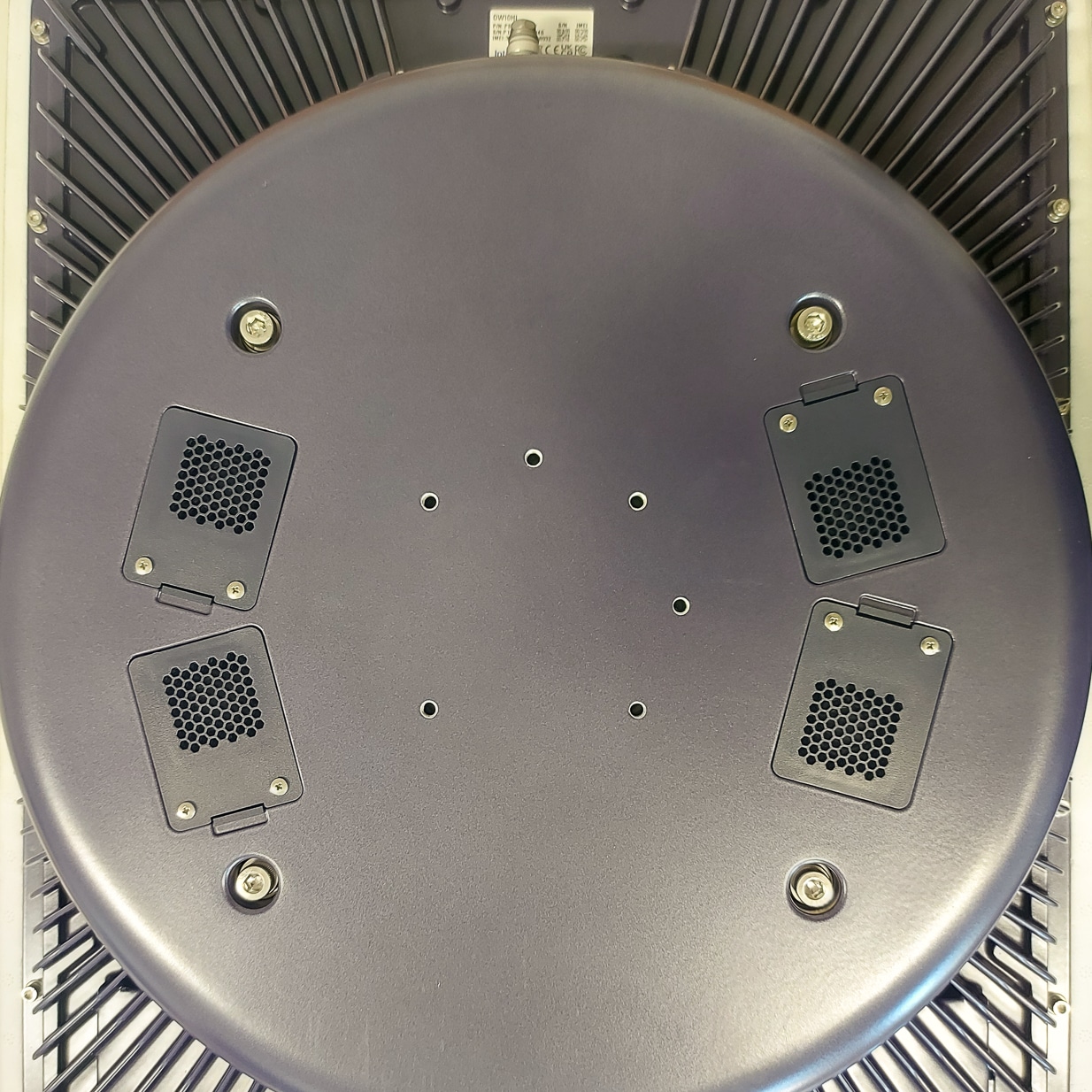

  • Intellian single compact flat panel antenna (PS-OW10HF)

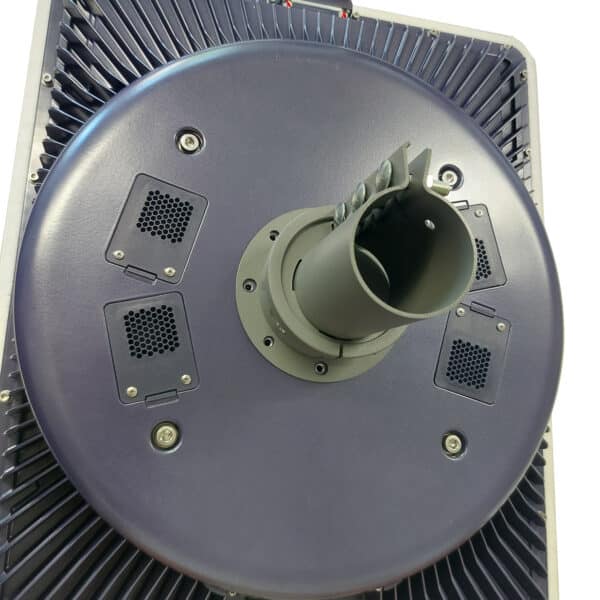

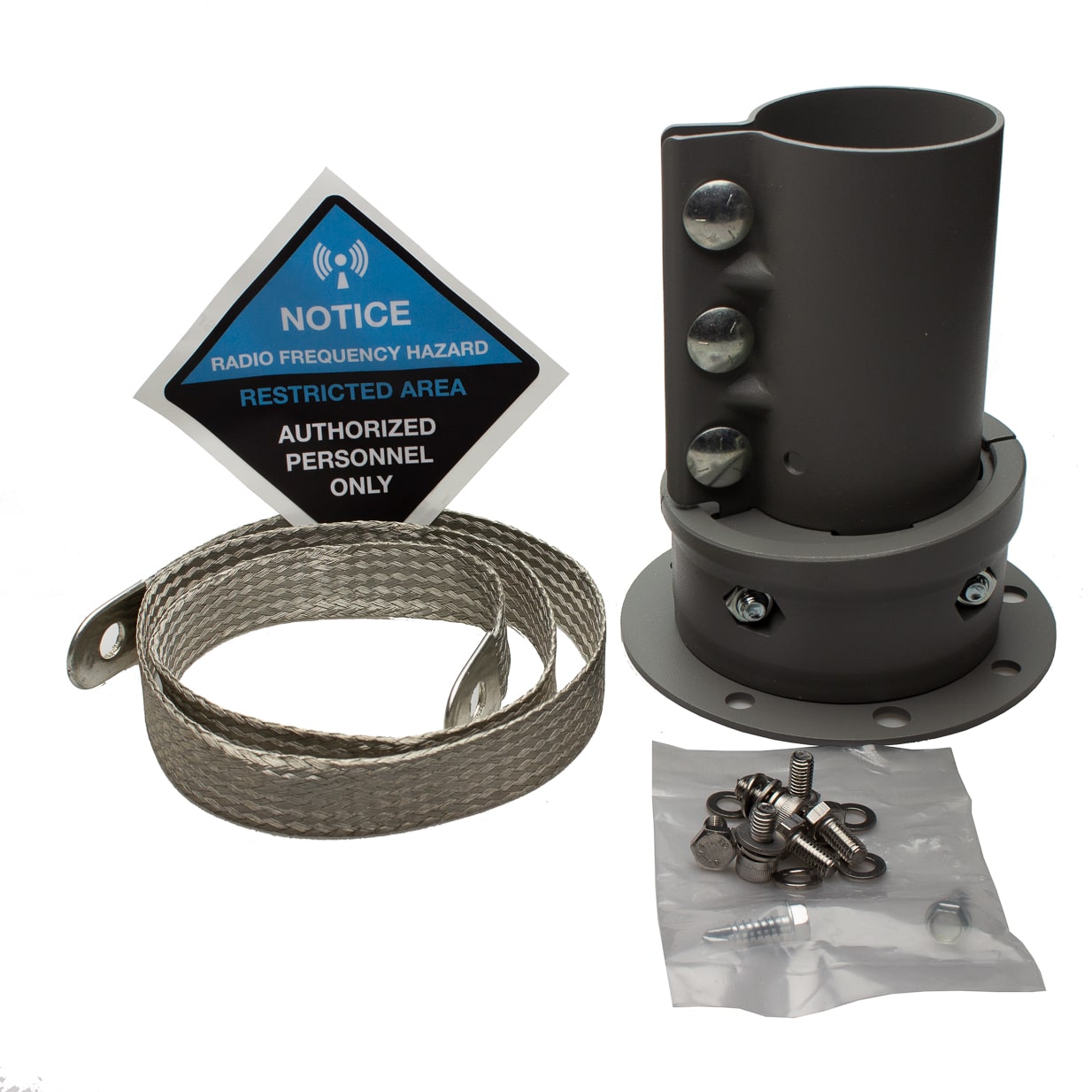

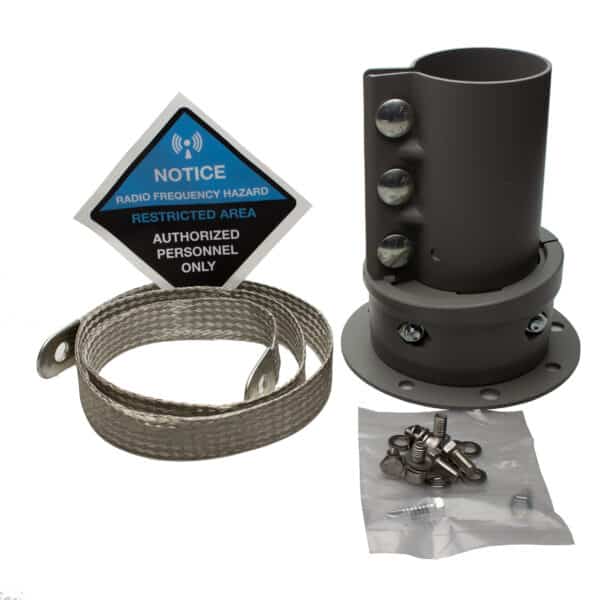

  • Adjustable plate (OW-6017) for pole Ø 60 mm
  • 1 m flexible grounding braid
  • 5 m antenna/ data cable
  • 1 * external SMA cap
  • RF hazard notice sticker
  • Screws, flat and spring washers
  • Quick Installation Guide
Stock Keeping Unit8000
Weight20,5 kg
Dimensions82 × 58 × 32 cm
HS-Code85176200
Country of manufactureSouth Korea
MPNPS-OW10HF
Manufacturer information

Manufacturer according to General Product Safety Regulation (EU) 2023/988:
Intellian B.V.
Tempelhof 12
3045 PV, Rotterdam
The Netherlands
+31-1-0820-8655
