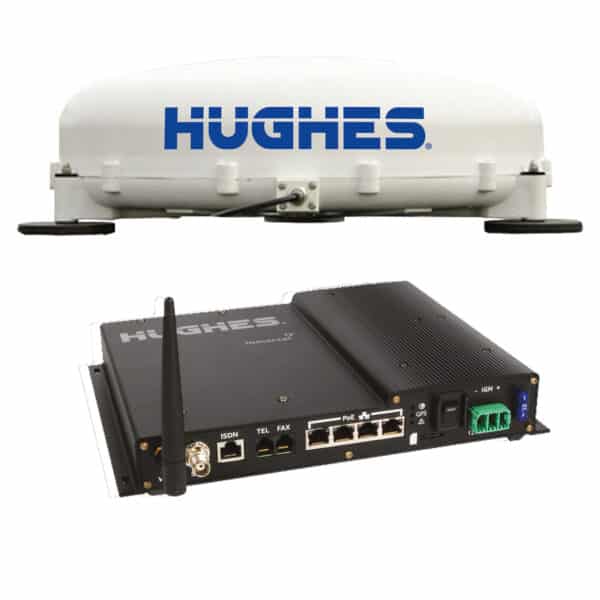

Hughes 9450-C10 Inmarsat BGAN Terminal

• 4 kbit/s AMBE +2
• 3,1 kHz audio 64 kbps, look angle > 20°

• ISDN  64 kbps, look angle > 20°
• Standard IP   up to 492 kbps
• Streaming IP up to 256 kbps
  256 kbps look angle > 45°

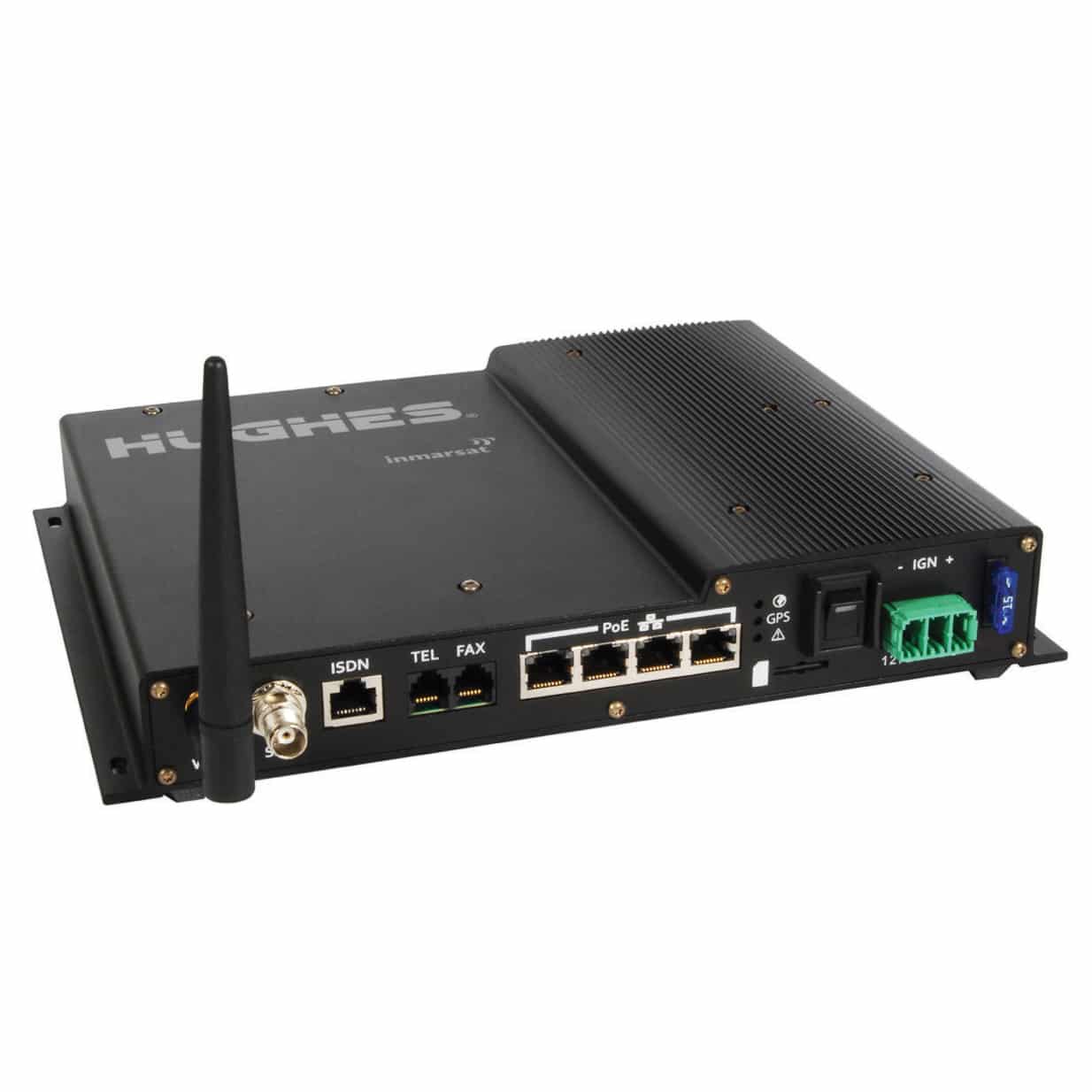

Interfaces

• 4 x 10/100 Mbps Ethernet RJ45, PoE
• Wi-Fi
• 1x ISDN RJ45
• 2 x RJ-11 phone / fax
• Antenna
  Terminal TNC female
  Antenna TNC female

Power supply

• DC input 12 / 24 V
• Consumption (excl. PoE devices)
  Idle           32 W
  Transmit   65 W max.

• Weight
  Terminal  2.3 kg
  Antenna  5.5 kg

• Dimensions
  Terminal    281 x 234 x  46 mm
  Antenna         ∅ 477x 152 mm

Environment

• Ingress protection
  Antenna  IP56
• Operational temp. -25 to +55°C
• Survival temp.       -40 to +80°C
• Relative humidity:   95% non-condensing at 40°C
• Vehicle in motion
  Wind  200 km/h, exception for magnet mount 160 km/h
  Turning rate 40°/s
  Turning acceleration 50°/s²
