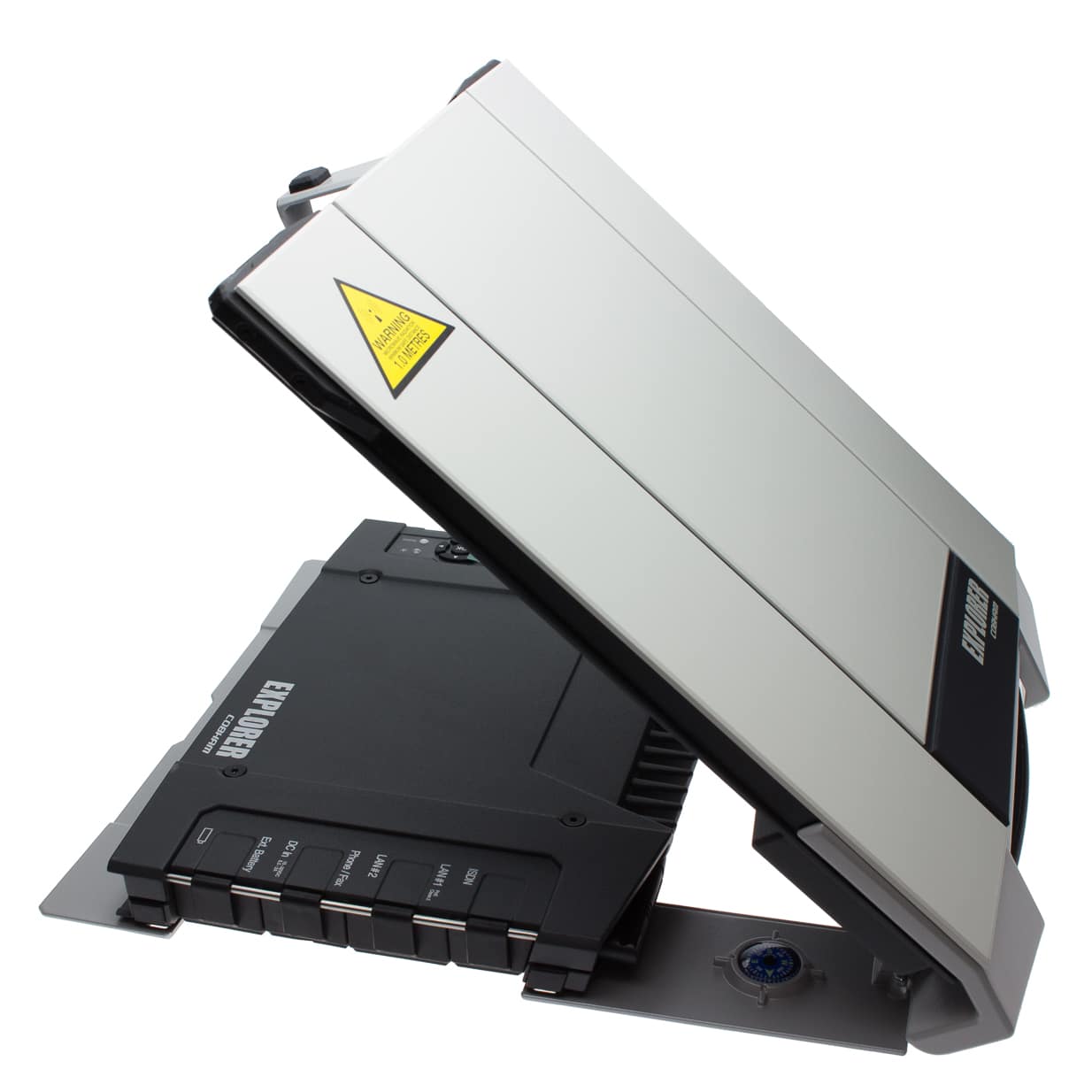

Cobham EXPLORER 710 Inmarsat BGAN Terminal

9.650,00

Delivery time: 1 - 2 Weeks

Satellite terminal for highend data communication on mainland

The 3.2 kg light weight Inmarsat BGAN EXPLORER 710 is Cobham’s top-of-the line model for satellite data communication on mainland

Features

  • EU RED compliant
  • Multi-user-terminal
  • Remote activation
  • Remote management
  • Phone, VoIP, Fax, VPN, internet, email
  • EXPLORER connect App for Mac iOS und Android supporting VoIP (SIP softphone, built-in SIP server)
  • Simultaneous one voice – and multi data connections
  • Video conference and video streaming
  • User defined data profile incl. assignment of bandwidth for services, e. g. VoIP and separate APN’s
  • Web Interface (languages UK, FR, DE, ES, RU) and Pointing Assistance.
  • Double BGAN-dataspeed via connecting 2 devices (Bonding)
  • Connecting of an additional battery (hot-swap)
  • Extension for GSM LTE Modem (optional)
  • GNSS over GPS or GLONASS

For usage of the BGAN EXPLORER 710 you need a SIM-card for postpaid-contract (see documents) or  prepaid-voucher too.

Additional accessories for EXPLORER 710 e. g.

If you need this device for a short time, explicitly ask for our rental service, please.

Data connection
  • Standard IP up to 492 kbps
  • IP Streaming 32, 64, 128, 256 kbps and X-Stream
  • High Data Rate Streaming up to 650 kbps
  • Voice analogue 4 kbps ISDN UDI (3.1 kHz audio) 64 kbps

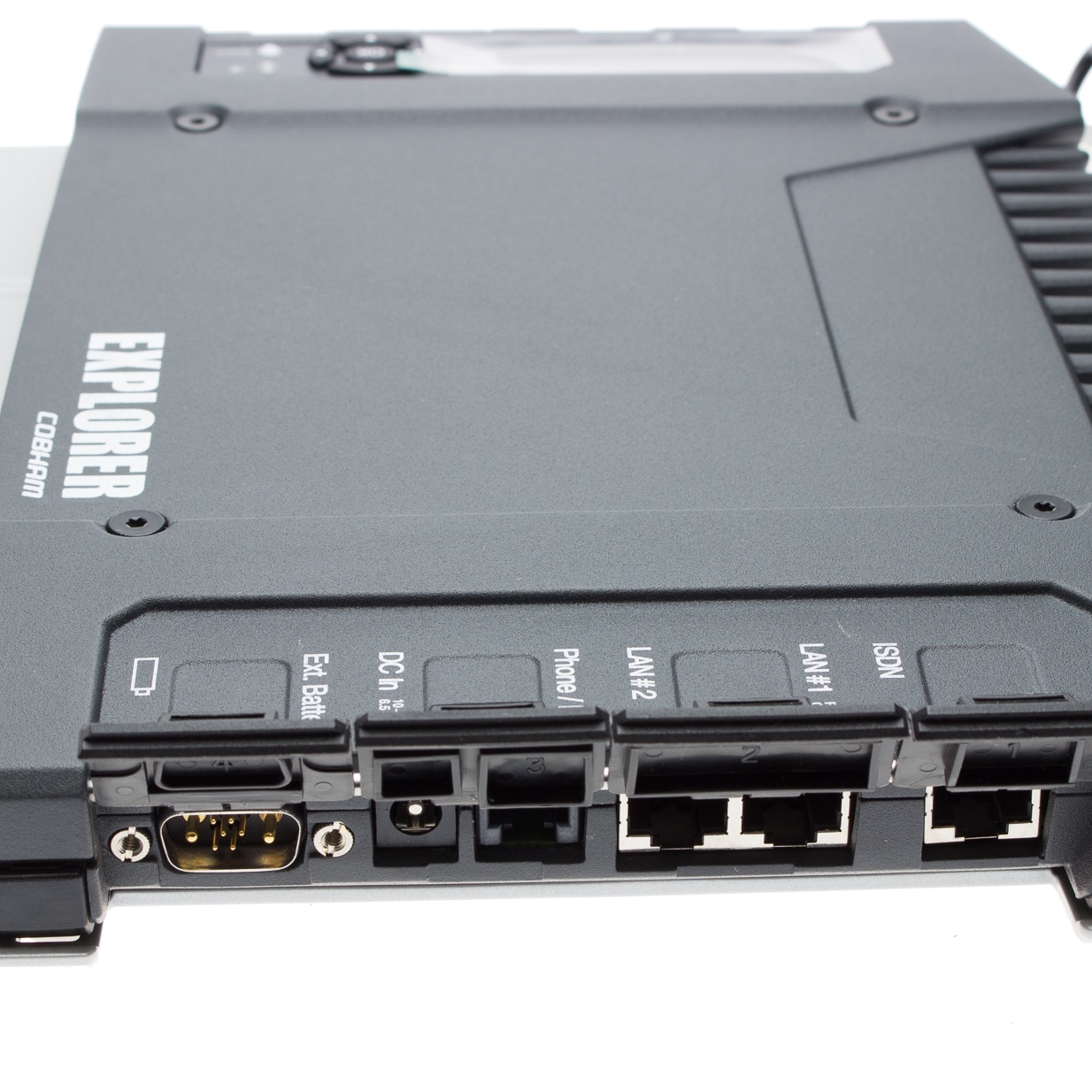

Interfaces and connectors
  • 1x Phone interface analogue  (RJ11, PBX)
  • 1x ISDN interface (RJ45), up to 8 units and total 1W power
  • 2x Ethernet (RJ45), max 100 m cable with 1x PoE (PoEIEEE 802.3af 2003 Edition, Class 3 up to 15.4 W)
  • WLAN Access point IEEE 802.11 b/g/n up to 10 users
  • 1xUSB host (vers 2.0), max 2A charging
  • Antenna connectors terminal TNC female, antenna TNC female
Power
  • DC input range 10 - 32 V
  • AC / DC input 100-240V AC, 47-63Hz, 64W, output 19V DC
  • Li-Ion battery 5,700 mAh Time for (25°C) Standby 24 h Transmit  2h 30min @ 144 kb/s Transmit  1h 30min @ 650 kbps Receive   3h 30min @ 492 kbps
  • Power consumption Intelligent Power Management 65W (max.)
Dimension and weight
  • Weight (complete incl. battery) 3.2 kg
  • Weight (only transciever) 1.66 kg
  • Dimension 332 x 279 x 54 mm
  • Dimension (only transciever) 274 x 225 x 40 mm
Environment
  • Protection terminal IP52, antenna IP66
  • Operational temp. -25°C to 55°C Storage temp.       -40°C to 80°C (excl. battery)
  • Relative humidity: 95% non-condensing at 40°C
  • BGAN Explorer 710 terminal
  • BGAN Explorer 710 antenna

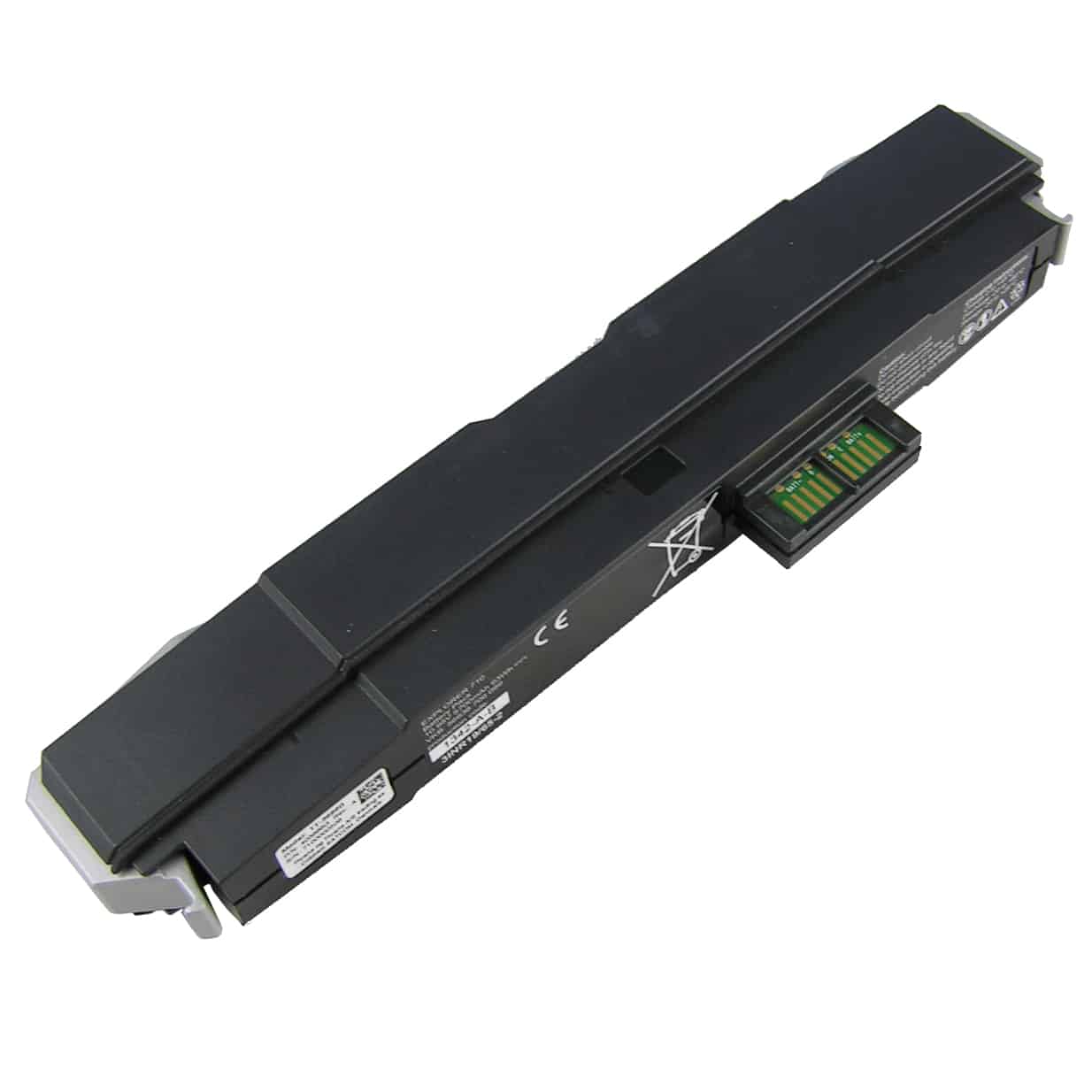

  • Rechargeable lithium ion battery 5700 mAh
  • Antenna cable 0.3 m
  • Ethernet cable 1 m
  • 100-240 V AC/DC Power Supply
  • Quick start guide in different languages (UK, FR, DE, ES, RU)
Stock Keeping Unit479
Weight5,5000 kg
Dimensions40 × 34 × 15 cm
HS-Code85176200
Country of manufactureDenmark
MPN403720B-00506
