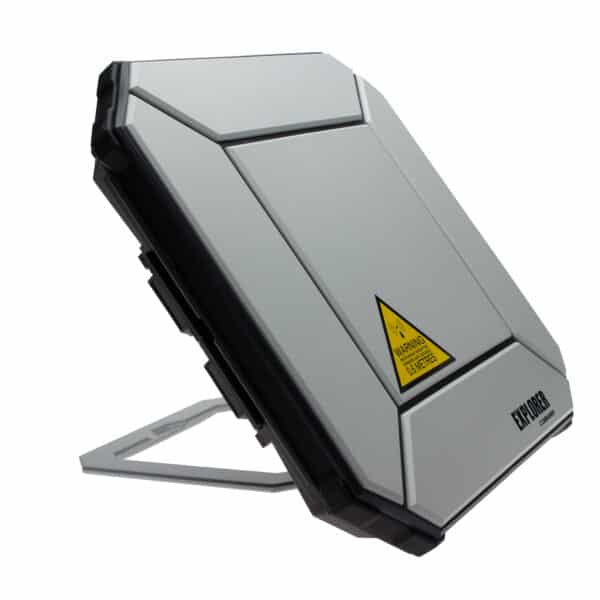

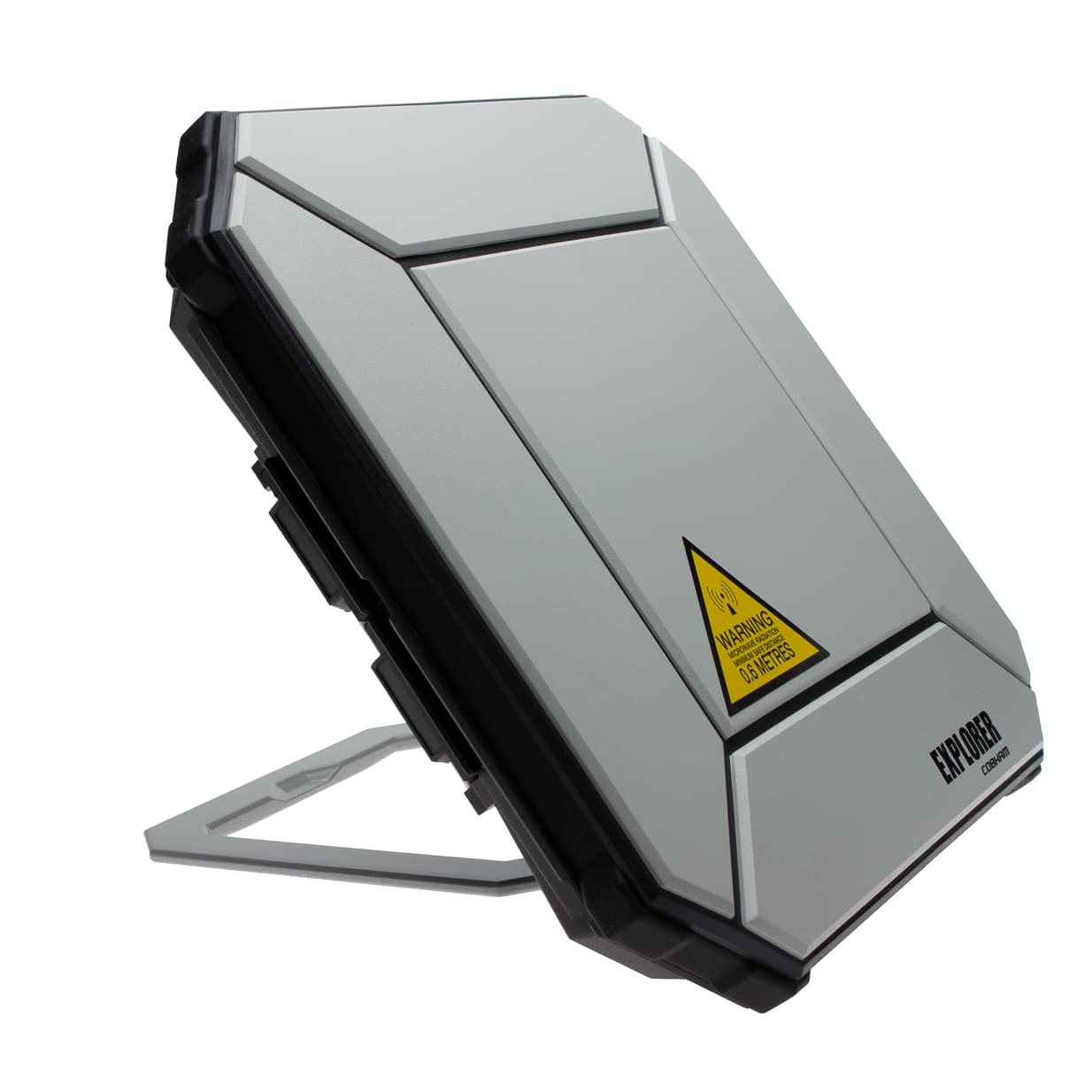

Cobham EXPLORER 510 Inmarsat BGAN Terminal

3.725,00

Delivery time: 1 - 2 Weeks

Satellite terminal for smartphones and tablets (for mainland use)

Only 1.4 kg weight, the BGAN EXPLORER 510 is a complete mobile office. Use your mobile devices everywhere even if your GSM provider does not provide more coverage. Internet, email and telephone are controlled by app in Inmarsat satellite network without having to leave familiar surroundings in your smartphone or tablet. After pointing the antenna the device is operational in 2 minutes and provides a data transfer rate of up to 464 kbps.

Features

  • Internet up to 464 kbps up/ down, email, VoIP, SMS (160 character)
  • EXPLORER connect App for Mac iOS und Android supporting VoIP (SIP softphone, built-in SIP server)
  • Streaming IP 32, 64, 128 kbps
  • Video conferencing and streaming
  • high reliable design, dust and splash proof (IP 66)
  • Multi-User-Terminal
  • Built-in web server for easy setup and configuration

For usage of the BGAN Explorer 510 you need a SIM-card for postpaid-contract (see documents) or prepaid-voucher too.

Additional accessories for EXPLORER 510

Data transfer
  • data transfer up to 464 kbps (or 3.40 MByte per minute)
  • IP Streaming for 32, 64, 128 kbps
  • voice standard 4 kbps premium 3.1 kHz audio, 64 kbps
Interfaces
  • WLAN access point IEEE 802.11 b/g/n
  • 1x USB (vers. 2.0)
  • 1x RJ-45 over USB-Ethernet converter adaptor
Power supply
  • DC input 10.5-32 V
  • Li Ion battery standby 36 h transmit time 2 h 15 min
  • USB charging up to 1 A
  • power consumption standby  0.8 W transmit   14 W (typical) Charging 38 W amx.
Dimensions and weight
  • Weight: 1.4 kg
  • Dimensons: 202 x 202 x 51.8 mm
Environment
  • Ingress protection    IP66 compliant
  • Operational temp.    -25 bis +55°C
  • Storage temp.          -40 bis +80°C (ecl. battery)
  • Realtive humidity:   95% non-condensing at 40°C
  • BGAN Explorer 510 terminal incl. Li-Ion battery
  • 100-240VAC power supply
  • 10m power extension cable
  • USB to Ethernet Converter Cable
  • Quick Start Guide (ENG, FR, DE, ES, RU, JP and CN)
  • Webserver and embedded manual (ENG, FR, DE, ES, RU, JP and CN)

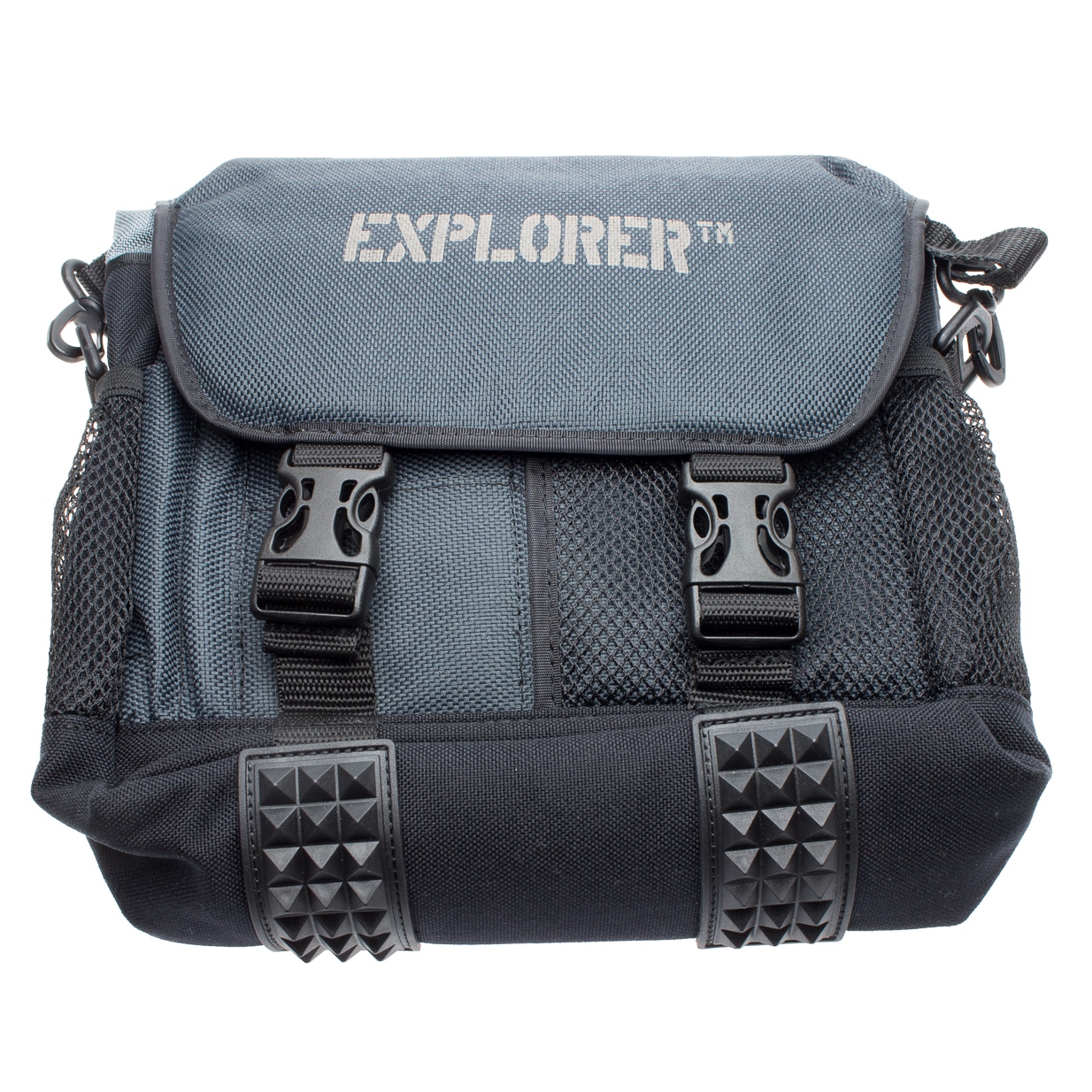

  • Explorer softbag
Stock Keeping Unit493
Weight3,3000 kg
Dimensions31 × 29 × 22 cm
HS-Code85176200
Country of manufactureDenmark
MPN403711A-00506
Manufacturer information

Manufacturer according to General Product Safety Regulation (EU) 2023/988:
m-cramer Satellitenservices, Matthias Cramer
Holzhofallee 7
64295 Darmstadt
Germany
email: info@m-cramer.de
Tel: +49-(0)6151-24784880

Due to transport and aviation regulations, the shipment of dangerous goods (batteries) may not be possible by air freight or at extra cost. When shipping batteries abroad we reserve the right to check the shipping costs and to charge a different price than indicated by the shop in each individual case. In case of different shipping costs, we will inform you in advance and ask you if you want to maintain your order.
