Cobham EXPLORER 325 Inmarsat BGAN Terminal

9.875,00

Delivery time: 1 - 2 Weeks

Satellite terminal for vehicle mount on mainland

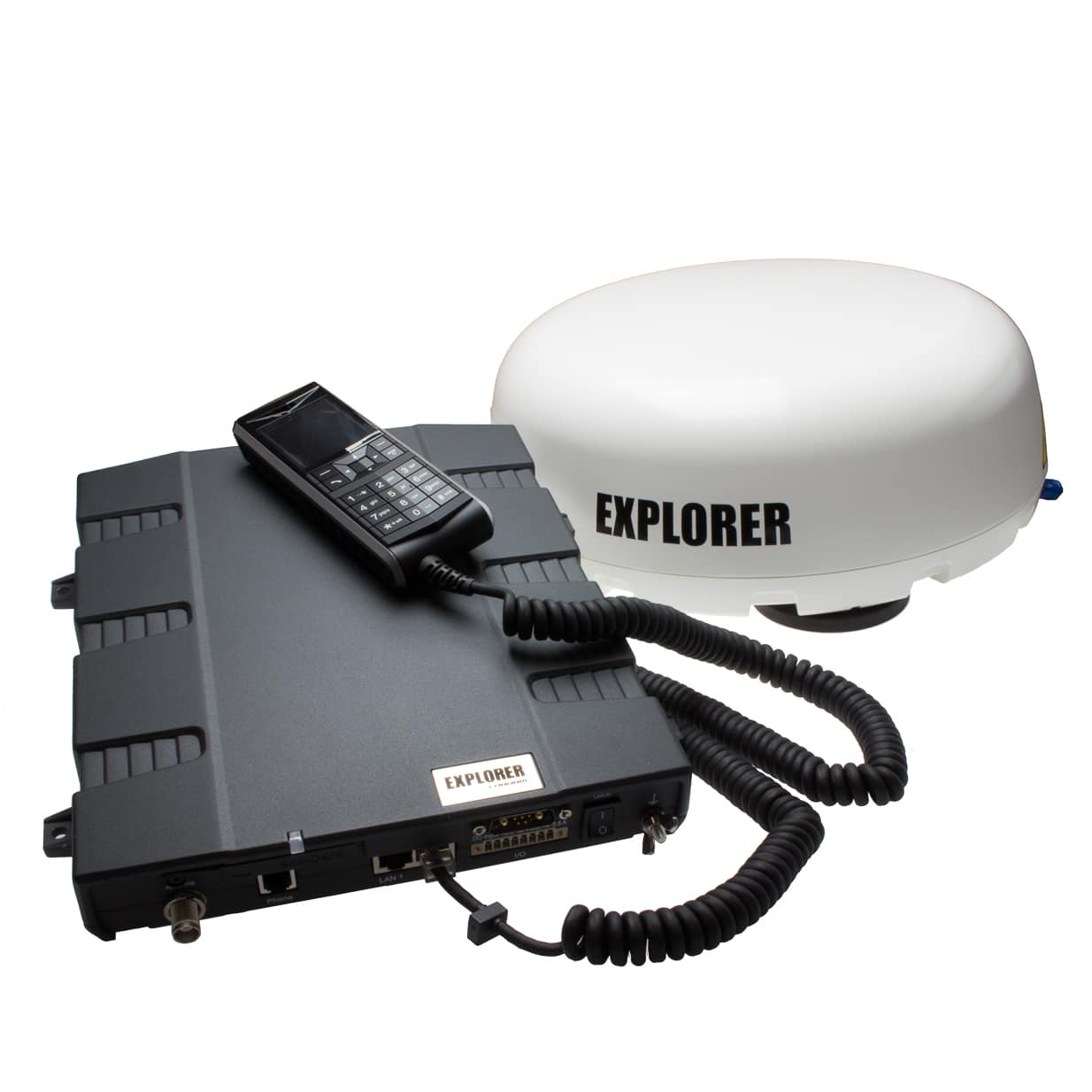

EXPLORER 325 has the smallest on-the-move BGAN antenna in the market. The system consists of three fully integrated units – a transceiver, an IP handset and a roof magnet mountable antenna.The antenna is compact and lightweight, ideal for vehicles on-the-move. It is designed for robust and durable use – and easy to carry along when traveling the world.

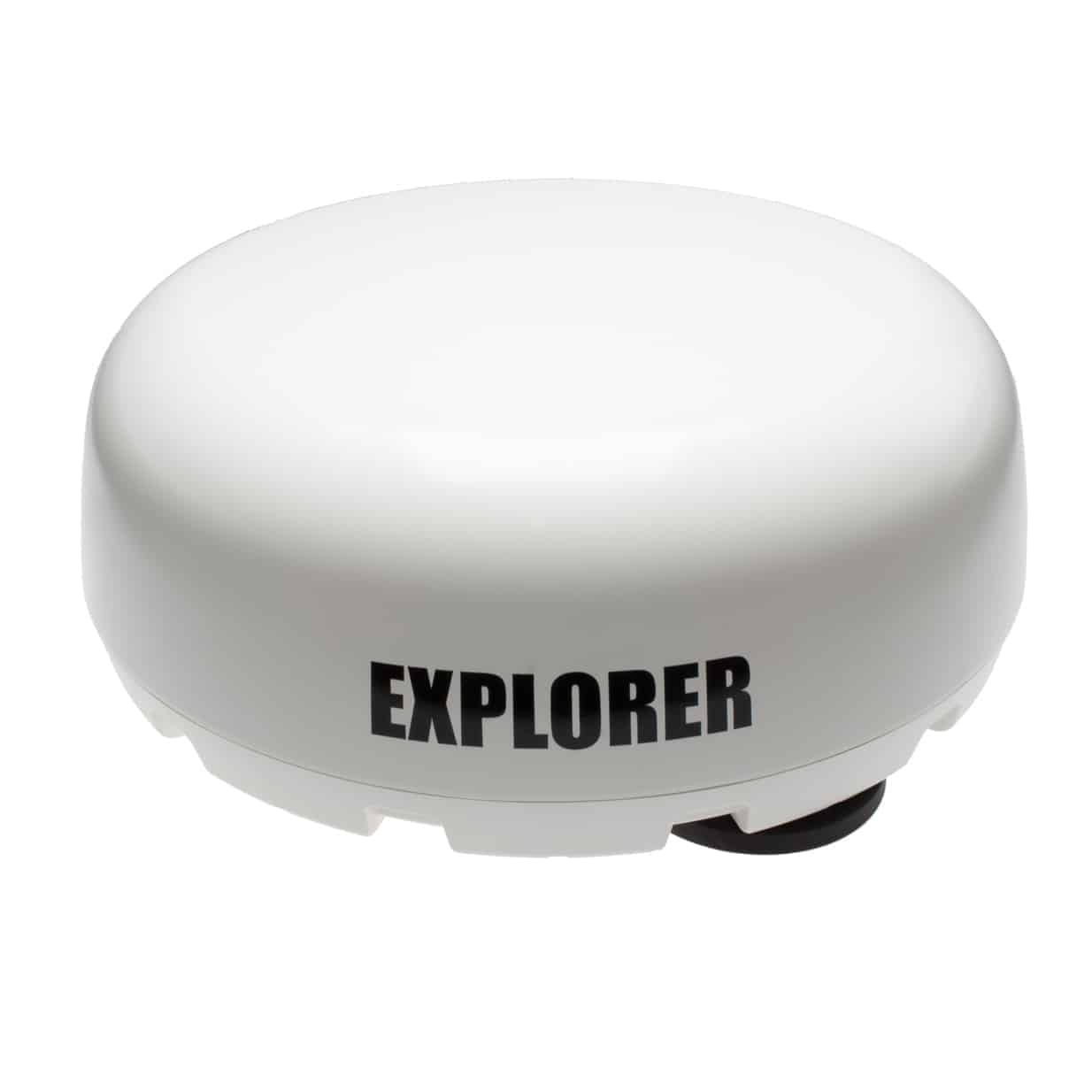

The antenna has built-in magnetic roof mounts.Simply place the antenna on the roof of the vehicle, connect it to the transceiver and the vehicle is turned into a mobile communication hub with global coverage.

Features

  • EU RED compliant
  • IP handset wired
    Phone Book
    Message indication
    Restricted dialing
    Traffic logging
    Built-in PBX Up to 16 handsets per terminal
  • Set-up and Router
    Webserver
    Built-in NAT Router
    Network Management
    SIP Server
    11 PDP contexts
    PPPoE

For usage of the BGAN EXPLORER 325 you need a SIM-card for postpaid-contract (see documents) or  prepaid-voucher too.

Additional accessories for EXPLORER 325

Data transfer
  • Voice: 4 kbps AMBE +2
  • Standard IP up to 384 kbps
  • Streaming IP 32, 64, 128 kbps
  • SMS 160 characters

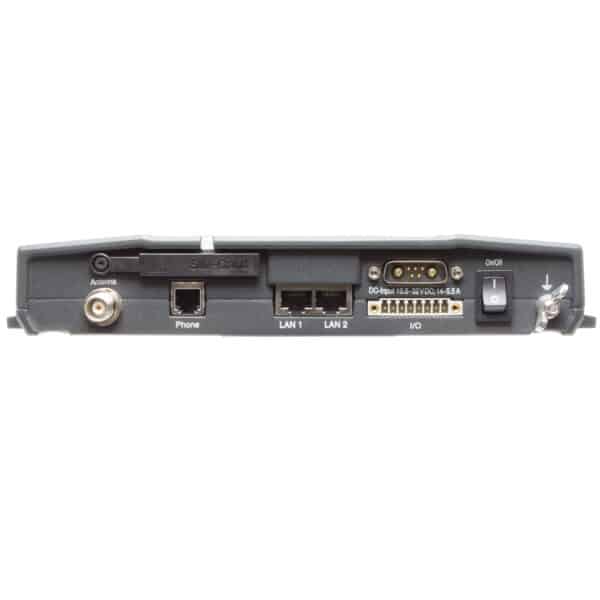

Interfaces
  • 2 x 10/100 Mbit/s Ethernet RJ45 PoE
  • 1 x RJ-11 phone- / fax, (built-in PBX)
  • 5 x I/O interfaces

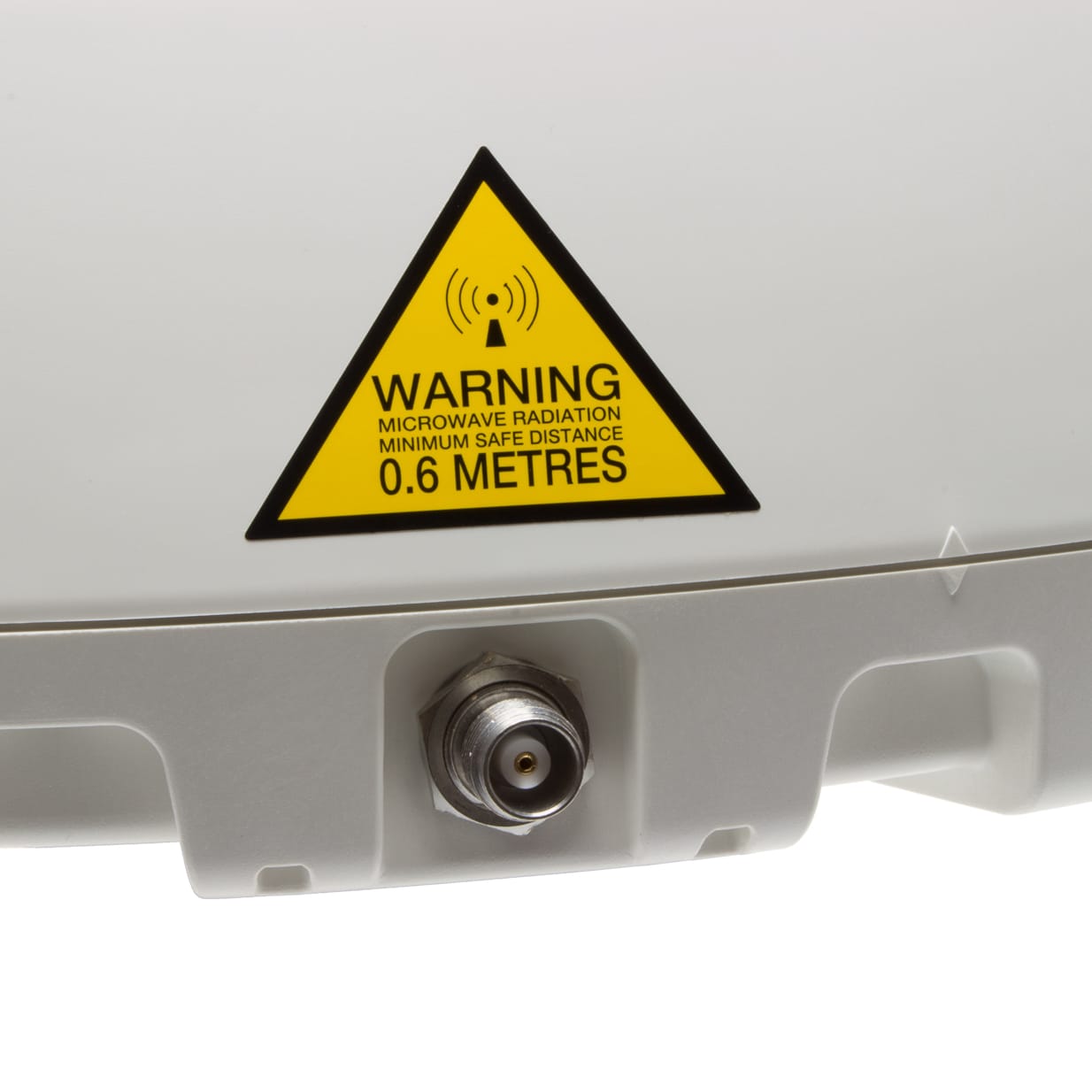

  • Antenna Terminal TNC female Antenne TNC female
Power supply
  • DC input 10,5 - 32 V
  • Consumption at 10 - 32 V (incl. antenna) 120W / 12V 150W / 24 V
Dimensions and weight
  • Weight Terminal  2.4 kg Antenna  4.5 kg
  • Dimensions Terminal    278 x 231 x 41 mm Antenna          ∅ 350 x 120 mm
Environment
  • Ingress protection Terminal  IP31 IP handset IP54 Antenna  IP 56
  • Operating temp.     -25 to +55°C
  • Storage temp.        -40 to +85°C
  • Humidity max.        95% non condensating at 40°C

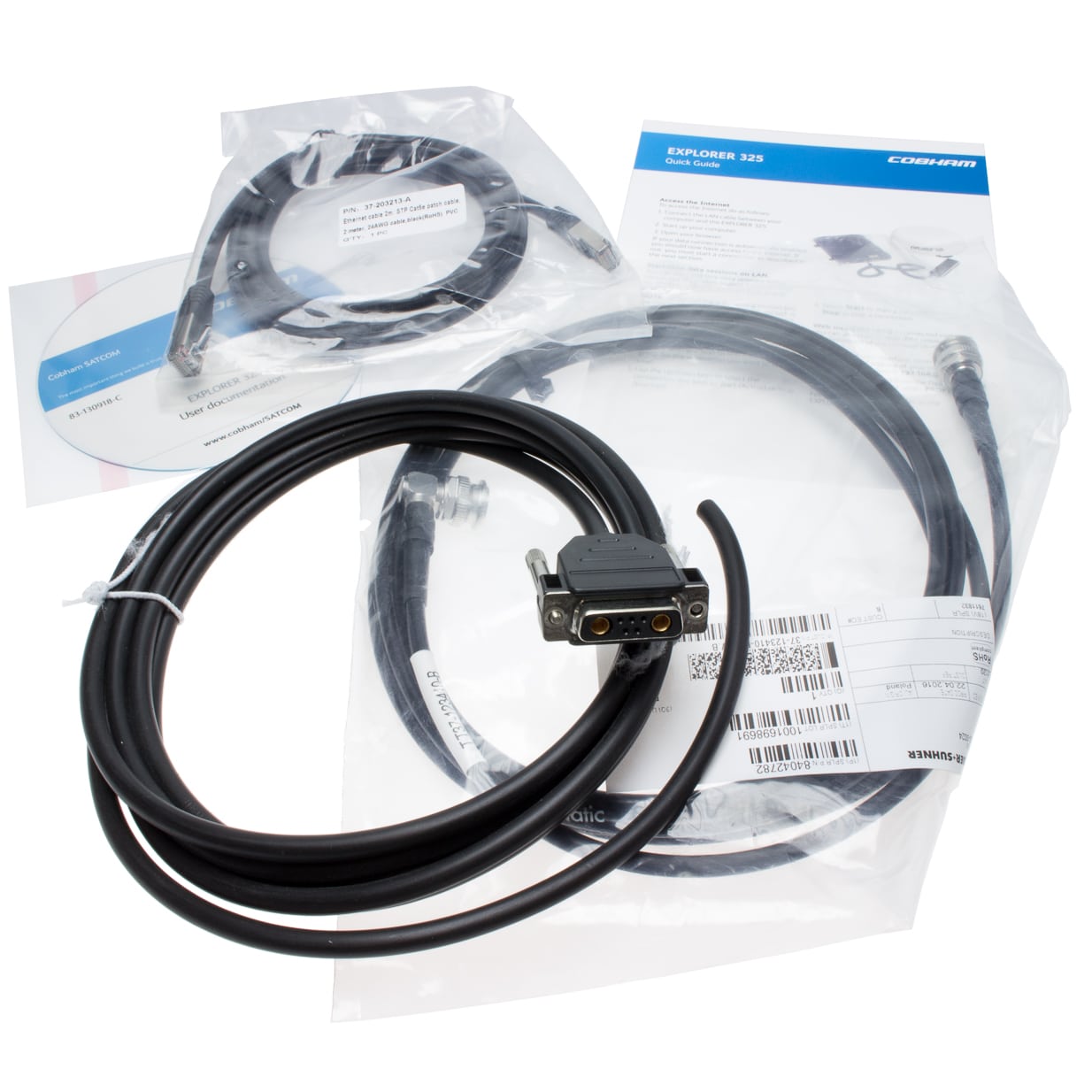

  • Explorer 325 Terminal

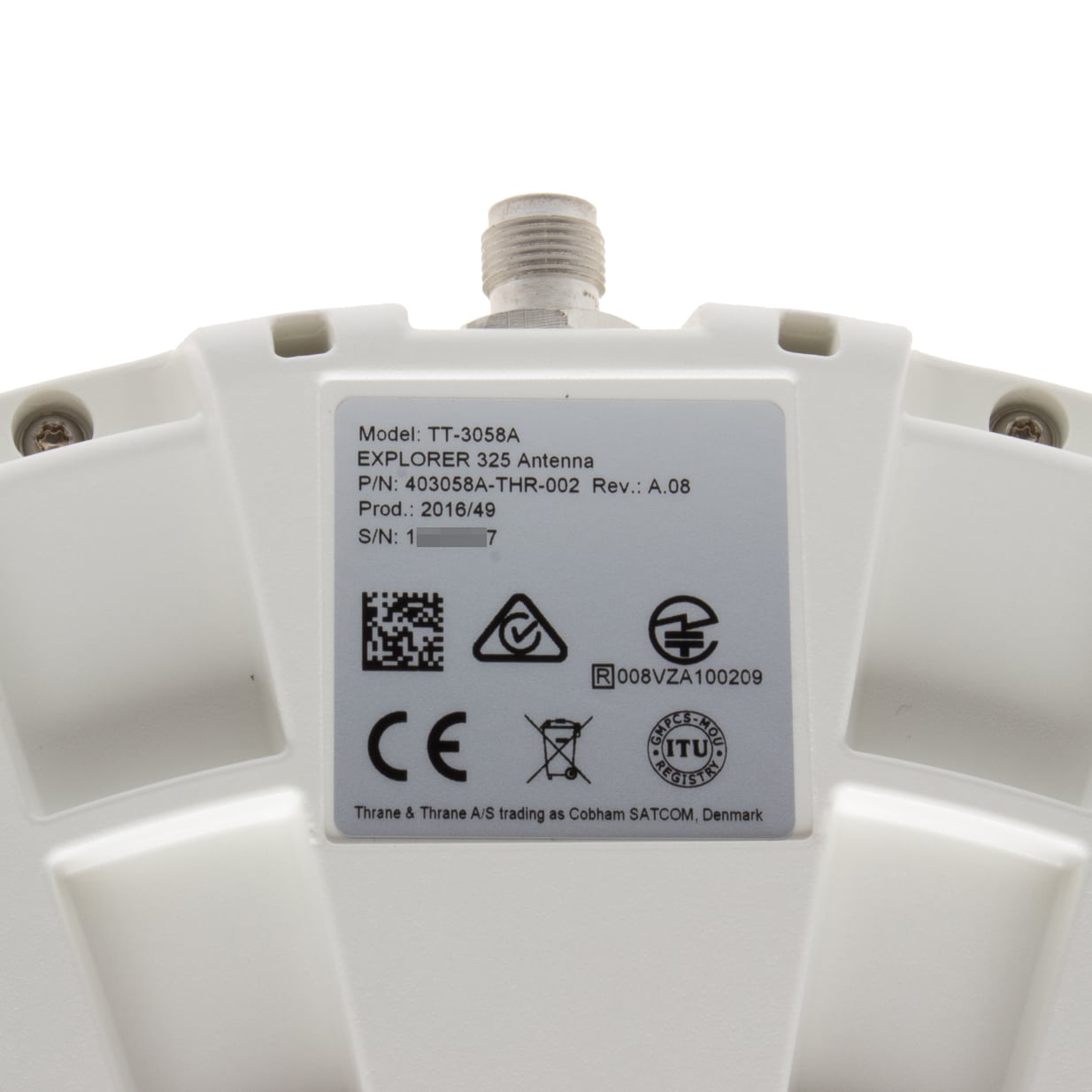

  • Explorer 325 antenna incl. auto-tracking and magnet mount, color white

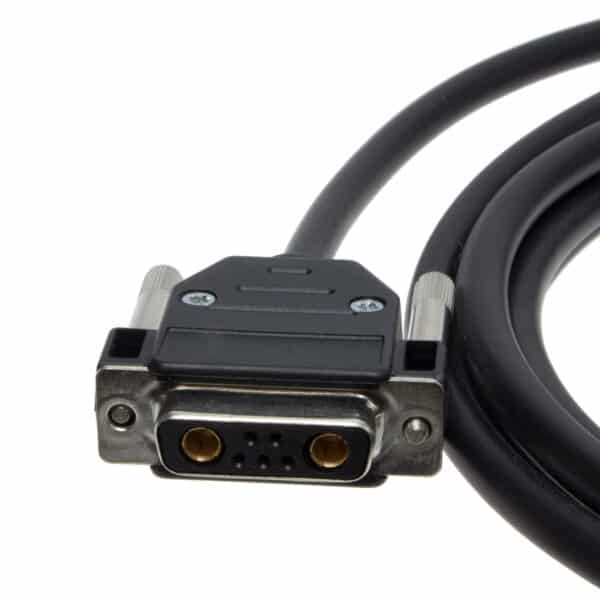

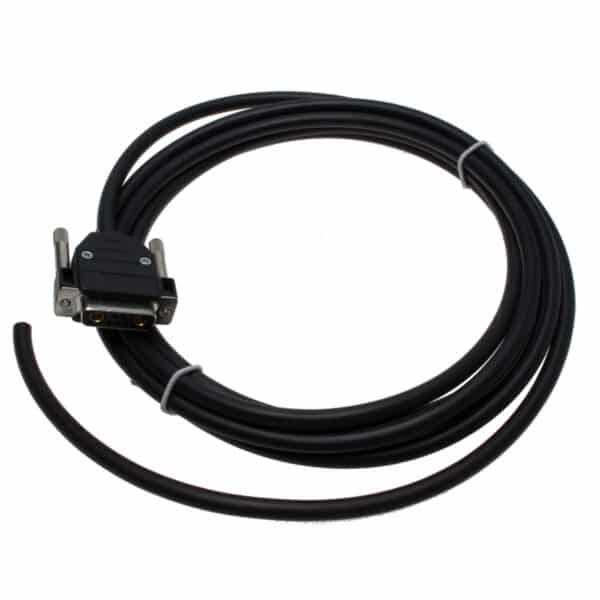

  • 1m input cable 12 / 24 VDC
  • 2.7 m antenna cable, 2* TNCm
  • 2 m Ethernet cable

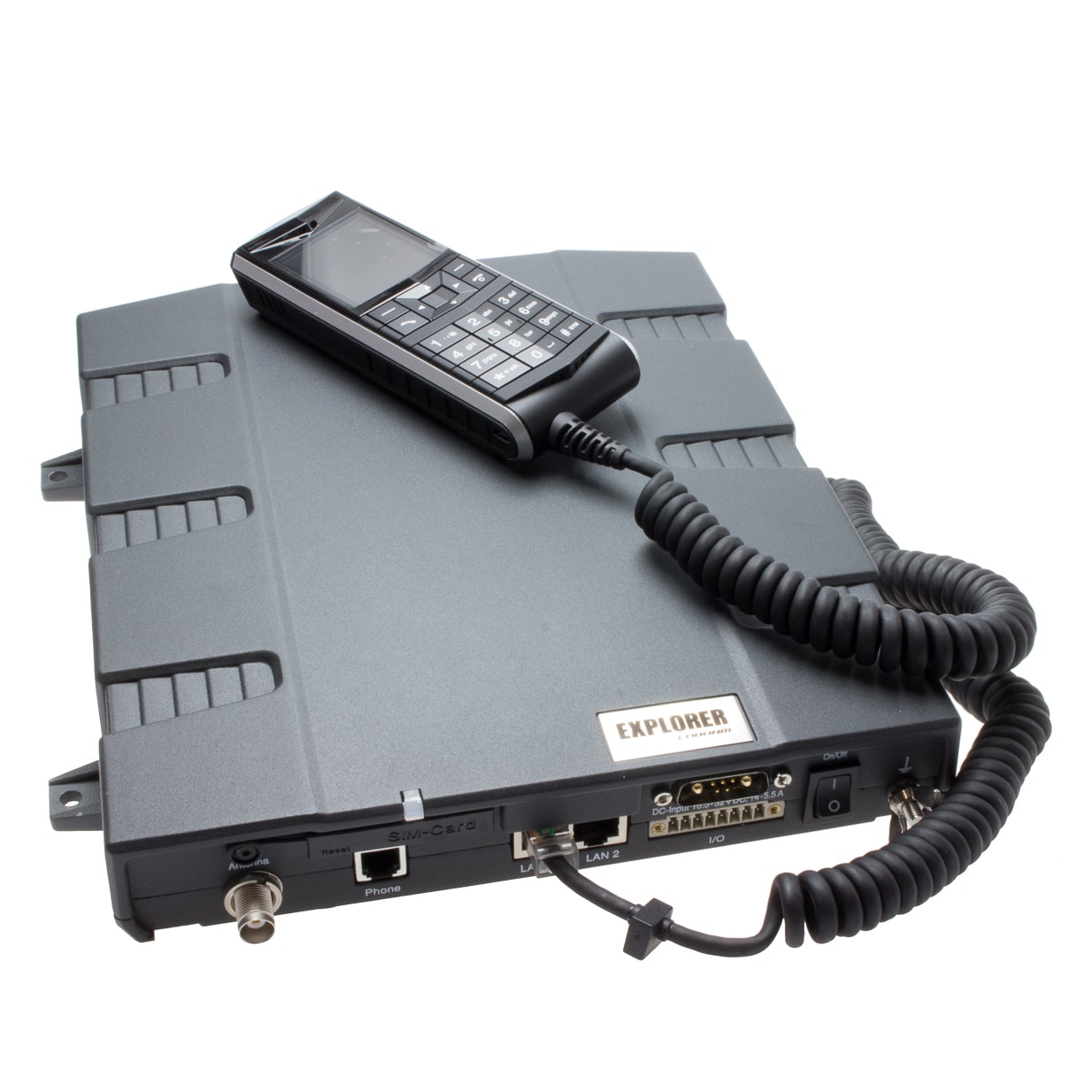

  • Thrane IP handset (wired) with cradle
  • Quick Start Guide, CD with manuals
Stock Keeping Unit466
Weight12,0000 kg
Dimensions42 × 42 × 47 cm
HS-Code85176200
Country of manufactureDenmark
MPN403721A-00535
