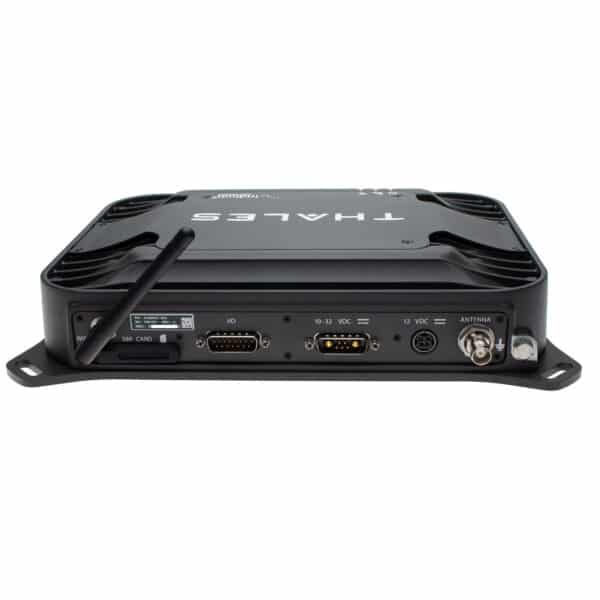

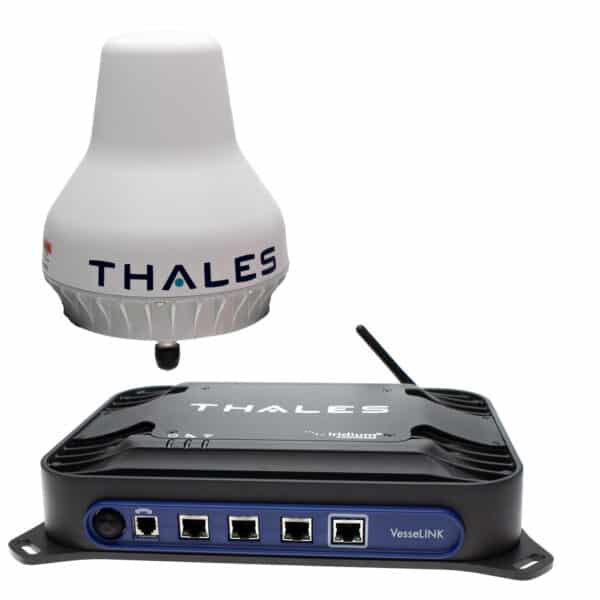

Thales Iridium VesseLINK 200 was developed for maritime based data communication as well as 3 simultaneous voice connections for the new Iridium NEXT network operating with a small antenna.
The system provides PABX over RJ-11, WiFi and WAN failover for VSAT systems e. g. KVH TracPhone V30 or 4G/ LTE router e. g. Sputnik24
Features
- Standard IP data up to 176 kbps download / upload
- 3 simultaneous voice lines even when data connection is active, via in-built SIP server
- Voice mailbox, no call forwarding support by Iridium Certus
- WiFi multiuser capability for up to 3 devices, Android und iOS
outdoor range 10 m – 20 m - Built-in traffic filter blacklist (domain) / whitelist (domain) / port blocking
- Tracking (Location Services) supported by GNSS: GPS, GLONASS, BeiDou, Galileo
- VSAT / 4G LTE ready over WAN port and preferred routing switch

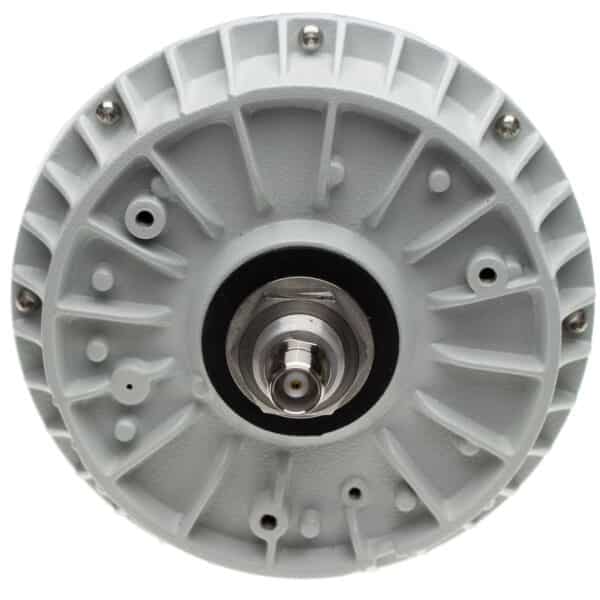

- Antenna type Planar Helix
- API and command set for secure remote management by partners
- Multi language interface
(English, French, German, Russian, Spanish) - 2 year manufacturers warranty, option extension up to 5 years
Scheduled Features
- PTT (Iridium Push-To-Talk)
- SBD (Iridium Short Burst Data service)
- Streaming IP data connection
For usage of the VesseLINK 200 an Iridium Certus Maritime SIM card and Iridium Certus Maritime 200 subscription is required.
Mandatory accessories
- DC Power Cable (0,5m)
- DC Power Cable (1 m)
- AC/DC power supply
- Antenna cable 10m, 15m, 20m, 25m, 30m, 40m, 50m
- Customized cable length on demand
Optional accessories
