SAILOR Fleet One

4.550,00

Delivery time: 2 - 3 Weeks

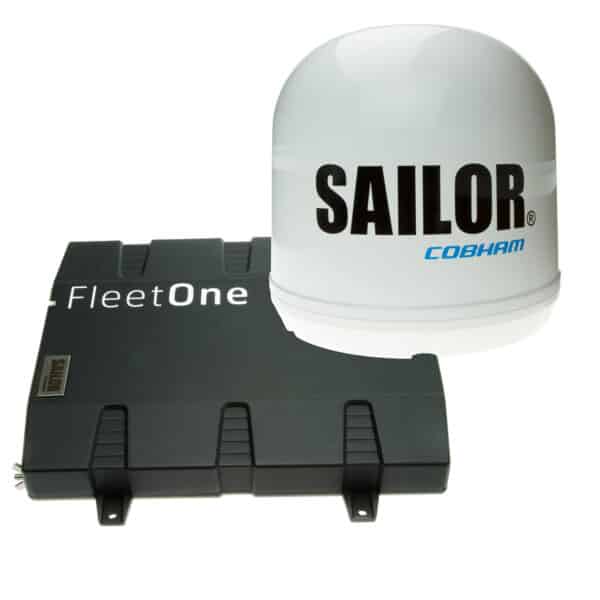

SAILOR Fleet One – IP communication for ships

Offering service on Inmarsat’s global broadband I4 satellite coverage, SAILOR Fleet One is a competitive, high quality single-user solution for professional vessels, such as workboats or fishing vessels, and is also perfectly suited for use on recreational boats, both sail and power.

SAILOR Fleet One features a small and light antenna, which enables simple user-installation, so smaller vessels with a requirement for reliable, high quality global internet and voice can enter the broadband era with a true IP solution for the first time.

SAILOR Fleet One is a competitive single-user solution designed to provide global, high quality data & voice for business, operational or recreational applications. The tariffs offer low connection costs (green) in the coastal area. In the light gray zone only phone connections are available, a data connection ist not possible.

Main features

  • Voice and data simultaneously up to 150 kbps
  • IP connection for e-mail and internet/intranet access
  • Phone / fax PABX compatible
  • LAN interface
  • DHCP / NAT router features
  • IP handset interface

For usage of Sailor Fleet One you need a SIMcard and postpaid contract Global or Coastal (s. Documents) or prepaid-voucher too.

We recommend for easy installation of antenna the Mast Mount Kit.

Additional accessories for Sailor Fleet One e. g.

  • IP handset, wired
  • AC power supply 110/220VAC to 28VDC, 25A (Sailor 6080)
  • Antenna cable lengths up to 95 m, on demand
Dataconnections
  • Voice 4 kbit/s
  • Standard IP up to 150 kbps
  • SMS up to 160 characters
  • Emergency call (505)

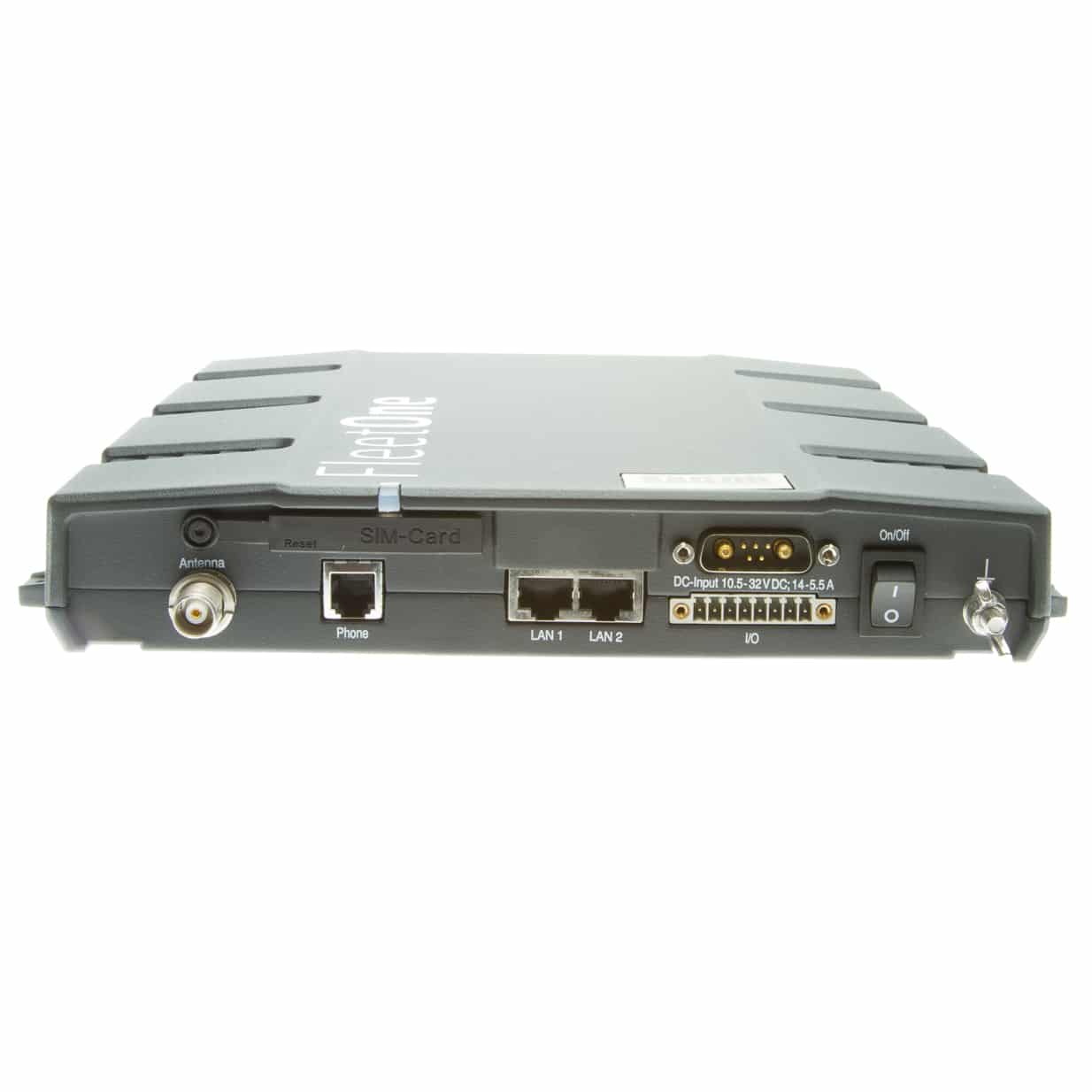

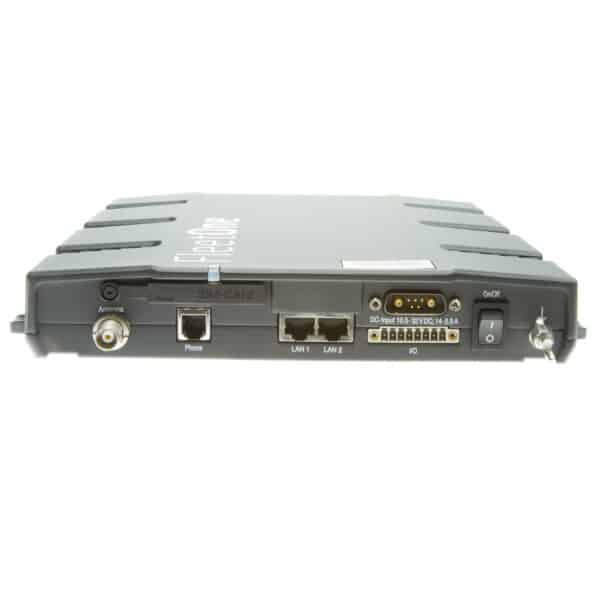

Interfaces
  • 2 x 10/100Mbit Ethernet LAN PoE (Power over Ethernet)
  • 1 x RJ-11 phone/ fax, PABX
  • 1 x I/O connector with 5 configurable inputs/outputs
  • Antenna Antenna (ADU) TNC female Terminal (BDU) TNC female
  • Stromversorgung
  • 10,5 bis 32V DC
  • Leistung (max), 120 W @ 10-32 V, inkl. Antenne & PoE
Dimension and weight
  • Antenna Ø 275.6 x 291.9 mm, 3.9 kg
  • Terminal 278 x 264 x 41 mm, 2.0 kg
Environment
  • Ingress protection Antenna IPX6 Terminal IP30
  • Operating temp. -25°C bis +55°C
  • Storage temp. -40°C bis +85°C
  • Survival -40°C bis +80°C
  • Automatic thermal surveillance
For further details like vibration (ADU), mechanical shock, ship motion, etc. as well as a comparison with the devices SAILOR 150, 250 and 500 see fact sheet in documents.

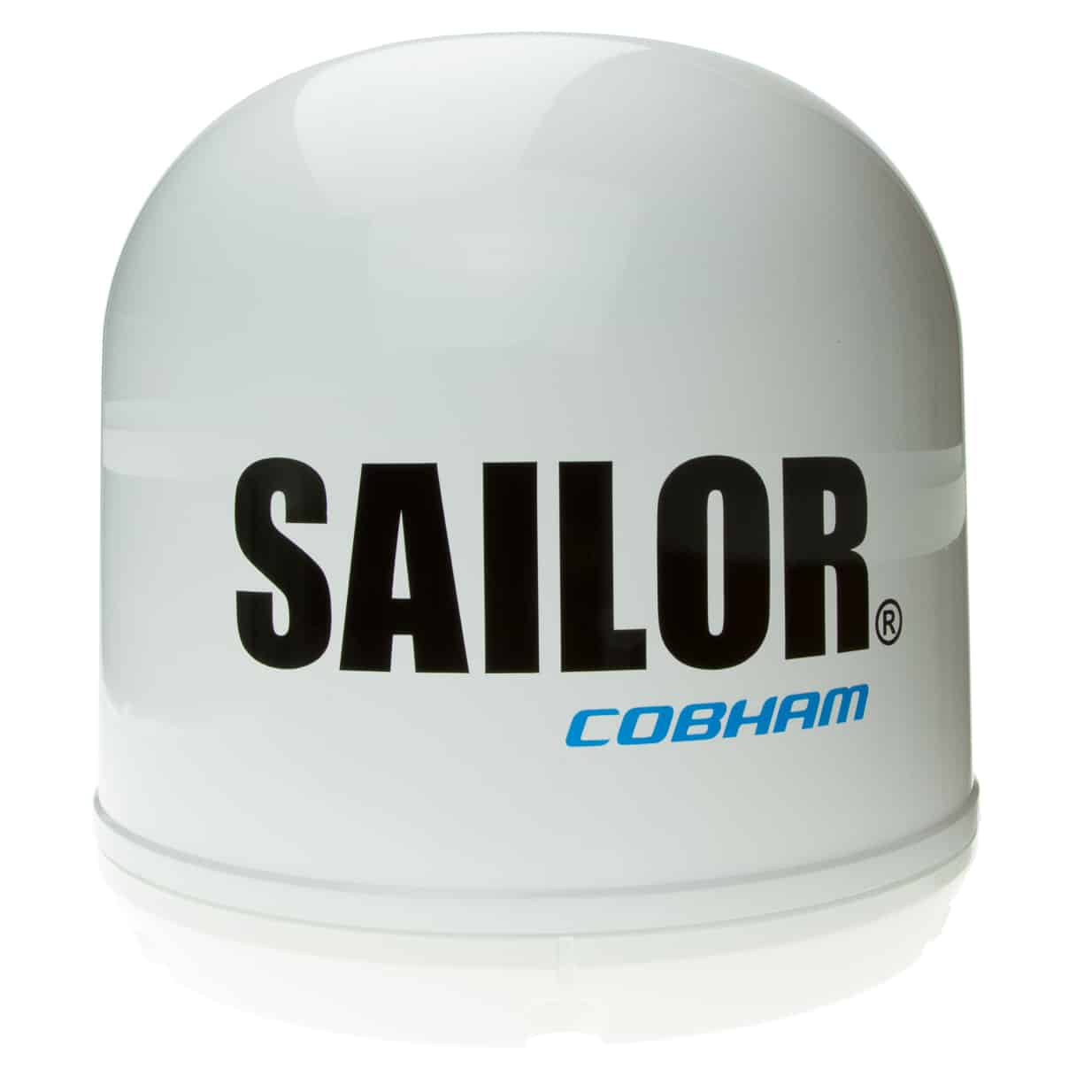

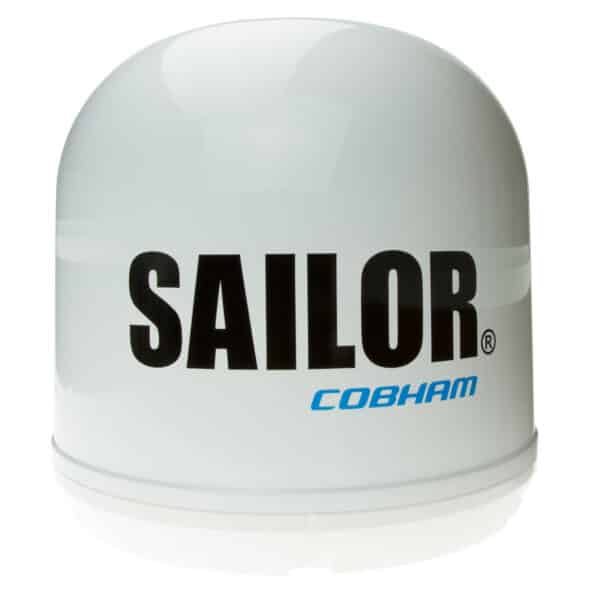

  • Antenna (Above Deck Unit)

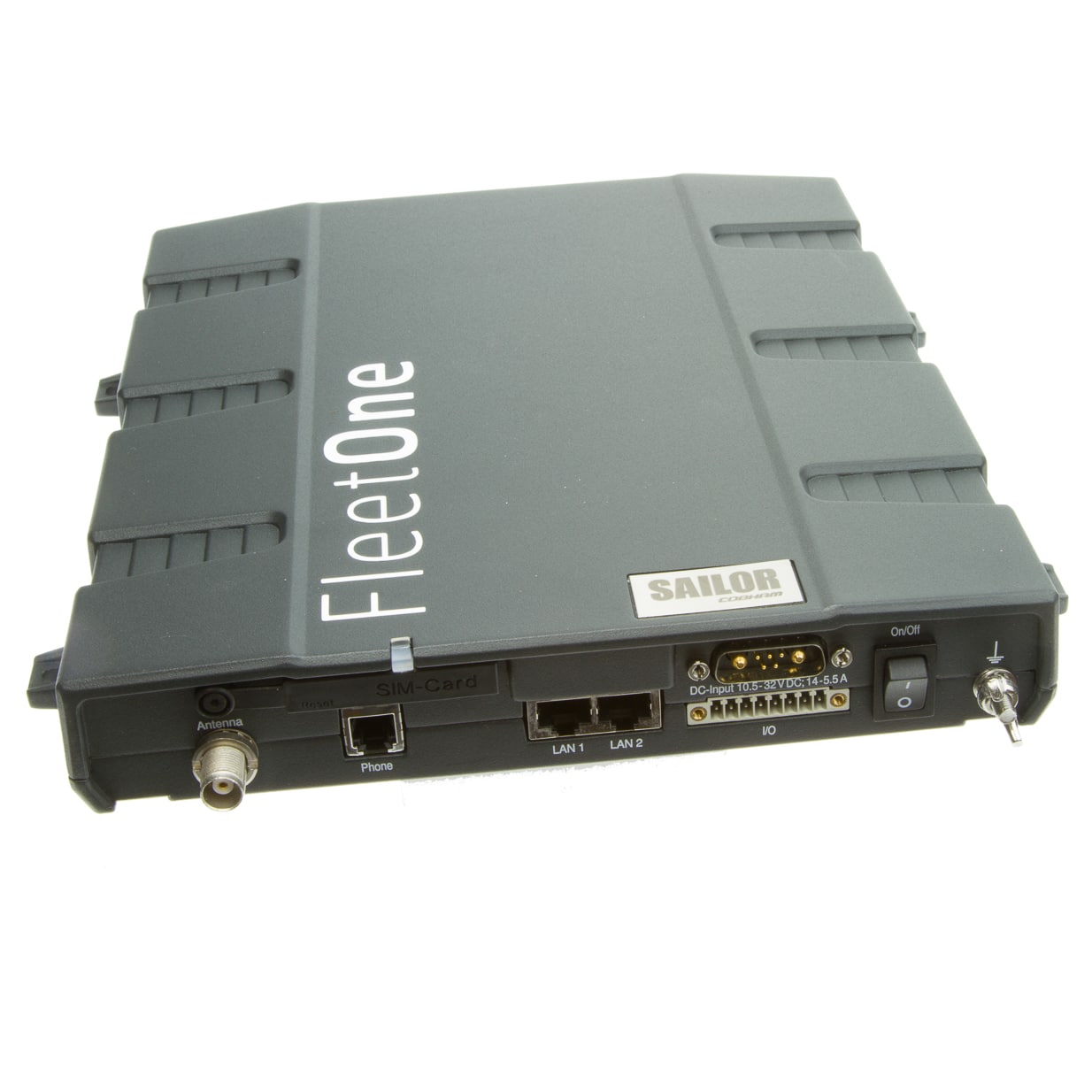

  • Terminal (Below Deck Unit)

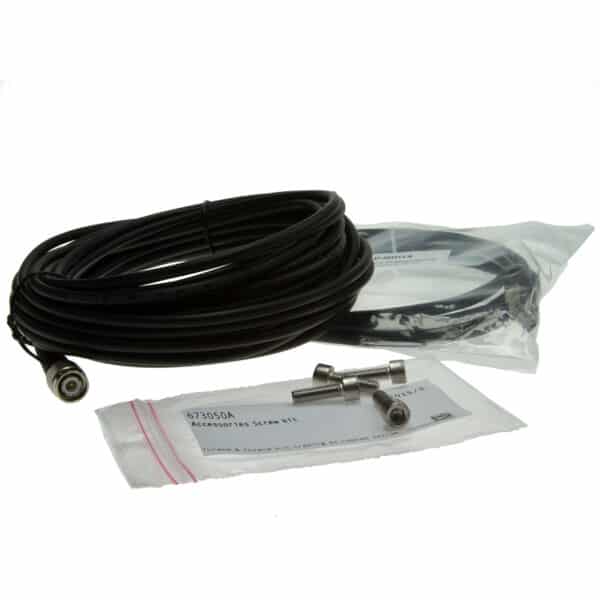

  • 10 meter antenna cable
  • user/installation manual on CD
Stock Keeping Unit487
Weight9,5000 kg
Dimensions35 × 36 × 26 cm
HS-Code85176200
Country of manufactureDenmark
MPN403774A-00595
