Beam SatDOCK-G 9555

1.159,00

Delivery time: 1 - 2 Weeks

Beam SatDOCK-G 9555

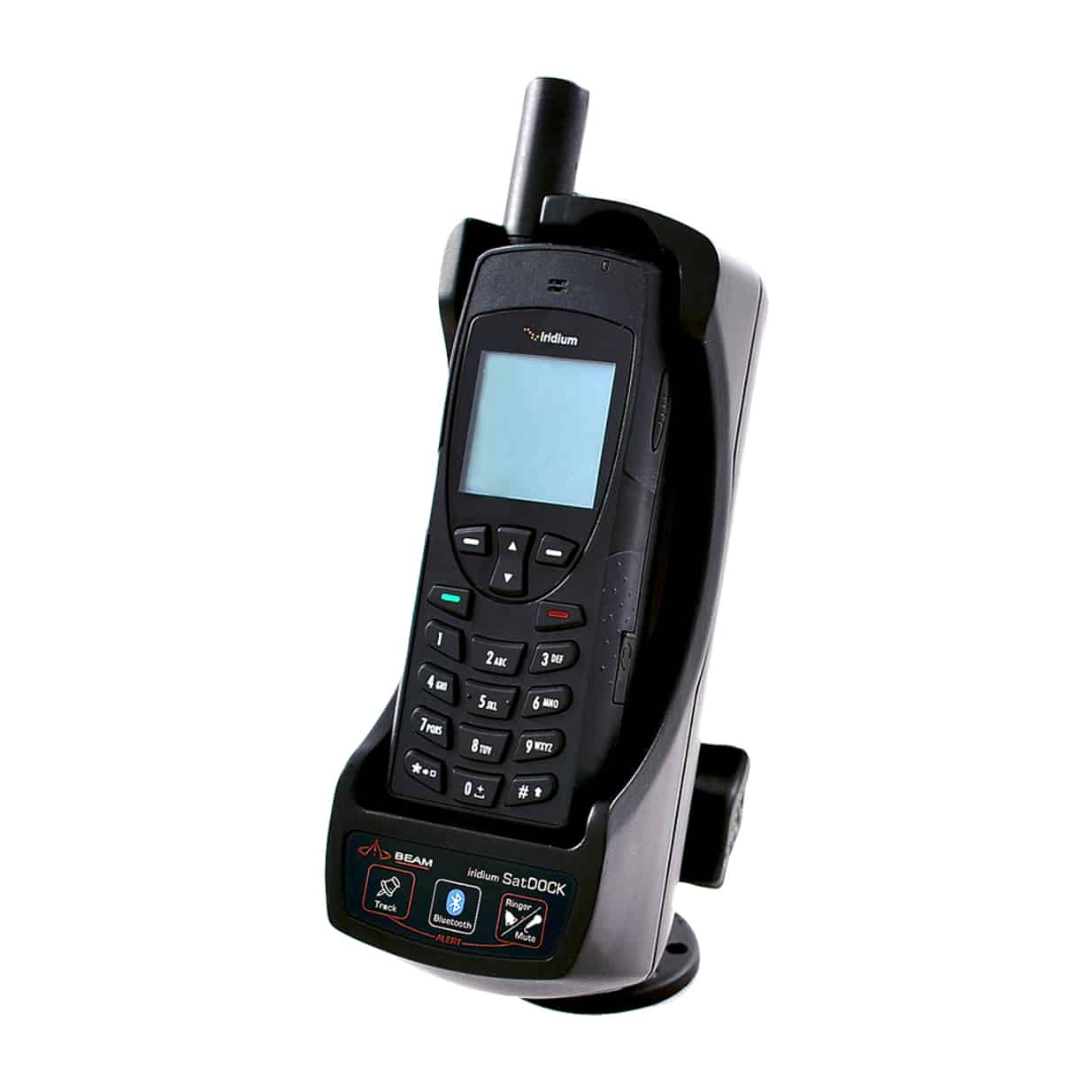

Beam SatDOCK-G 9555 is an compact docking station specifically designed to support Bluetooth, SBD and inbuilt GPS transforming the Iridium 9555 satellite handset into an intelligent feature rich device.

SatDOCK-G also has an inbuilt Bluetooth module for voice connectivity along with an intelligent tracking and alert reporting system utilizing the inbuilt GPS engine of the Pots Dock. The alert & tracking module can be configured to support periodic polling or emergency alert reporting.

The Iridium 9555 handset fits securely in the docking station, which features inbuilt Bluetooth, USB data, phone charging and integrated antenna and power connection making it possible to keep all antenna cables and power permanently connected to the dock ready for use. The Iridium 9555 handset is easily inserted and removed by the press of a button on the top of the SatDOCK-G making it very easy to remove the 9555 at anytime with the peace of mind knowing it will always be fully charged.

Pots Dock also supports the use of an optional compact Beam Privacy Handset (Beam RST755I) that can be located next to the SatDOCK-G for added convenience if required.

Features

  • In-built GPS alert & tracking system
  • Bluetooth Voice Connectivity
  • USB data Port
  • Integrated antenna connection
  • Charges 9555 handset battery
  • 9 – 32V DC Input
  • Supports Voice & Data services
  • Inbuilt Ringer
  • external Speaker and microphone

Required accessories

Optional accessories

Power supply
  • Input: 9 - 32 V DC, 2 A max.
  • Average Consumption at 12 V DC Standby 70 mA, 0.84 W Senden und Laden 0.7 A, 8.4 W Sleep mode 3 mA, 35 mW
Interfaces
  • USB 2.0 Mini-B 5-pin female (USB Slave) data rate 2,4 kb/s max.
  • RJ-45 for Intelligent Handset
  • BlueTooth 2.0v+EDR (Enhanced Data Rates), 802.11 coexistence
  • Power cable 12V DC
  • Alarm Loop: 1 input, 1 output, several alarm buttons and up to 500 m cable
  • Iridium antenna: TNC-female
  • GPS antenna: Active  SMA-female
  • 3,5 mm  4 pole audio jack for Privacy Handset
Dimensions and weight  (Docker)
  • Dimensions 200 x 75 x 68mm
  • Weight  : 320 g
Environment
  • Operating temperature -20C° to +70°C (SatDOCK)
  • torage temperature -30 °C to +70°C
  • Operating humidity 85 % Relative Humidity non-condensing
Certificates
  • Iridium
  • WEE
  • EMC
  • Safety SELV
  • RoHS
  • Flame retardant

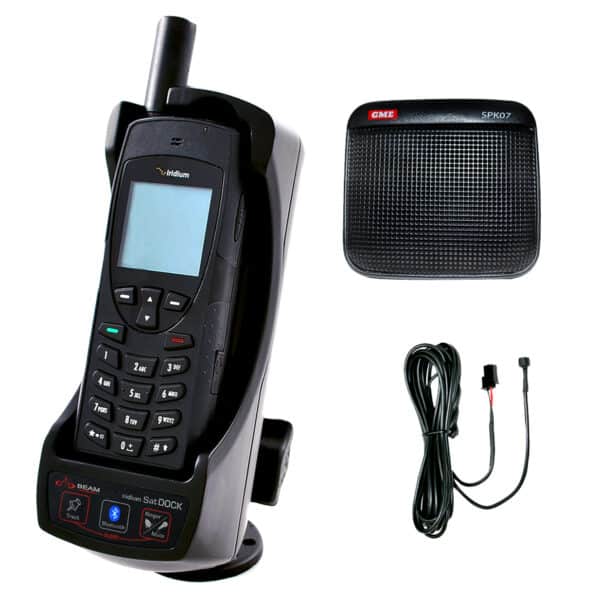

  • Beam SatDOCK-G Cradle for Iridium 9555
  • Speaker ( 1.75 m cable) and microphone (3.5m cable)
  • 9 - 32V DC power cable 2m
  • GPS antenna (40 x 35 x 15 mm) with 5 m antenna cable SMAm
  • Universal Mounting Bracket (RAM)
  • User Manual
  • Quick Start Guide
Stock Keeping Unit949
Weight1,0000 kg
Dimensions33 × 14 × 10 cm
HS-Code85176100
Country of manufactureChina
MPN9555SDG
