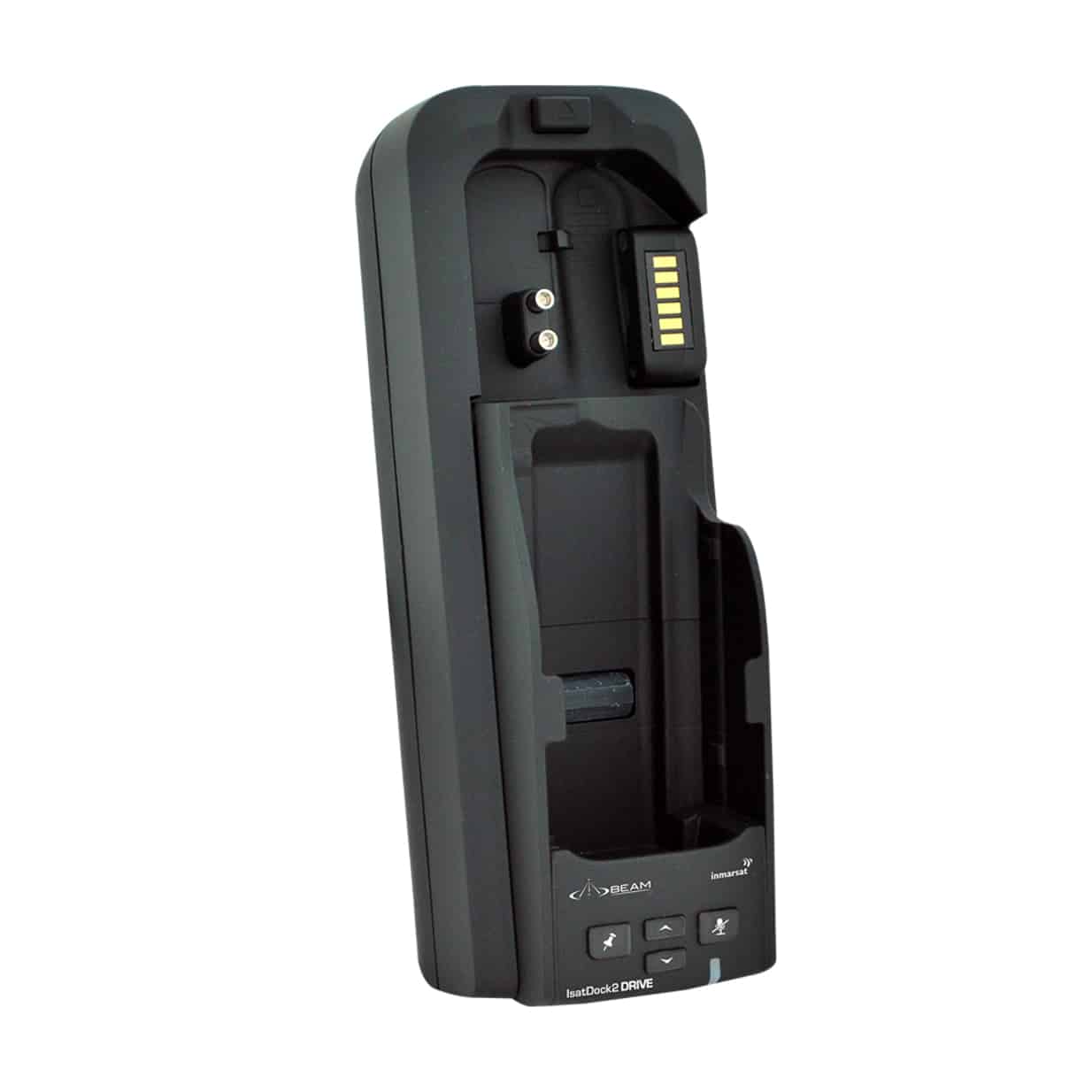

Beam IsatDock2 DRIVE

1.150,00

Delivery time: 3 - 5 working days

Beam IsatDock2 DRIVE

Beam IsatDock2 DRIVE

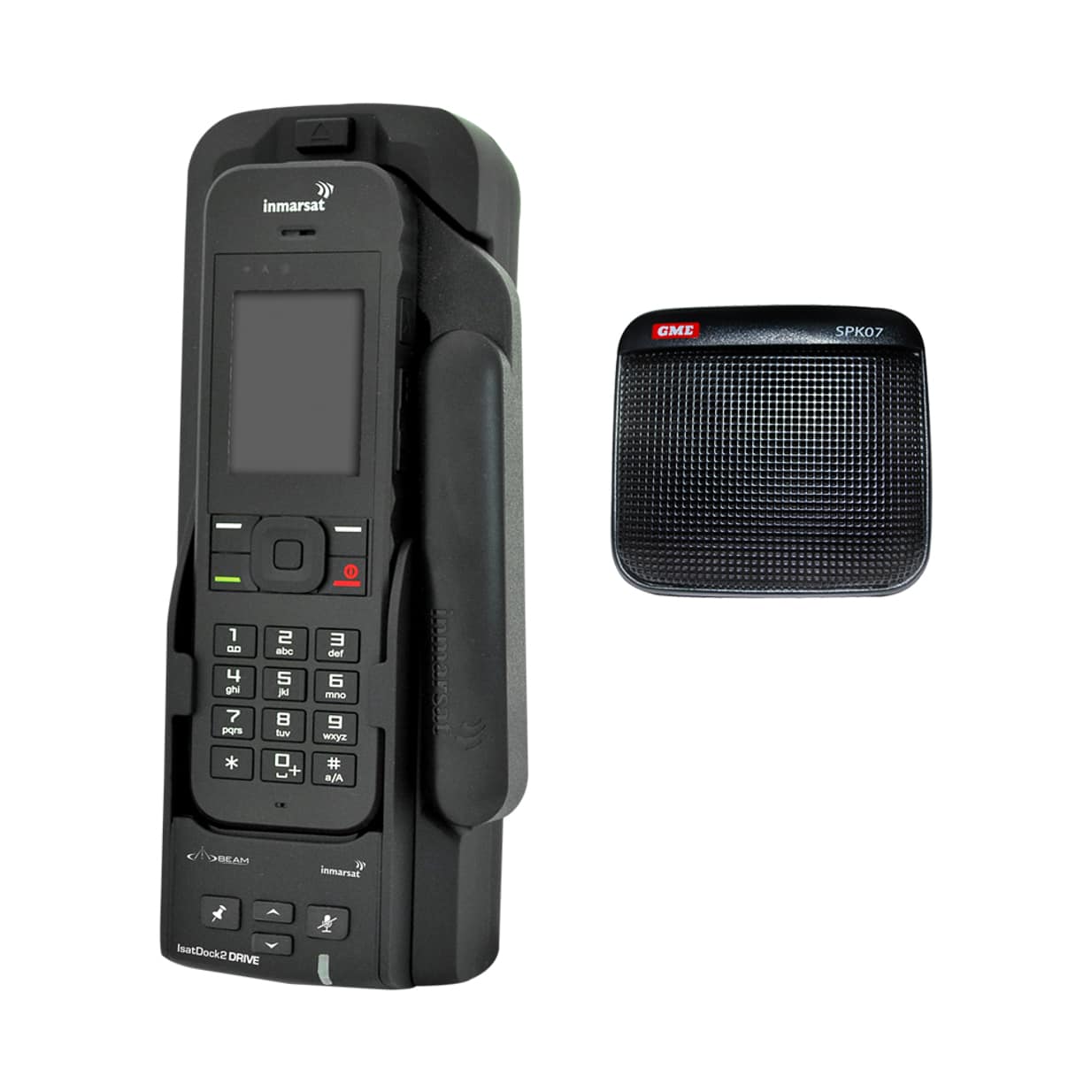

Docking station model for preferred vehicle hands free operation of the IsatPhone 2 satellite phone.

Features

  • key lock
  • Slim line compact installation
  • Accessory/Ignition sense/Horn Alert
  • Speaker and micro

Buttons On Dock

  • Ringer volume up/down
  • In-call volume up/down
  • In-call mute
  • Track button
  • Alert 2-button press

Integrated Hands Free

  • Superior echo cancellation
  • Full duplex
  • Line in/out for integrated solutions
  • Supports privacy handset (optional)

Other Key Features

  • USB data
  • Phone charging
  • Horn alert/light integration
  • Compact installation
  • Privacy handset auto answer/hang up (optional)

Alert & Tracking Functionality

  • Supports LeoTRAK-Online
  • Dedicated internal GPS receiver

Tracking

  • Periodic location messages, remote location via SMS
  • SMS, SMS to email
  • Location message sent upon button press
  • Ignition ON/OFF reporting

Alert Mode

  • 2 Button press on docking station
  • Periodic alert location messages
  • Supports external ‘panic alert’ pendant or button
  • Remote clearing of alert via SMS
  • Alert loop to position the IsatPhone 2 emergency call on any number of alert buttons along an alert wire (optional)

Required accessories

Additional accessories

Interfaces, connectors
  • RJ11, up to 600m , PABX
  • RJ9 privacy handset
  • 2-way MicroFit for microphone and speakers
  • USB Micro for data connection, configuration
  • Antenna cable SAT TNC female GPS SMA female
Power supply, consumption
  • 10 – 32V DC Input
  • Opition 110/240V AC Plug pack
  • Standby + charge 360 mA, 4.3 W
  • Transmit + charge 875 mA, 10.5 W
  • Sleep mode 5 mA, 60 mW
  • Peak 3.5 A, 42 W
Environment
  • Operating temp. -30° C to +70° C
  • Charging temp. 0° C to +45° C
  • Storage  temp. -35° C to +85° C
  • Humidity <= 75 % RH
  • IsatDock2 Drive

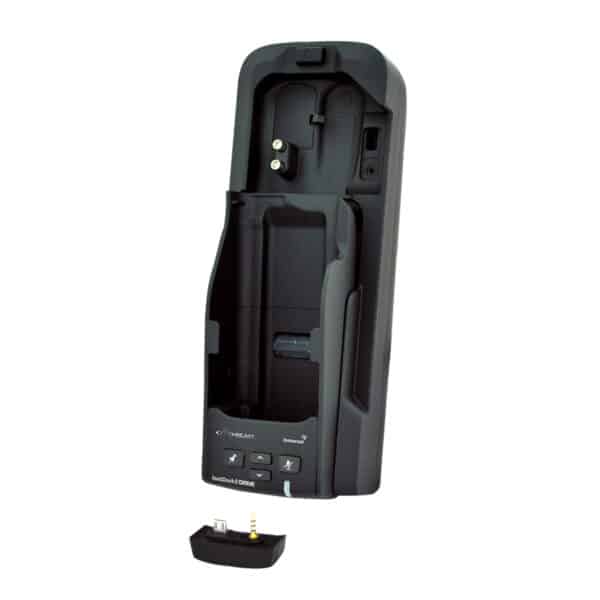

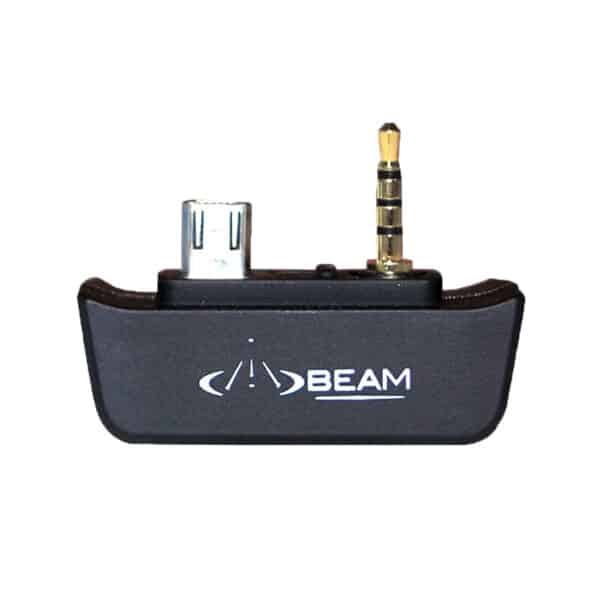

  • 2 IsatDock2 adaptors
  • 10-32V DC power cable 200 cm
  • Universal mounting bracket (RAM)
  • Speaker & Microphone
Stock Keeping Unit1502
Weight1,7000 kg
Dimensions29 × 19 × 17 cm
HS-Code85176100
Country of manufactureChina
MPNISD2Drive
