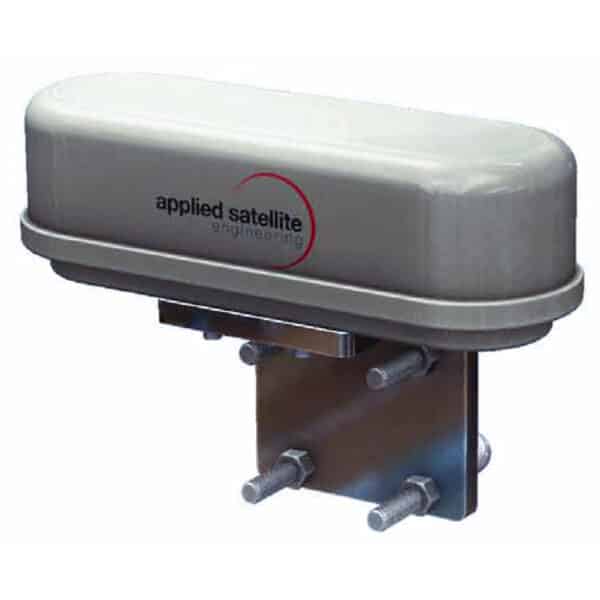

ASE Active Iridium antenna, 40 m/ 70 m antenna cable and monting kit supports ASE PotsDocks H and P
Specifications – Iridium Antenna
- Dimensions: 245 x 85 x 70mm (excluding brackets)
- Weight: 0.8 kg (excluding brackets)
- Operating Temperature: -40 to +85 degrees C
- Connector: Nf
- Frequency: 1610 – 1630Mhz
- Transmit Power: 2W
- Polarisation: RHCP
- Antenna Type: RHCP dipole
- Ceramic Filter Bandwidth: 12 Mhz (Rx)
- External powersource +18 to 36 VDC
- Max 500 mA current
Specifications – Iridium Antenna cable
- Connectors: Nm – Nm
- Diameter: 10.3 mm
- Bend radius min.: 120.0 mm
Specifications – Interface Box
- Connectors: Nf (rf in), TNCf (rf out), 2 pin screw female (dc in)
Package Contents
- Active Iridium antenna AA511 with mast mount kit
- 40 m/70 m Iridium antenna cable (Nm – Nm)
- Interface Box AA511
- 1 m interconnect cable (TNCm – TNCm) to connect the phone to the Interface Box
- 120/240 V AC power Adaptor with 1m cable
