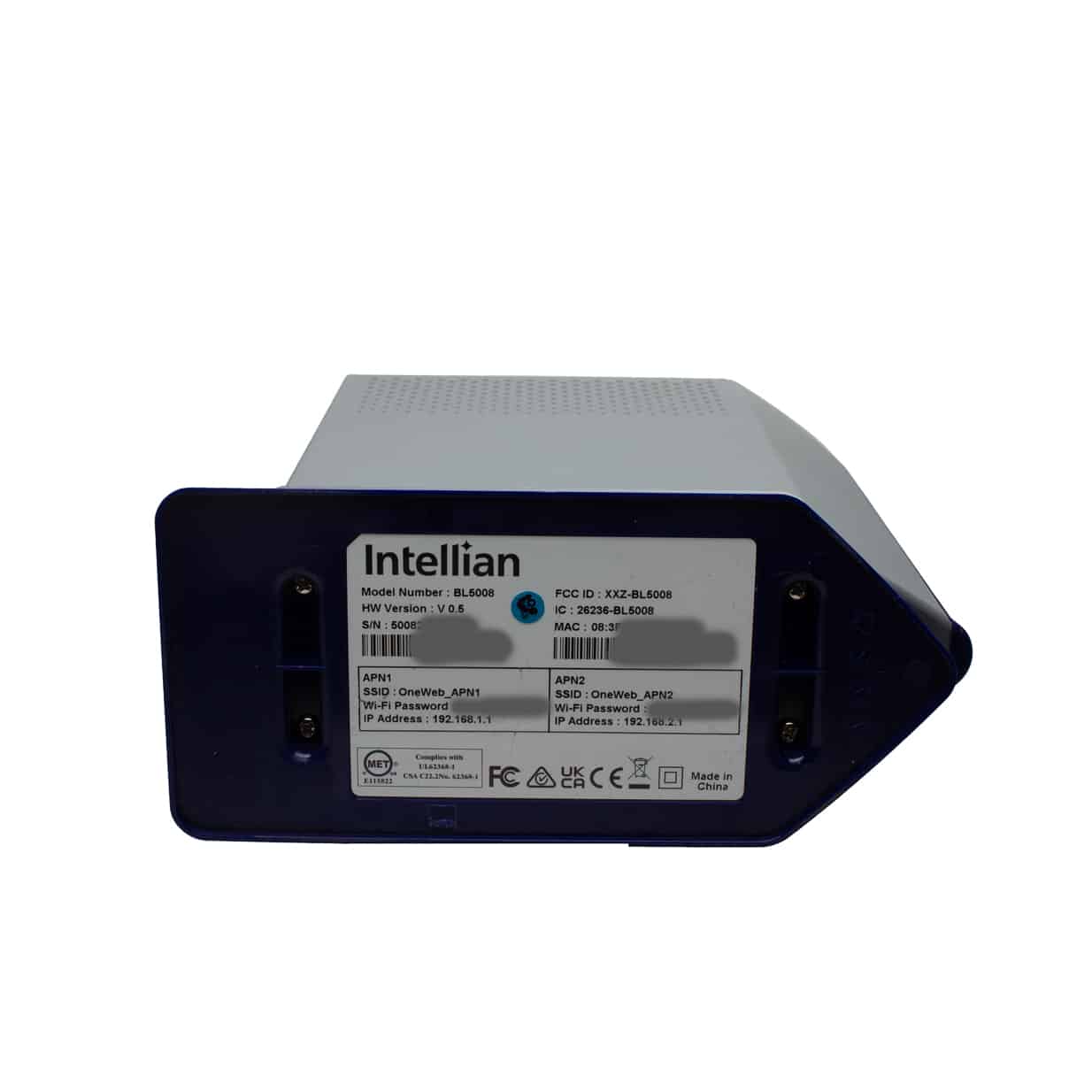

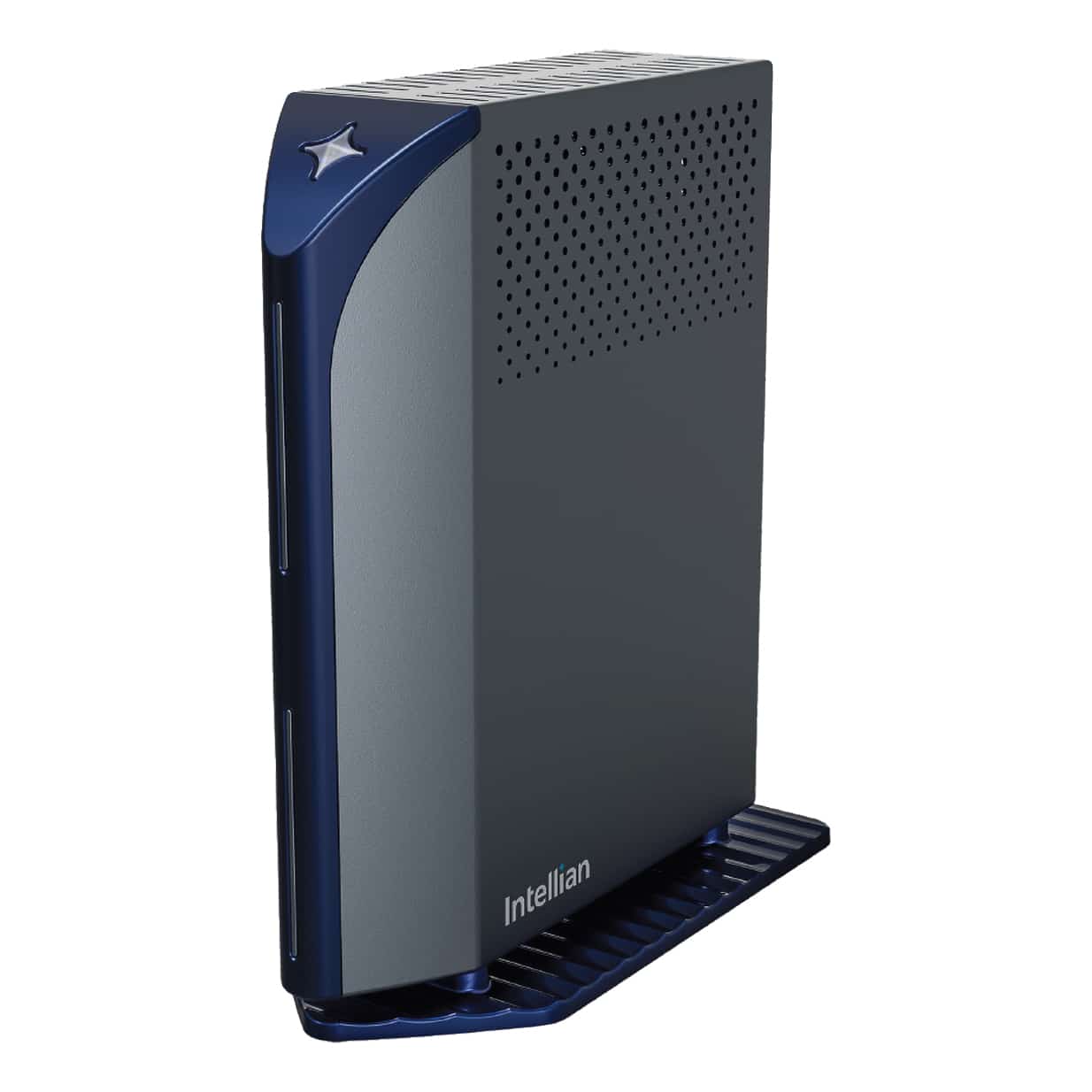

CNX-WIFI User Terminal

435,00 690,00

Delivery time: 1 - 2 Weeks

- +

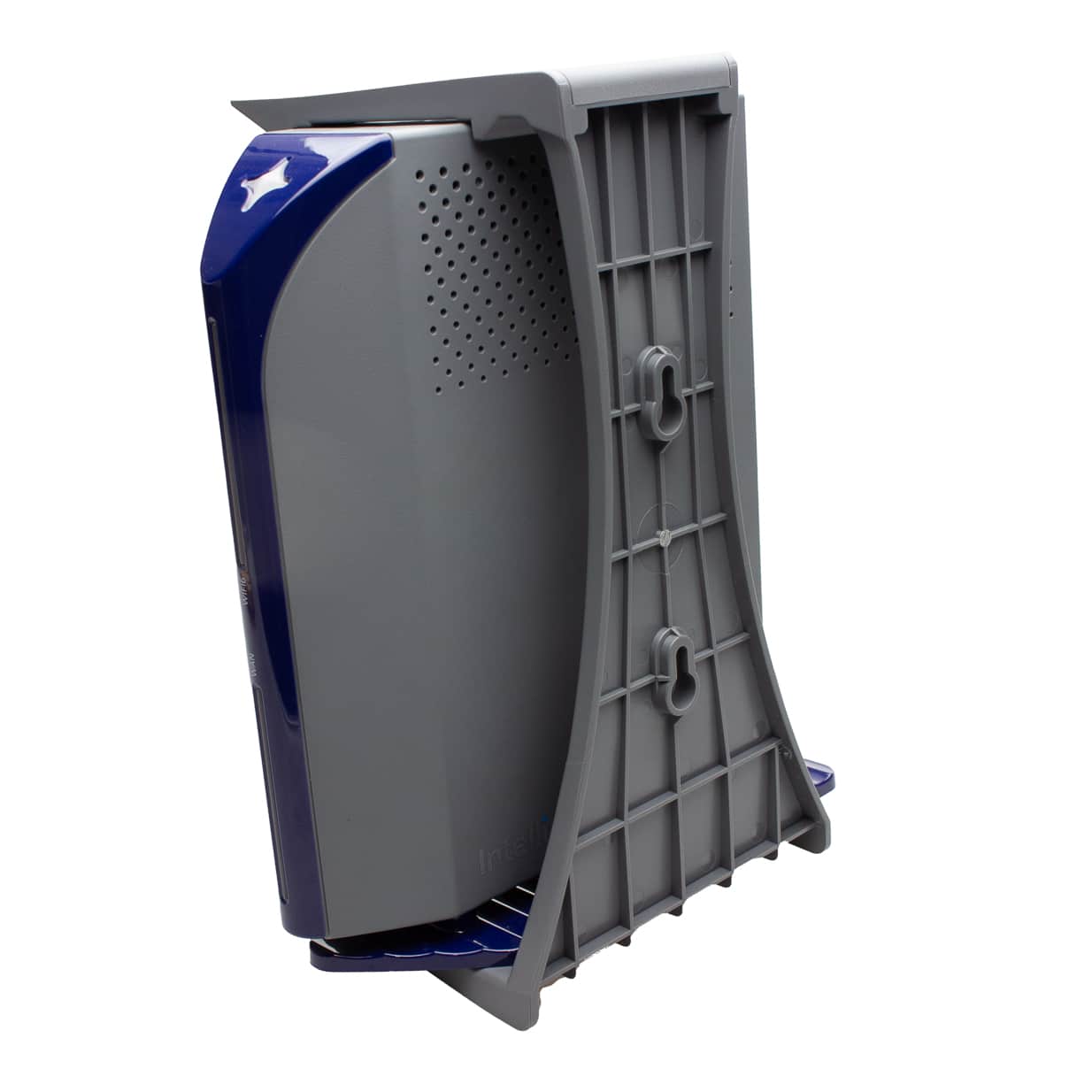

Intellian’s CNX-WIFI offers a suite of networking capabilities and an embedded WiFi-6 Access Point that are easily configured via a user friendly LUI (Local User Interface) or Intellian’s Mobile App. The CNX-WIFI is compatible with both the Compact (Half Duplex) and Enterprise (Full Duplex) Series Flat Panel antennas. The CNW-WIFI ist prepared for desk and wall mount.

Please choose among these power supply option when ordering:

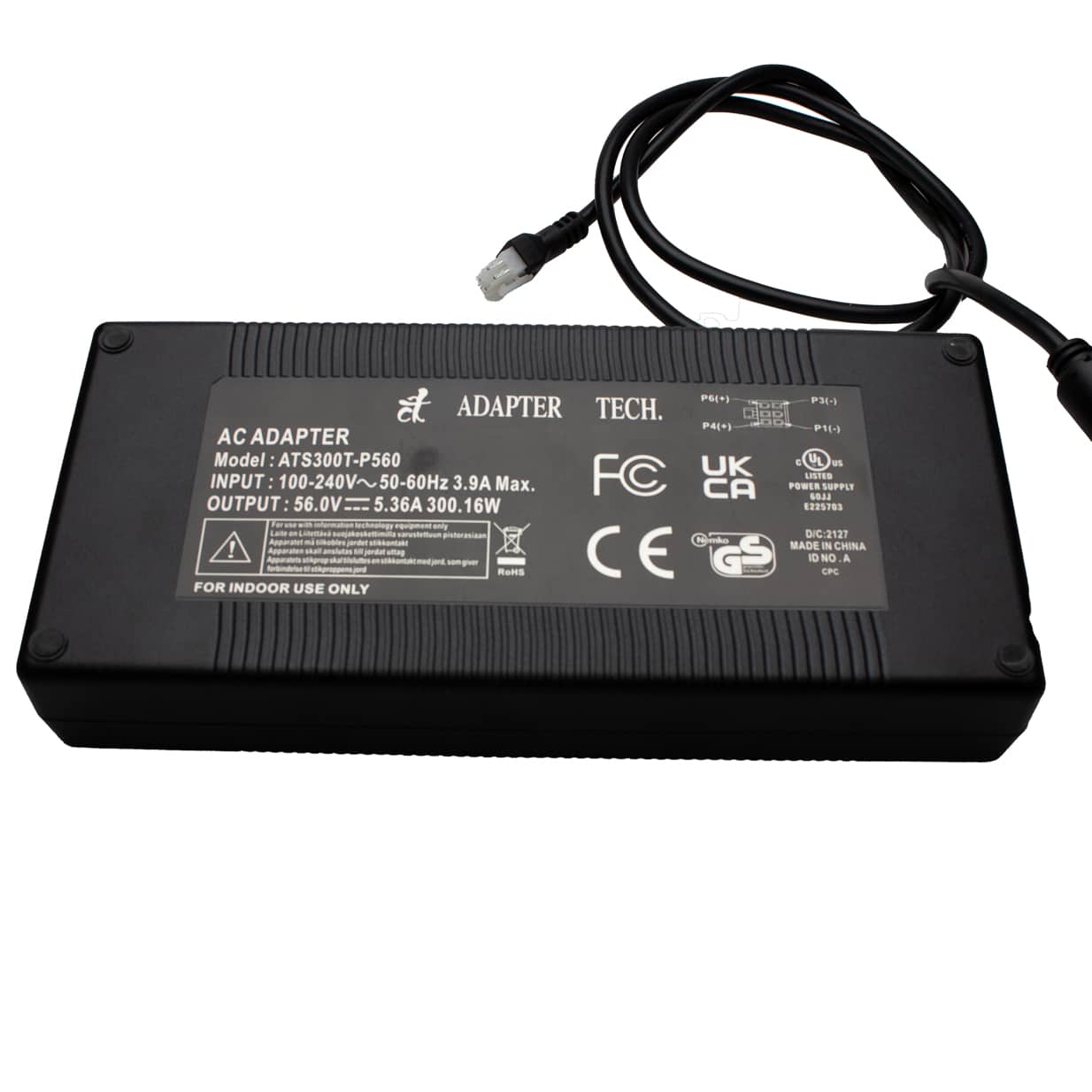

  • AC/DC power supply adapter (250 W)
  • AC/DC power supply adapter (450 W)
  • DC/DC converter (480 W)
  • DC/DC converter (560 W)

maximum antenna cable length

for OW10 Compact series

  • commercialised length antenna cable up to 190 m on request (note length in comment field during order process)

for OW11 Enterprise series

  • commercialised length antenna cable up to 85 m on request (note length in comment field during order process)

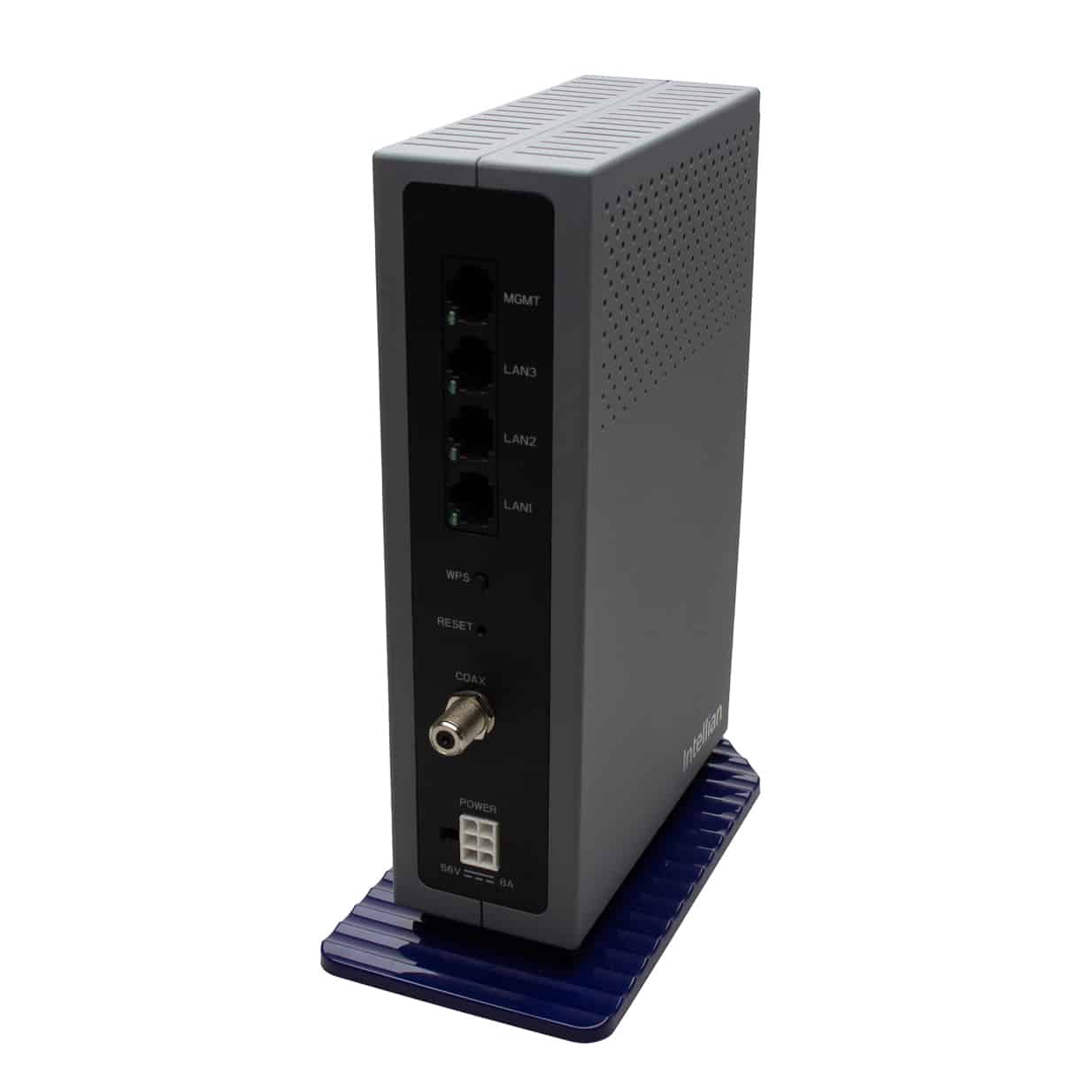

Schnittstellen:
  • WiFi 6
  • 4x RJ-45 GigE
  • F-port (antenna)
Power supply option
  • AC/DC (100-240V), 250 W
  • AC/DC (100-240V), 450 W
  • DC/DC (12-24V), 480 W
  • DC/DC (12-24V), 560 W
Dimensons and weight
  • CNX-WIFI User Terminal Dimensions    210 x 170 x 80 mm Weight 0.6 kg
  • AC/DC adapter 250 W Weight  1.2 kg
  • AC/DC adapter 480 W Weight x.x kg
  • DC/DC converter 560 W Weight x.x kg
Environment
  • Protection IP44
  • Operating temp. 0°C to +40°C
  • CNX-WIFI User Terminal (Indoor Unit)
  • 1 m RJ45 Ethernet cable
  • Installation manual
  • Power supply option - AC/DC power supply adapter (250 W):  1.5 m AC power cord EU plug (PP-T1A1-250) - AC/DC ower supply adapter (450 W):    1.5 m AC power cord EU plug (PP-T1A1-450) - DC/DC converter (480 W):   (PP-T1A1-DC) - DC/DC converter (560 W):   (PP-T1A1-DCA)
Stock Keeping UnitPlease select variant
WeightN/A
DimensionsN/A
Power

AC/DC power supply adapter 250 W, AC/DC power supply adapter 450 W, DC/DC converter 480 W, DC/DC converter 560 W

HS-Code85176200
Country of manufactureSouth Korea
