Explorer 710 Protection Box
Application:
fixed, permanent installation of the Explorer 710 antenna

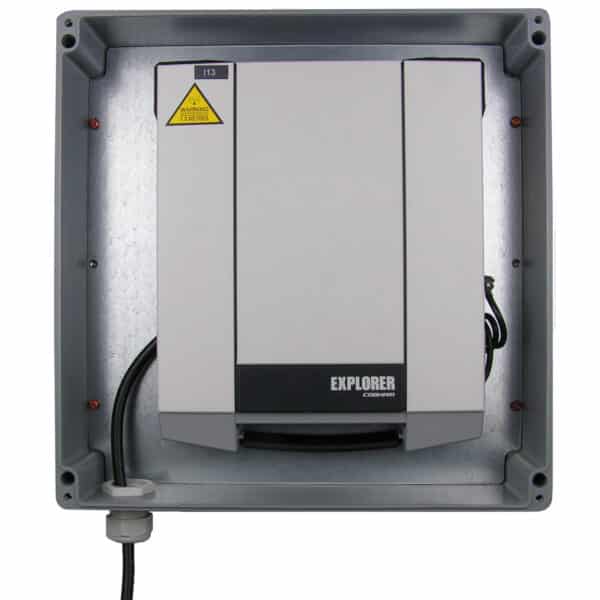

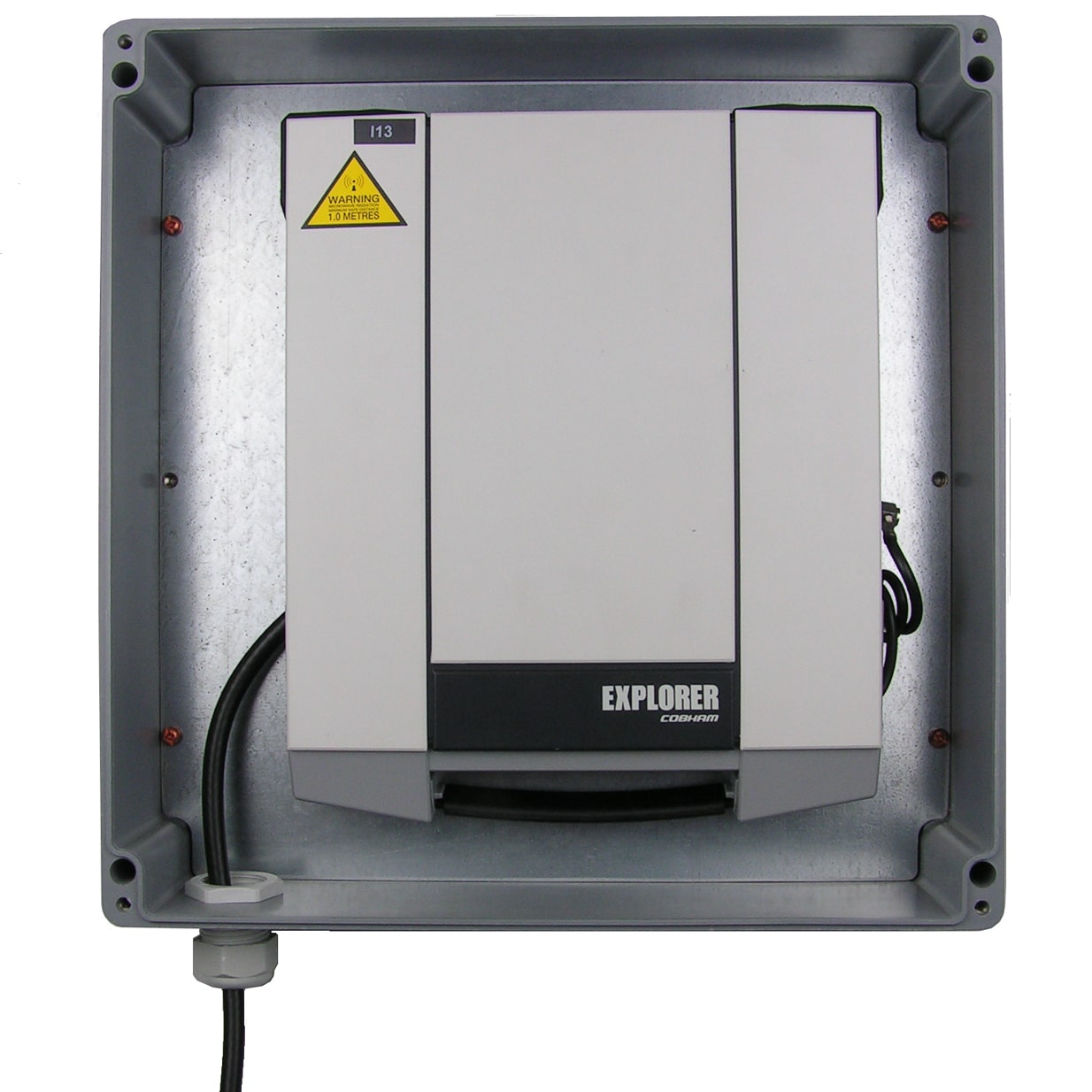

The housing is adapted to protect the antenna of the Explorer 710 reliably at a permanent outdoor installation. About a grommet the antenna cable, or optional power and network cable at installation of the complete unit, is leaded into the housing. It requires no special cable connection. All the connections are located in the protected area.

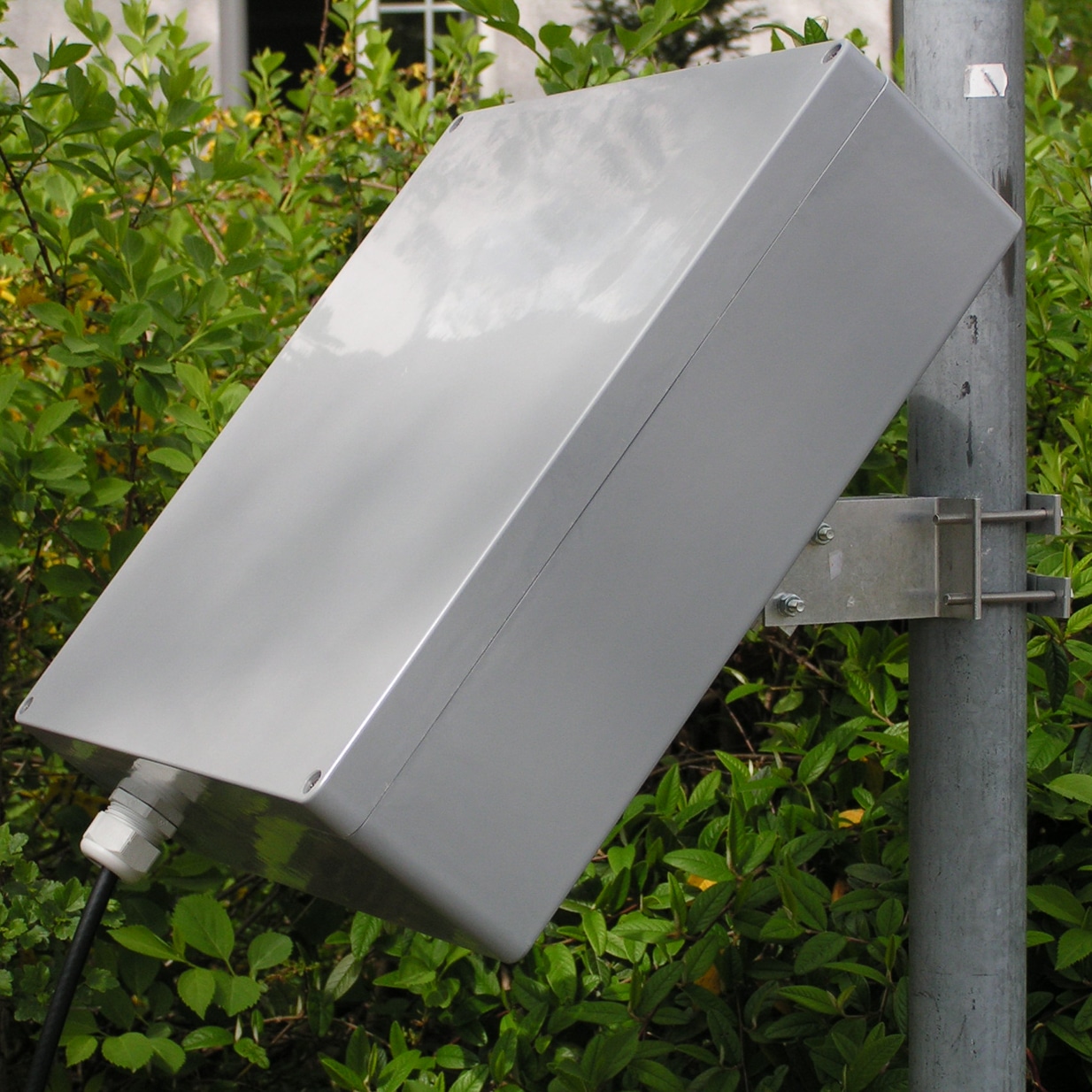

The freely adjustable pole mount allows the fixed pointing of the antenna to the satellite.
Housing:
- Polyester, glass fibre reinforced, coloured silver grey RAL 7001
- Neoprene cover gasket, oil and petrol resistant
- Protection IP 66
- Cable gland, protection IP 68
clamping range 15 – 21 mm - Fittings
material: Stainless steel

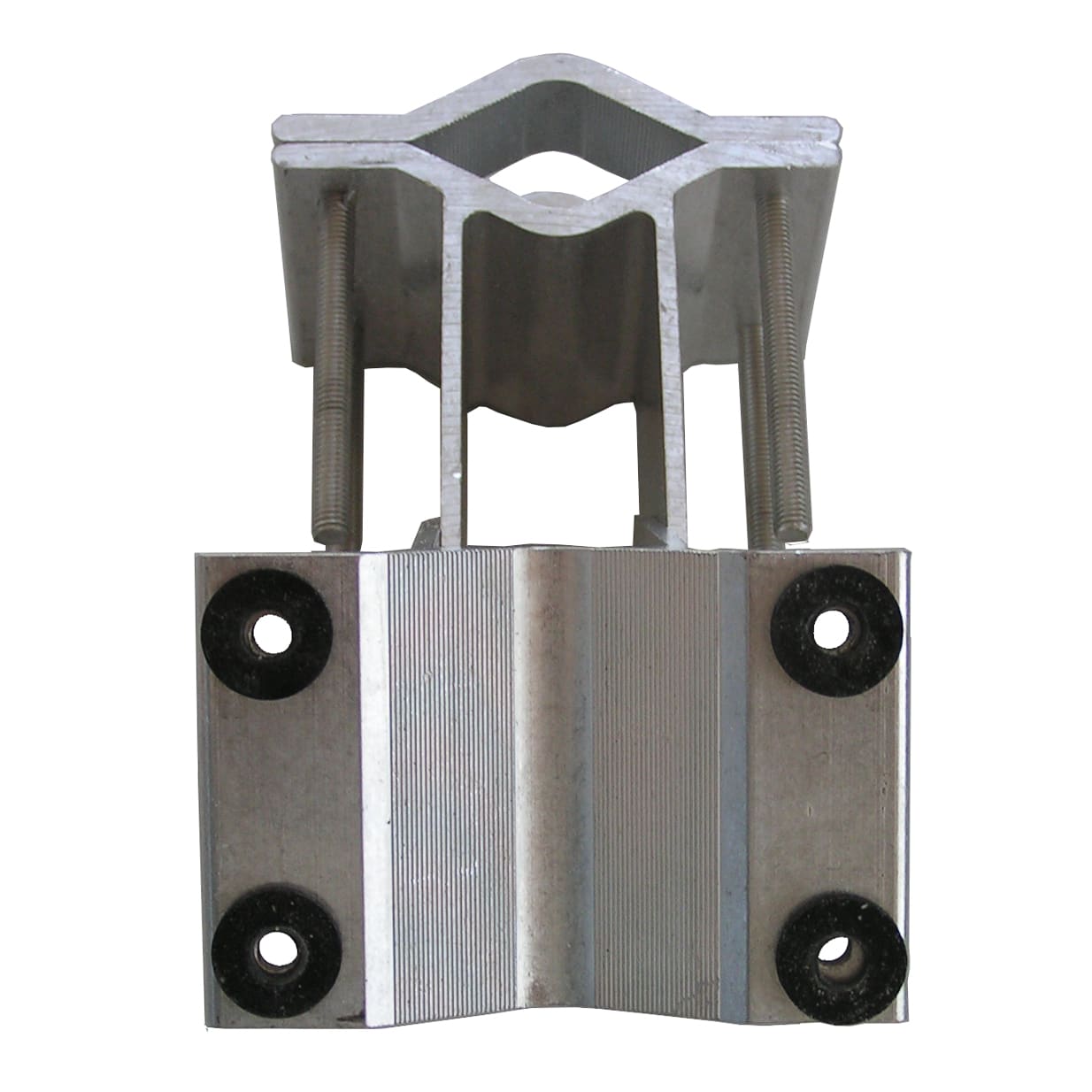

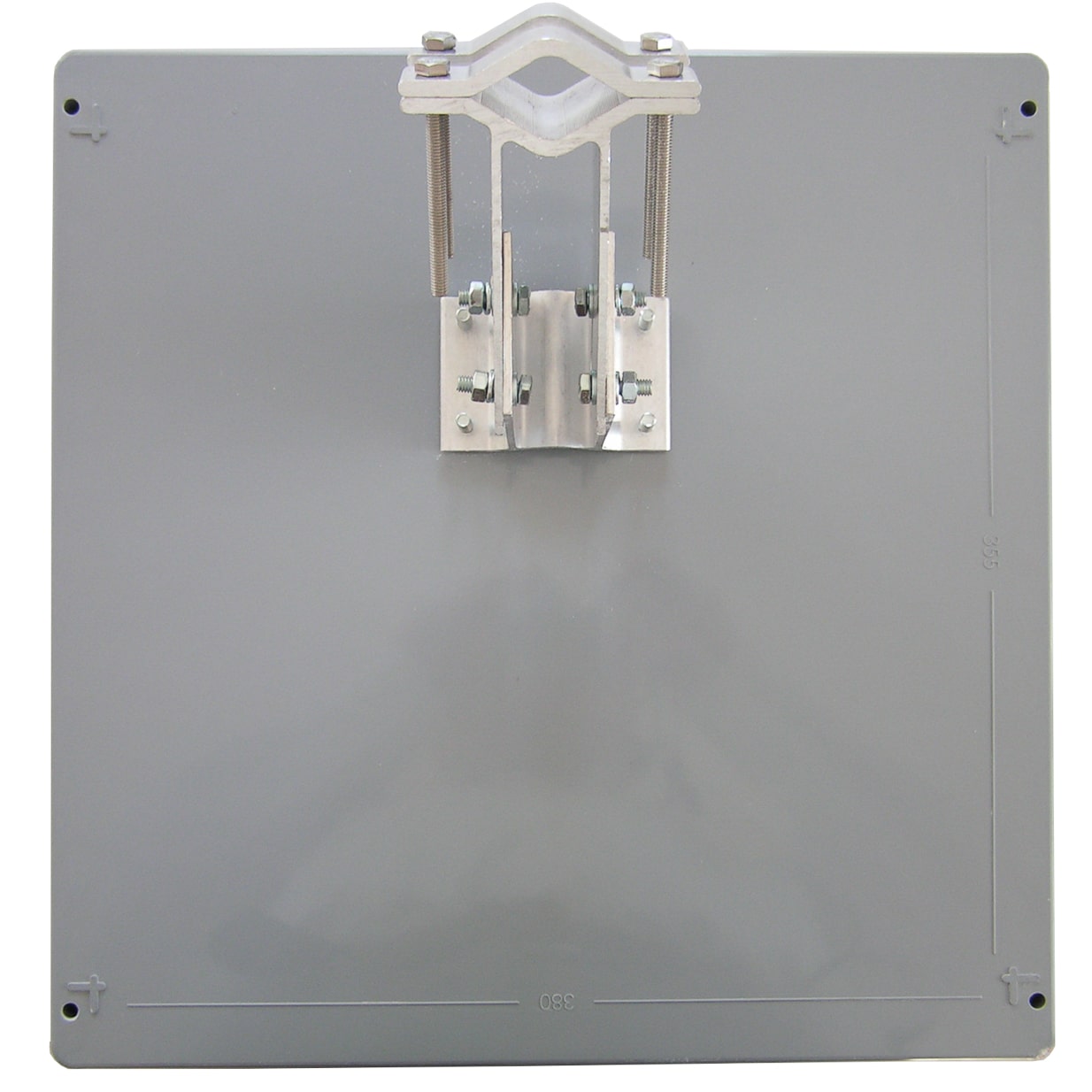

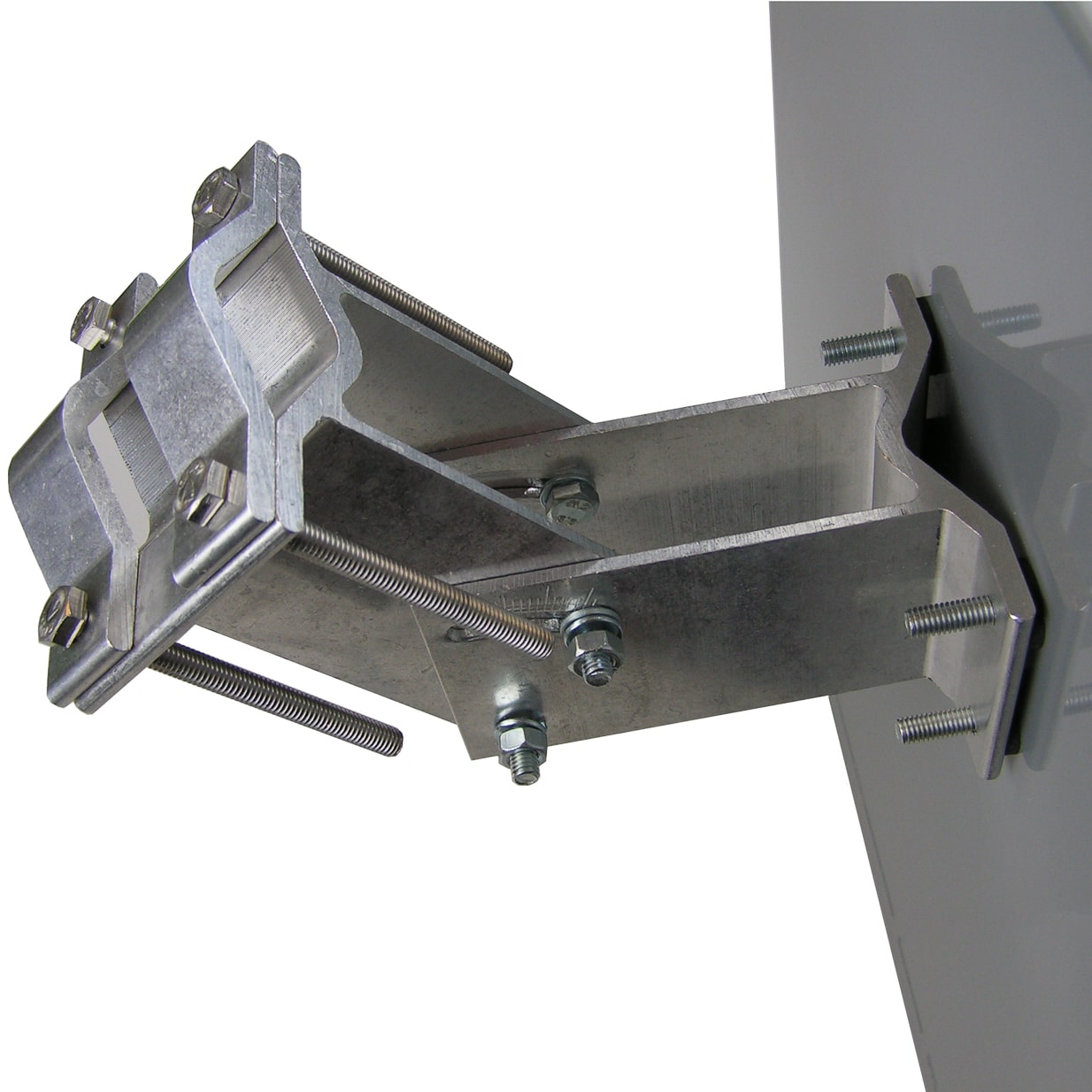

Pole mount:
- For attachment to vertical pipes up to 60 mm
material: aluminum
Technical specification:
- Weight: 7.7 kg
- Size: 40 x 40.5 x 12 cm
- Temperature: -40 °C to +110 °C
(standard neoprene cover gasket)
optional: -50 °C to +140 °C
(silicone cover gasket)
Delivery:
- Housing
- Pole mount
- Fittings
Accessories:
- Silicone cover gasket, different materials on request
- Housing black coloured on request
