External Thuraya antenna (Vehicle) 5 m cable
The Thuraya external Antenna is a passive outdoor mounted antenna which can be connected directly to Thuraya’s handsets or hotspots and enable satellite connectivity even inside a vehicle. The external system is deployable even without a docking station.

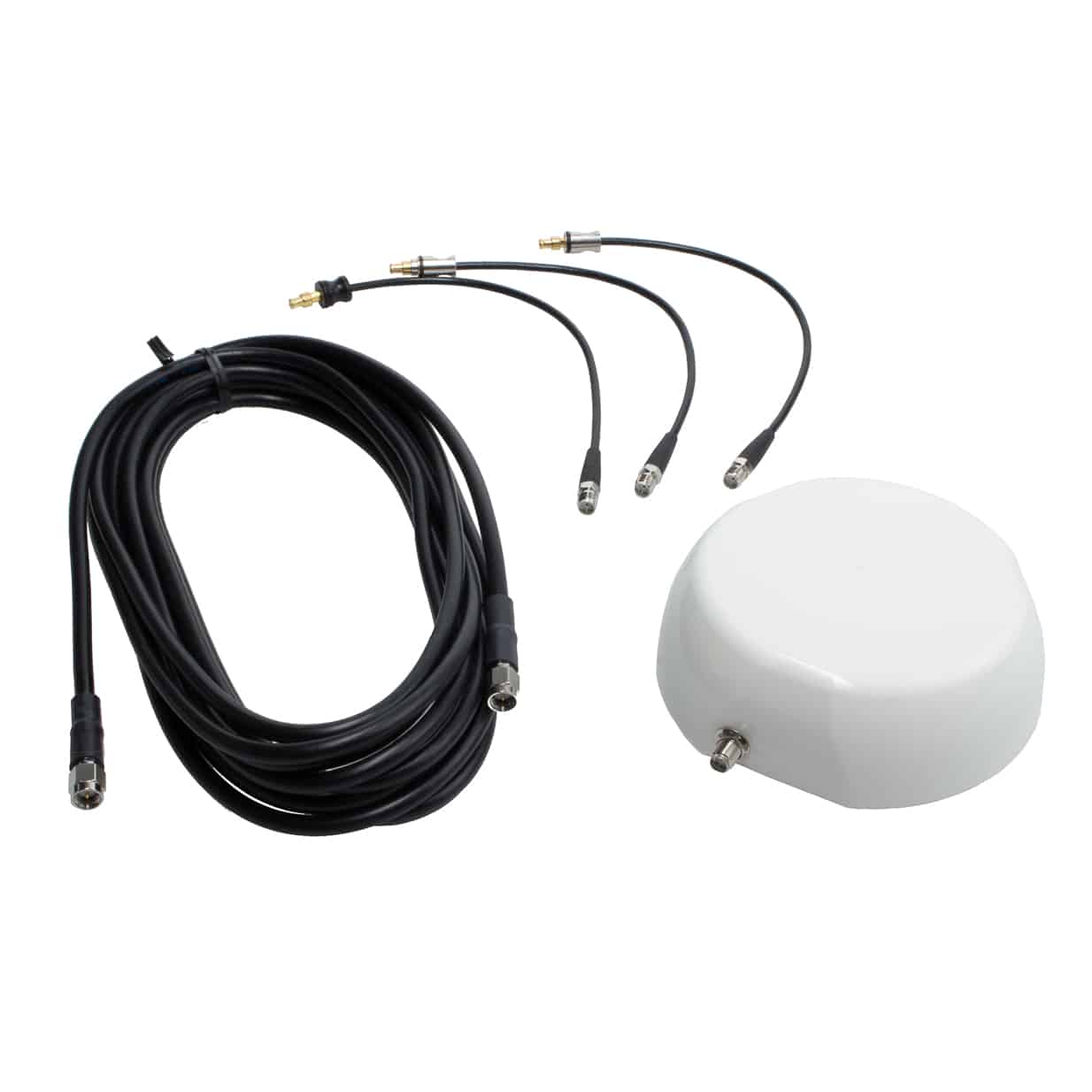

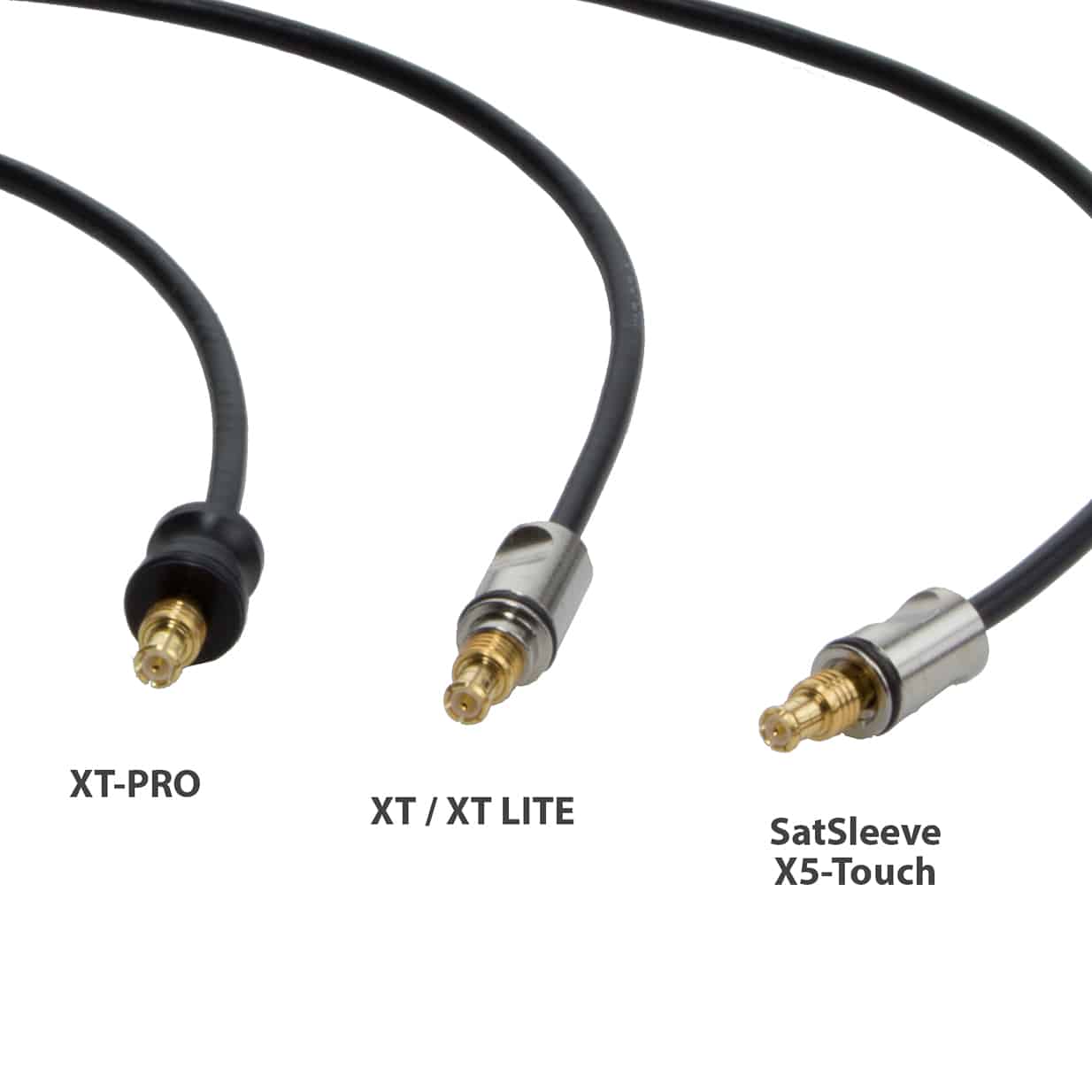

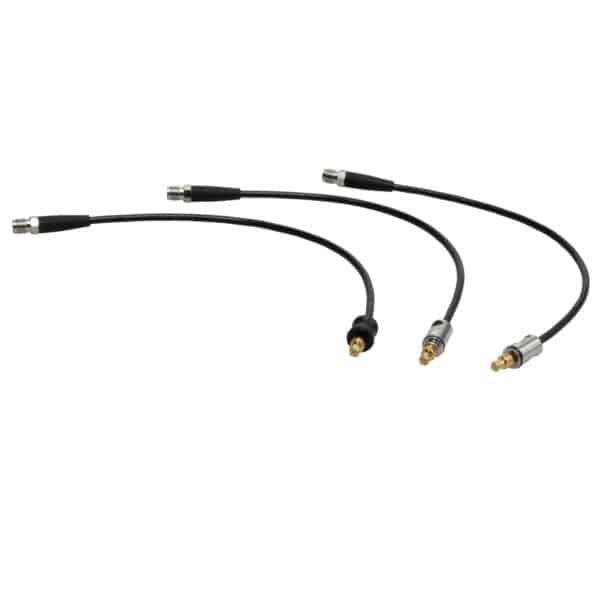

This antenna is compatible with the Thuraya XT, XT-Lite, XT-Pro, X5-Touch and all Thuraya SatSleeve models. The kit is complete and includes adapters for the XT, XT-Lite, XT-Pro, X5-Touch and SatSleeve phones and 5m extension cable. The antenna adapter fits also to the XT-Pro-Dual but the antenna only gives the Thuraya signal to the phone.
• Weight: 200g
• Frequency: 1525 – 1660.5 MHz
• Impedance: 50 ohm
• Polarisation: LHCP
• Axial ratio: < 6 dB
• Gain: 4 dBic
• Operating temperature: -40C to +70C
• Ingress Protection: IP66
• Connector: SMAf (Antenna)
• Diameter: Ø 111 mm
• Mounting: Magnetic
• Heigh Above Roof: 36.5mm
