External Thuraya Antenne (Marine)

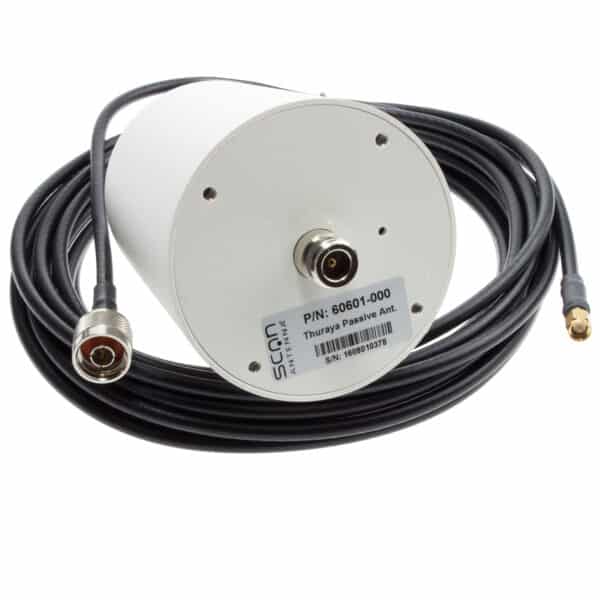

The Thuraya external Antenna is a passive outdoor mounted antenna which can be connected directly to Thuraya’s handsets or hotspots and enable satellite connectivity even inside a vehicle. The external system is deployable even without a docking station.

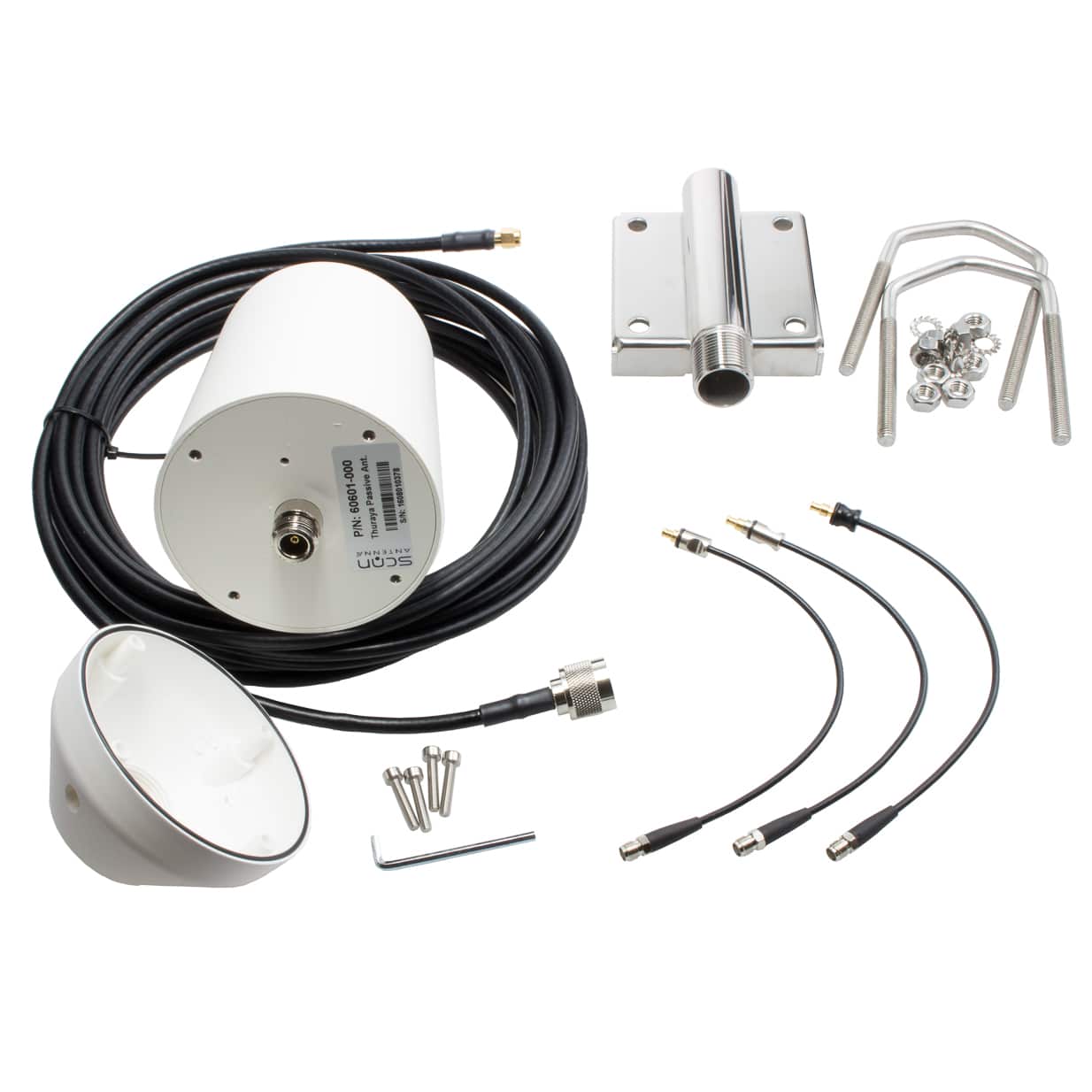

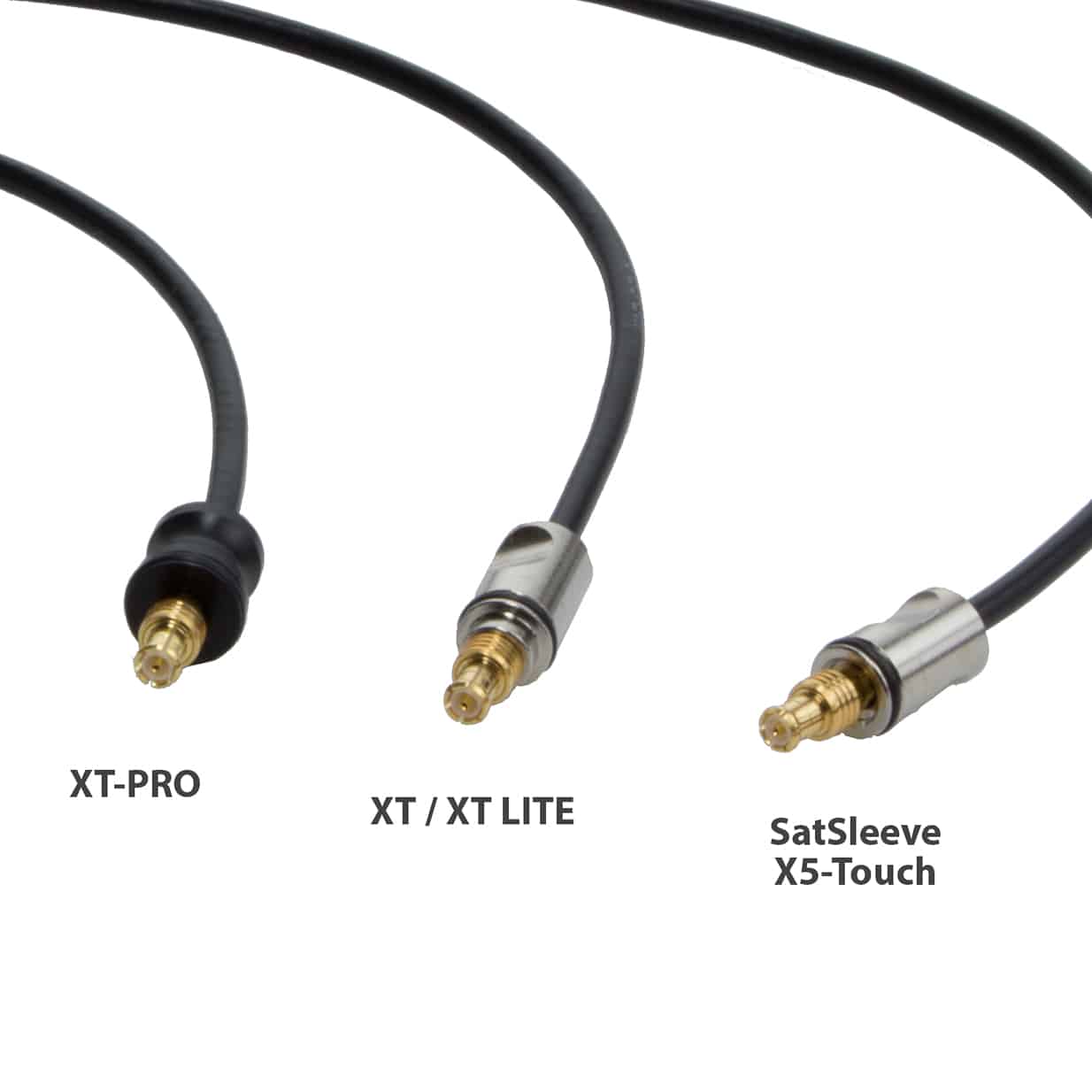

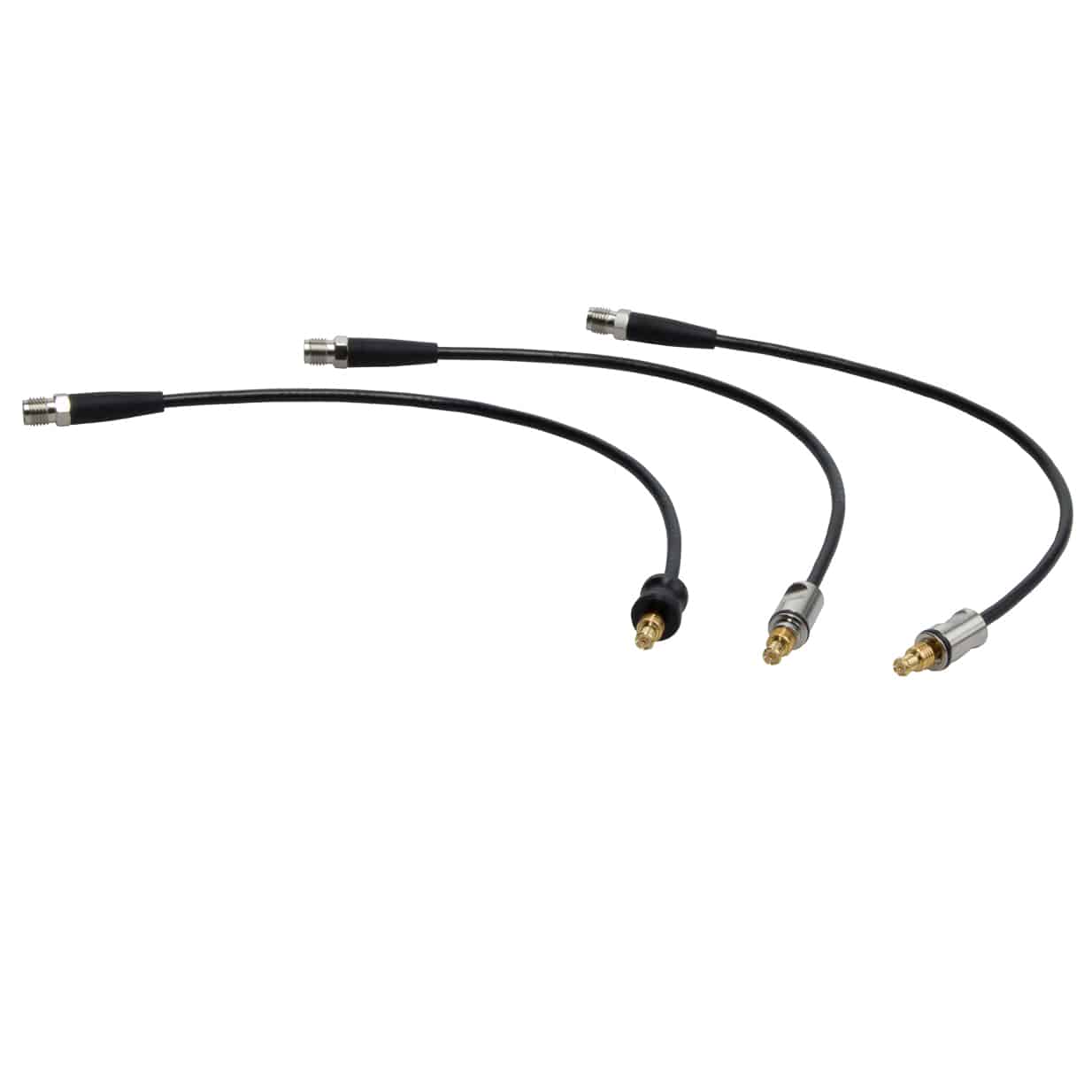

This antenna is compatible with the Thuraya XT, XT-Lite, XT-Pro, X5-Touch and all Thuraya SatSleeve models. The kit is complete and includes adapters for the XT, XT-Lite, XT-Pro, X5-Touch and SatSleeve phones and 8m extension cable. The antenna adapter fits also to the XT-Pro-Dual but the antenna only gives the Thuraya signal to the phone.
Antenna dimensions and weight
- Dimensions Ø 96 mm x 195 mm
- Weight 280 g
Mount kit
- Stainless Steel Mast/Rail Mounting Bracket Kit
Brackets for pole Ø 60 mm max.
Dimensions 130 x 92 x 40 mm, 620 g
Connectors
- Nf (antenna)
Technical specification
- Frequency 1525 – 1660.5 MHz
- Impedance 50 Ohm
- Polarisation LHCP
- Axial ratio < 6 dB
- Gain 4 dBic
Environment
- Operating temperature -40C° to +70C°
- Ingress Protection IP66
