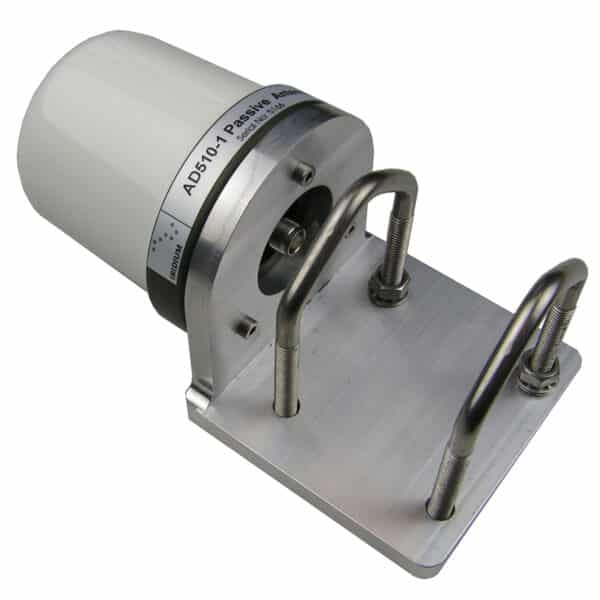

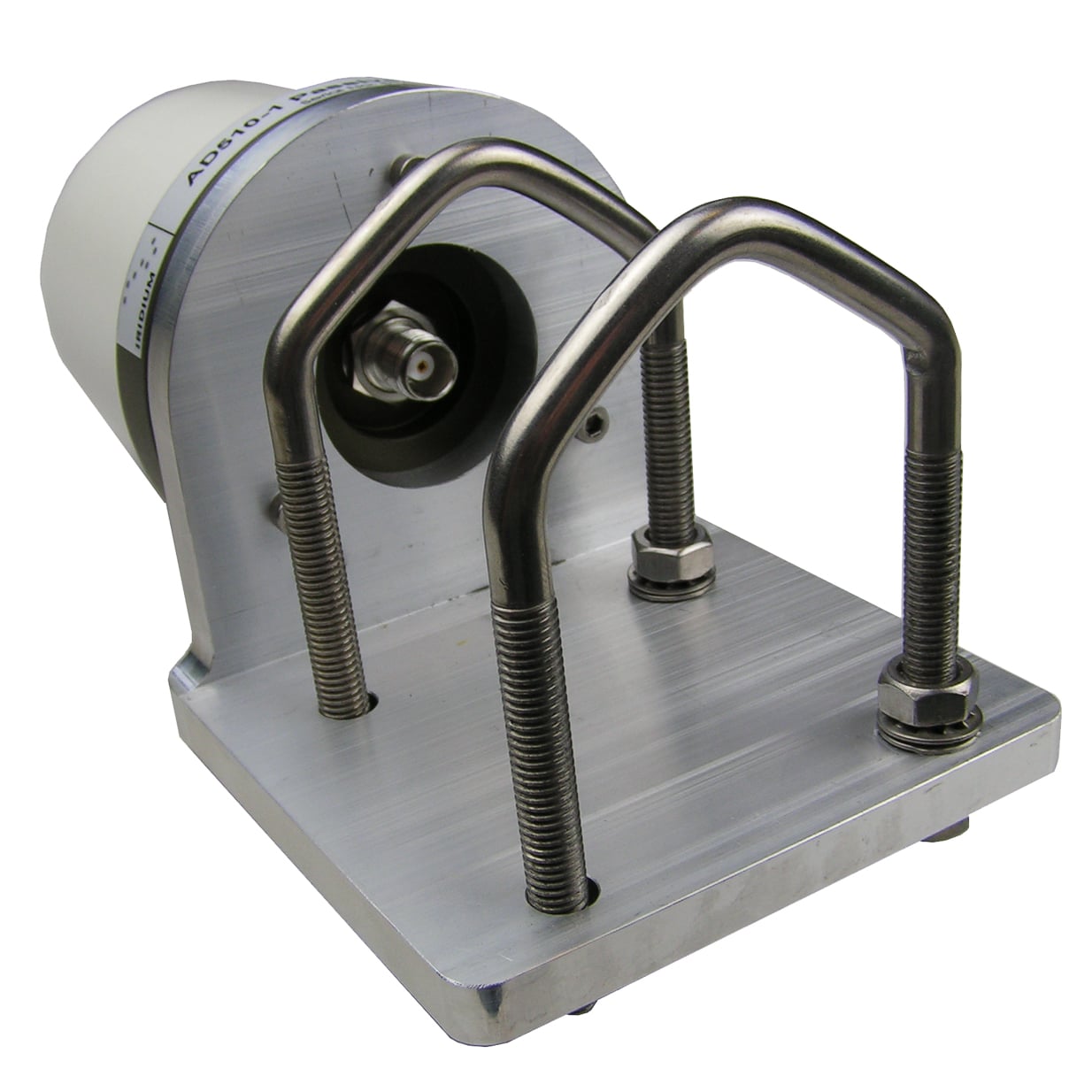

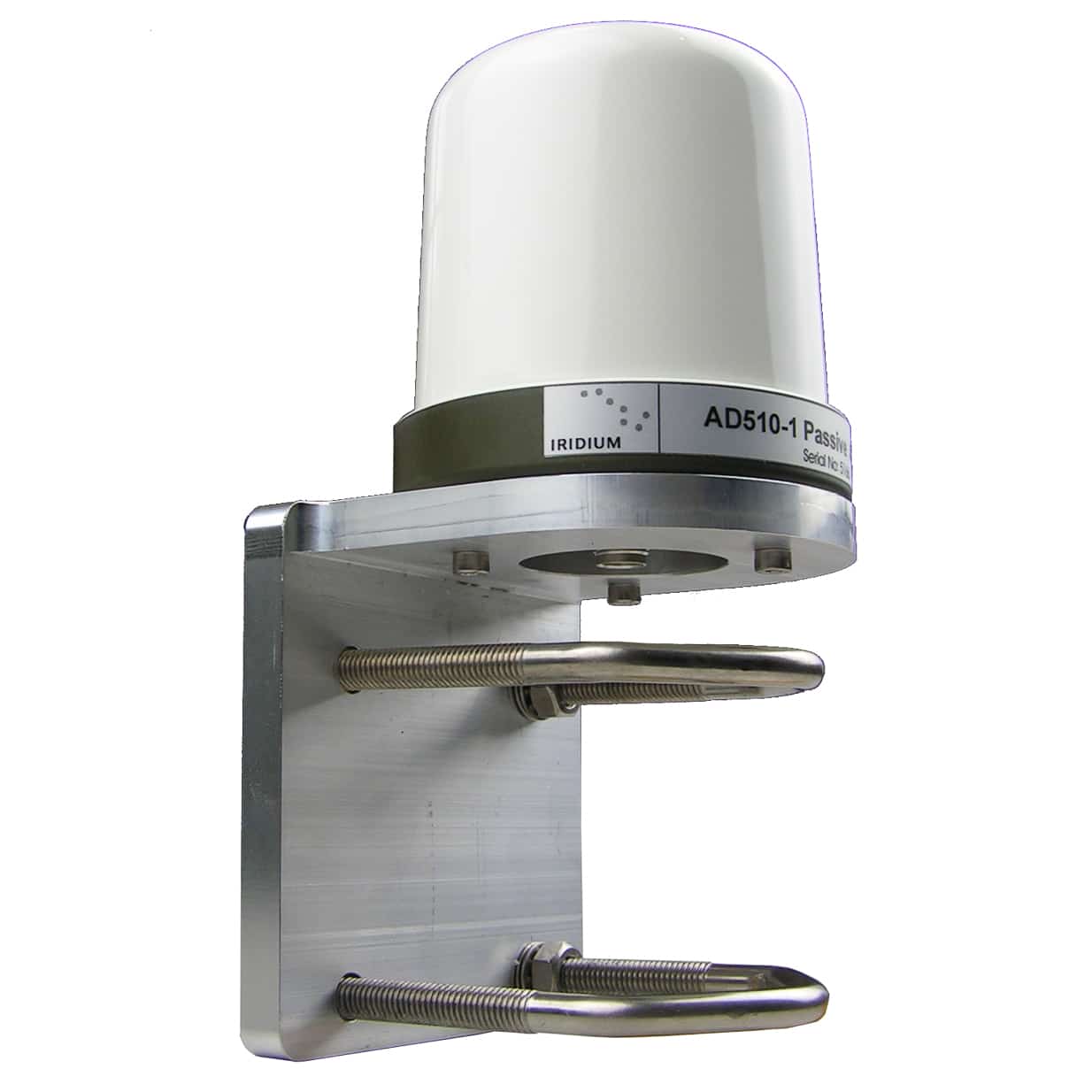

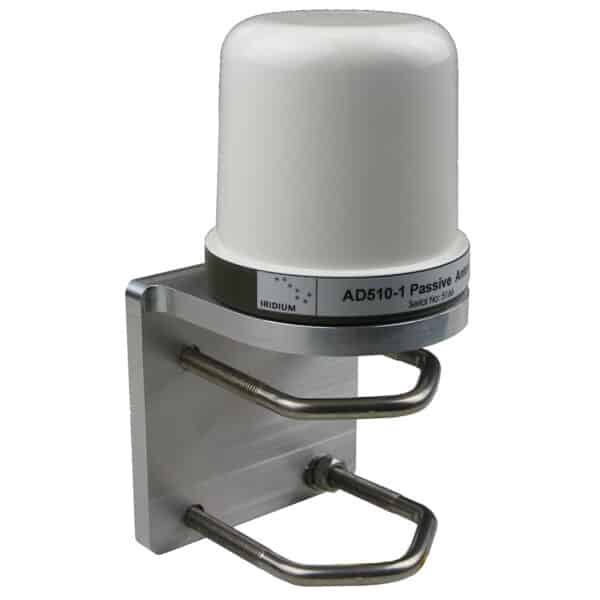

Iridium Passive Antenna AD510-1 TNCf
with bracket mounting made of Heavy Duty Marine Aluminium Alloy,
Dimensions and weight
- Ø 8.7 cm x 10 cm
- Weight incl bracket 1000 g
Technical specifications
- Operating Temperature -40°C to +85°C
- Connector TNC female
- Impedanz 50 Ohm
- VSWR less than 2:1
- Frequency 1616 – 1625.5 MHz
- Polarisation RHCP
