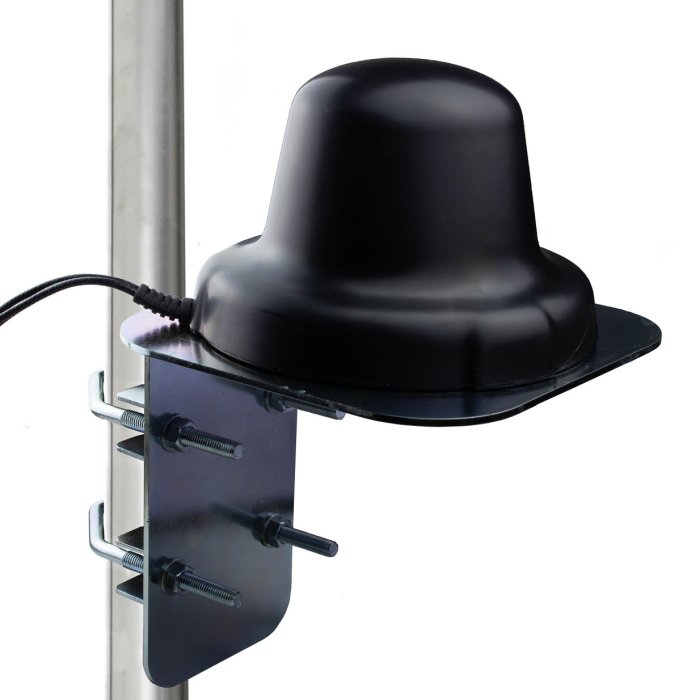

Thuraya antenna Hemi Omni bracket mount
3 in 1 antenna: GSM, SAT, GPS, compatible to any Thuraya dockers.
General specifications:
- Operational temperature: -40°C to +80°C
- Diameter: 165 mm
- Height: 105 mm
- Weight: 0.55 kg
- Color: Black
- IP Rating: IP-65

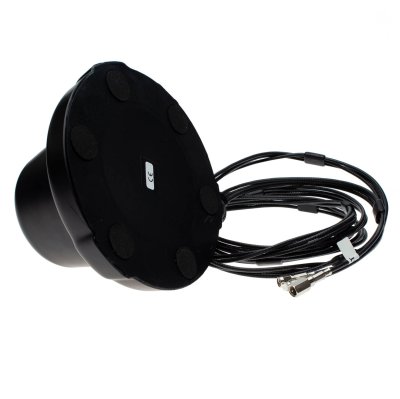

- Mounting: magnetic (standard version)
SAT:
- Frequency: 1.525-1.6605 GHz
- Antenna Gain: 1-3.5 dBi
- Polarization: Left Hand Circular
- Beamwidth: 360o (Az) x 163o (El)
- Axial ratio: 5dB
- VSWR: 2:1
- Power rating: 20W
- Connector: FME male
GPS:
- RHCP Patch antenna
- Frequency: 1575.42 MHz
- Gain: 20 dB
- NF: 1.2 dB
- Power consumption: 0.1 W
- Power supply: 5V
- Connector: SMA male
GSM:
- Frequency: 850/900/1800/1900 MHz
- Conector: FME Female
- Delivery content:

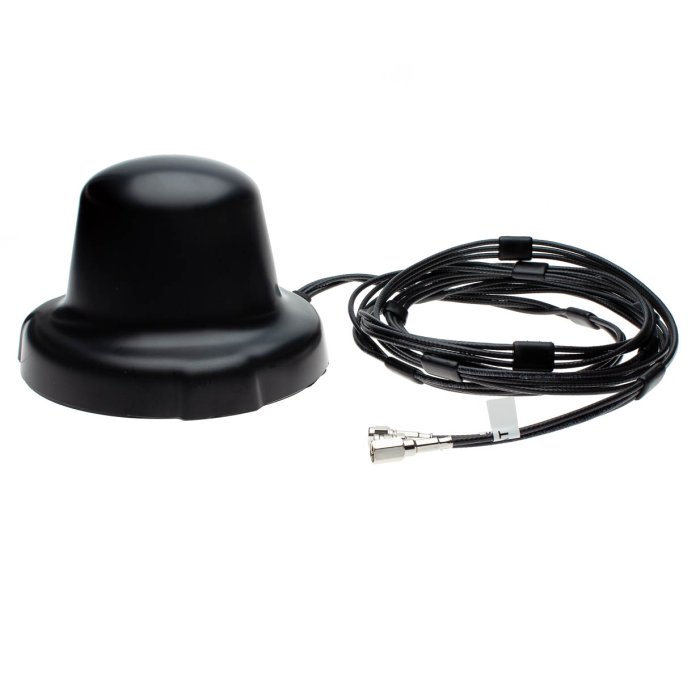

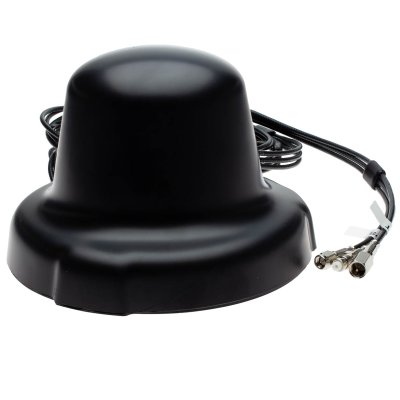

- GSM, SAT, GPS antenna for Thuraya docker incl. 3m antenna cable
Additional accessories:
